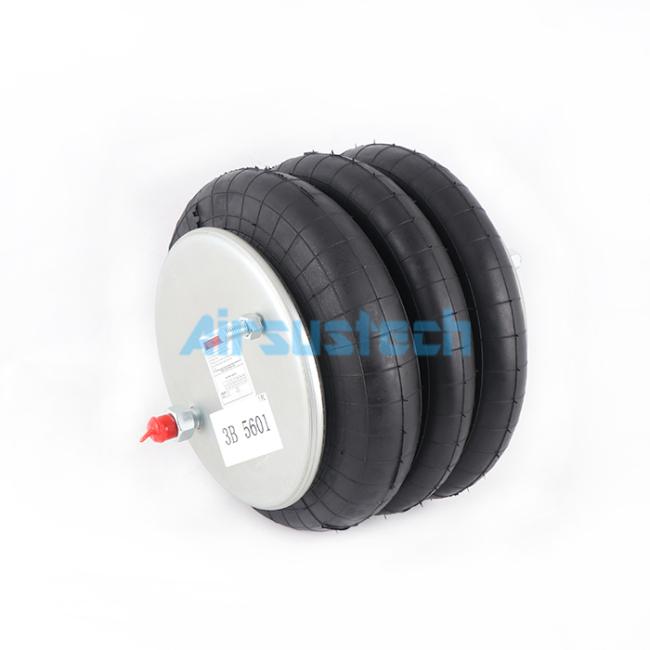

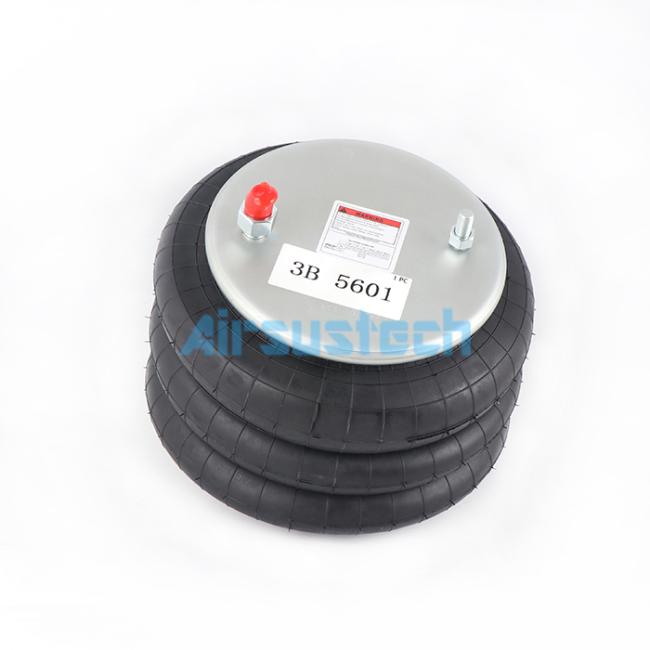

Universal Firestone Industrial Rubber Air Spring W01-358-7996 Truck Air Suspension
Universal Firestone Industrial Rubber Air Spring W01-358-7996 Truck Air Suspension
Product Specification
| Diameter of the Top Cover Plate | 231 mm |
| Center-to-Center Distance of Screws on the Top Cover Plate | 157.5 mm |
| Diameter of the Bottom Cover Plate | 231 mm |
| Center-to-Center Distance of Screws on the Bottom Cover Plate | 157.5 mm |
| Screw (Nut) Thread Count for the Top Cover Plate | M12×1.75 |
| Screw (Nut) Thread Count for the Bottom Cover Plate | M12×1.75 |
| Pneumatic Connection | 1/4NPTF |
| Max Diameter of the Rubber Bellow | 330 mm |
| Maximum Height | 460 mm |
| Minimum Height | 117 mm |
Manufacturer Part Number
Firestone OEM Manufacturer: W01-358-7996
Firestone OEM Manufacturer: W013587996
Firestone OEM Manufacturer: W01 358 7996
Firestone OEM Manufacturer: W01-358-7938
Firestone OEM Manufacturer: W013587938
Firestone OEM Manufacturer: W01 358 7938
Contitech OEM Manufacturer: FT 330-29 520
Contitech OEM Manufacturer: FT 33029 520
Contitech OEM Manufacturer: FT 330 29 520
Contitech OEM Manufacturer: FT330-29 520
Contitech OEM Manufacturer: FT33029 520
Contitech OEM Manufacturer: FT330 29 520
Goodyear OEM Manufacturer: 3B12-335
Goodyear OEM Manufacturer: 3B12335
Goodyear OEM Manufacturer: 3B12 335
Goodyear OEM Manufacturer: 3B 12-335
Goodyear OEM Manufacturer: 3B 12335
Goodyear OEM Manufacturer: 3B 12 335
Goodyear Bellows NO. 578933100
Triangle OEM Manufacturer: 6334/4520
Granning/Tuthill OEM Manufacturer: 8221
Rubber Bellows’ Application Fields
- Moulding sytems in foundry
- Replacement of steel springs
- Industrial suspension systems
- Textile machinery
- Paper mill machinery
- Vibrating machinery
- Presses and forges
- Anti-vibrating isolators for Machinery, Compensators, Weight equipment
- Lifting tables
