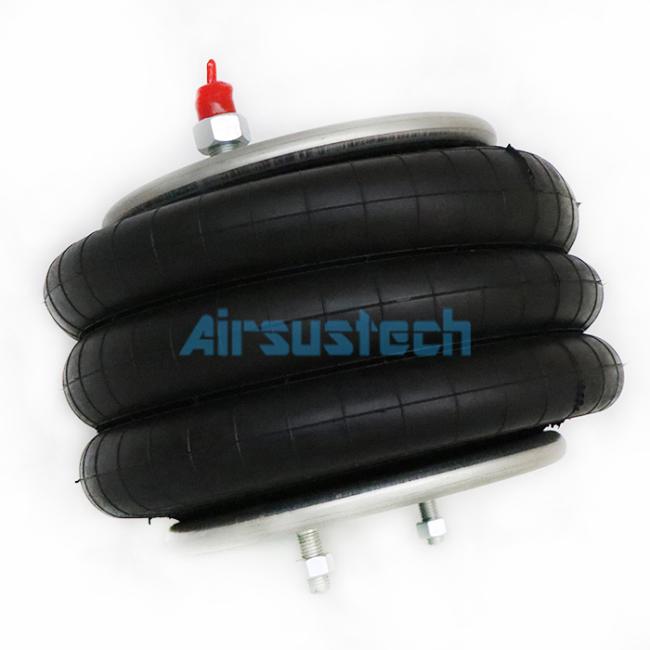

Contitech FT 330-29 520 Triple Convoluted Pneumatic Rubber Air Bag Manufacturer

Contitech FT 330-29 520 Triple Convoluted Pneumatic Rubber Air Bag Manufacturer

Product Introduction

AIRSUSTECH bellows are corrugated, flexible bodies made of high-quality materials. A reinforcing fabric layer is inserted between the inner and outer rubber cover layers and bonded by vulcanization over a steel wire bead to form a single-, double-, or triple-layer corrugated tube body with a center ring between each corrugated layer.

Product Specification

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Air Connection: 1/4-18 NPTF

Bolt/Stud Type: 3/4-16 UNF
Maximum Diameter: 12.80 inches
Number of Convolutions: 3
Working Stroke: 14.4 inches
Operation: gas filled
Materials - Body: natural rubber
Dimensions - Min. Height: 4.50 inches
Dimensions - Max. Height: 18.90 inches

Center to Center Diameter: 6.20 inches
Country of Origin: China

Alternativer Models

The Advantages of AIRSUSTECH Air Bags

1. 100 % precision fit
2. Precisely referenced
3. High-quality articles
4. Tested to ISO standards
5. Standardized box for optimized logistics
6. Available worldwide
