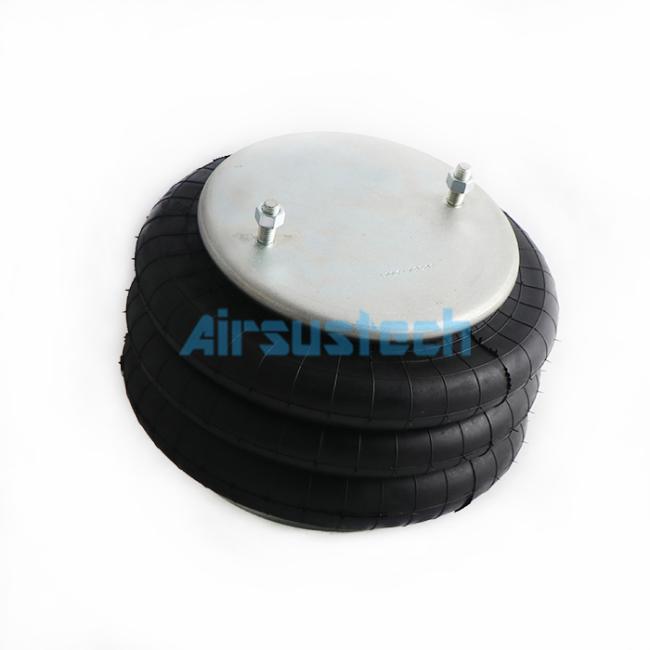

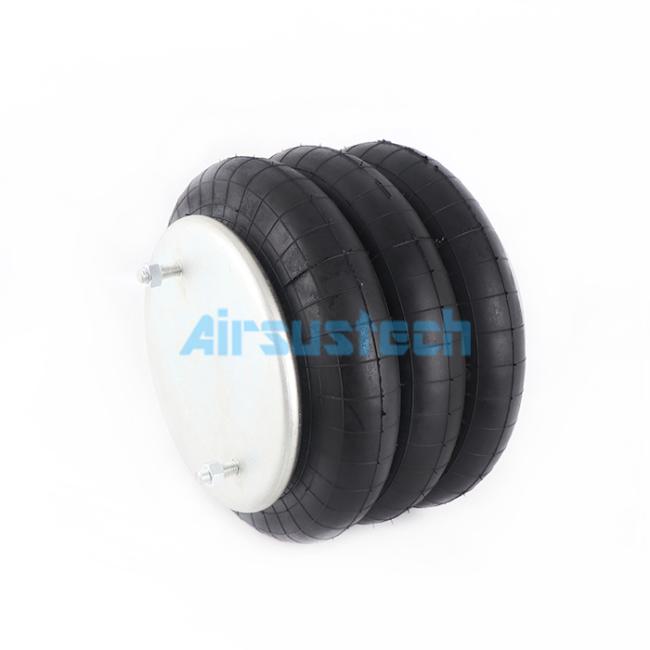

AIRSUSTECH 3B5601 Air Spring Cross Goodyear 3B12-335 Convoluted Rubber Bellows
AIRSUSTECH 3B5601 Air Spring Cross Goodyear 3B12-335 Convoluted Rubber Bellows
Product Detailed Datas
| Compressed Height | 4.5 inches |
| Extended Height | 18.0 inches |
| Top Cover Plate Diameter | 9.00 inches |
| Distance Between Air Hole and Screw | 6.20 inches |
| Bottom Cover Plate Diameter | 9.00 inches |
| Air Fitting | 1/4NPTF |
| Screw Type | 3/8-16UNC |
OEM Cross References
| Goodyear Air Spring |
3B12-335 / 3B12335 / 3B12 335 3B 12-335 / 3B 12335 / 3B 12 335 |
| Goodyear Bellows NO. | 578-93-3-100 / 578933100 / 578 93 3 100 |
| Firestone Air Spring |
W01-358-7996 / W013587996 / W01 358 7996 WO1-358-7996 / WO13587996 / WO1 358 7996 |
| Contitech Air Spring |
FT 330-29 520 / FT 33029 520 / FT 330 29 520 FT330-29 520 / FT33029 520 / FT330 29 520 |
| Triangle Air Spring | 6334 / 4520 |
| Granning/Tuthill Air Spring | 8221 |
What Are the Different Types of Air Springs?
Do different applications have different requirements? AIRSUSTECH air springs are available in numerous styles and sizes to effectively meet different load capacity, application, conditions, and durability requirements. Our team can help you choose from a range of intelligently engineered and simply designed products, including:
- Convoluted type: Also known as a convoluted bellow, this product is commonly used in various applications such as vehicle suspensions, industrial machinery, and agricultural equipment. Its flexible, accordion-like design provides excellent load support and vibration isolation.
- Sleeve type: This product type is cylindrical with a single rubber sleeve. They are commonly used in commercial vehicles such as trucks and buses, as well as in industrial applications. The telescopic design ensures a smooth ride and reliable load support.
- Complete type: These products are similar to sleeve products but have a multi-layer construction. This design increases load capacity and durability. They are commonly used in heavy-duty truck suspensions and other applications where high load capacity is required.
We Have Other Triple Convoluted Goodyear Rubber Air Bags Replacements
| Part Number | Usable Stroke | Max Dia. @ 100 psi In | Min Height Inches | Max Height Inches | Bumper |
| 3B12-305 | 13.3 | 13 | 4.7 | 18 | NO |
| 3B14-351 | 10.9 | 15.5 | 7.3 | 18.2 | YES |
| 3B14-353 | 10.9 | 15.5 | 7.3 | 18.2 | NO |
| 3B14-354 | 13.5 | 15.5 | 4.7 | 18.2 | NO |
| 3B14-361 | 13.5 | 15.5 | 4.7 | 18.2 | NO |
| 3B15-375 | 12.3 | 16.5 | 4.7 | 17.0 | NO |
| 3B15-376 | 9.7 | 16.5 | 7.3 | 17.0 | YES |
| 3B15-377 | 12.3 | 16.5 | 4.7 | 17.0 | NO |
| 3B15-378 | 9.7 | 16.5 | 7.3 | 17.0 | YES |
