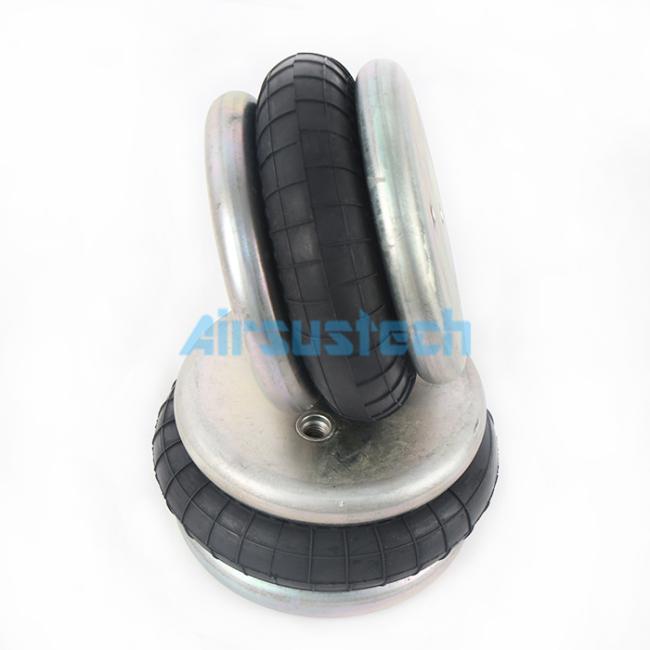

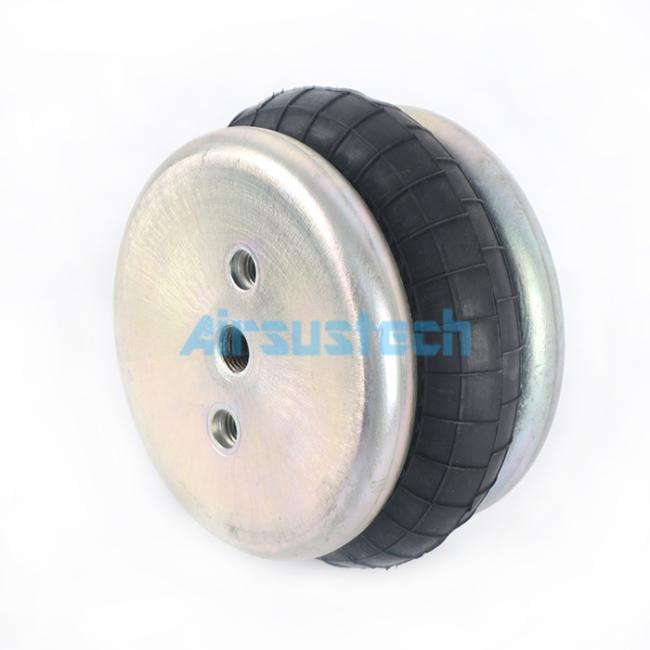

M10 Screw Rubber Air Spring Contitech FS 50-5 Industrial Pneumatic Air Actuator
M10 Screw Rubber Air Spring Contitech FS 50-5 Industrial Pneumatic Air Actuator
Product Specifications and Technical Data Sheet
Diameter of the Top Cover Plate: 114 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 44.5 mm
Diameter of the Bottom Cover Plate: 114 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 44.5 mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×M10×1.5
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M10×1.5
Air Inlet: G1/4
Max Diameter of the Rubber Bellow: 145 mm
Design Height: 70 mm
Maximum Height: 100 mm
Minimum Height: 50 mm
| Load (kg) | Installation Height | Inflation Pressure | 0.2 MPa | 0.3 MPa | 0.4 MPa | 0.5 MPa | 0.6 MPa | 0.7 MPa | 0.8 MPa | Volume at 0.7MPa (dm3) |
| 53 | (mm) | 230 | 341 | 448 | 559 | 681 | 793 | 915 | 0.339 | |
| 66 | (mm) | 180 | 277 | 366 | 468 | 560 | 656 | 750 | 0.523 | |
| 70 | (mm) | 159 | 251 | 337 | 422 | 511 | 601 | 750 | 0.523 | |
| 79 | (mm) | 146 | 225 | 297 | 369 | 438 | 519 | 587 | 0.623 | |
| 83 | (mm) | 120 | 177 | 253 | 294 | 357 | 417 | 489 | 0.629 | |
| 92 | (mm) | 69 | 103 | 138 | 174 | 214 | 253 | 296 | 0.688 | |
| Stiffness and Frequency at Design Height |
Vertical Stiffness | (Kg/cm) | 90 | 128 | 165 | 206 | 248 | 290 | 304 | |
| Natural Frequency | Hz | 3.78 | 6.58 | 3.5 | 3.49 | 3.49 | 3.48 | 3.32 | ||
| cpm | 227 | 215 | 210 | 209 | 209 | 209 | 199 |
OEM Manufacturer
|
Contitech OEM Manufacturer FS 50-5 Contitech OEM Manufacturer FS 505 Contitech OEM Manufacturer FS 50 5 Contitech OEM Manufacturer FS50-5 Contitech OEM Manufacturer FS505 Contitech OEM Manufacturer FS50 5 |
|
Firestone OEM Manufacturer W01-M58-6140 Firestone OEM Manufacturer W01M586140 Firestone OEM Manufacturer W01 M58 6140 Firestone OEM Manufacturer WO1-M58-6140 Firestone OEM Manufacturer WO1M586140 Firestone OEM Manufacturer WO1 M58 6140 |
| AIRSUSTECH OEM Manufacturer 1B130070 |
Product Applications
- Precision measuring equipment: Electron microscope, optical microscope, 3D measuring instrument, roughness meter, hardness meter, etc.
- Manufacturing equipment: LCD and semiconductor Assembly & FAB Equipment
- Inspection equipment: LCD, semiconductor, PCB, film
- Precision processing equipment: Laser, Jig Boring Machine, CNC Grinding Machine
- Testing equipment related to automobile parts
- Tension and press equipment: Belt tension, lifter, packing, molding, paper
- Dustproofing of industrial equipment: Air conditioners, pumps, hydraulic equipment, cooling towers, double floors
- Industrial vibrators: Concrete fume pipes, construction equipment, vibrating screens
We Have Other Single Convoluted Air Shock Suspensions
| Product Number | Nonimal Diameter (mm) | 0.7Mpa Max.Diameter | Load at Design Height | 0.7Mpa Natural Frequency |
Stroke Range | |||
| 0.2Mpa | 0.5MPa | 0.7Mpa | Min. Height | Max. Height | ||||
| 1B130070 | 100 | 142 | 159 | 422 | 601 | 3.48 | 53 | 83 |
| 1B150086 | 106 | 160 | 149 | 395 | 566 | 3.42 | 55 | 100 |
| 1B188130 | 120 | 210 | 167 | 438 | 636 | 3.25 | 55 | 149 |
| 1B215128 | 125 | 230 | 287 | 760 | 1071 | 3.19 | 55 | 145 |
| 1B235118 | 180 | 255 | 474 | 1185 | 1684 | 2.52 | 60 | 136 |
| 1B235150 | 180 | 255 | 441 | 1205 | 1740 | 2.29 | 65 | 172 |
| 1B260135 | 170 | 280 | 425 | 1150 | 1670 | 2.4 | 55 | 155 |
| 1B300110 | 240 | 320 | 780 | 2122 | 3108 | 2.2 | 55 | 130 |
| 1B300130 | 240 | 320 | 798 | 2130 | 3103 | 2.08 | 60 | 150 |
| 1B320128 | 230 | 350 | 845 | 2376 | 3120 | 2.2 | 65 | 145 |
| 1B360140 | 280 | 380 | 880 | 2500 | 3870 | 1.95 | 65 | 160 |
| 1B380150 | 300 | 405 | 1323 | 3448 | 4907 | 1.94 | 65 | 175 |
