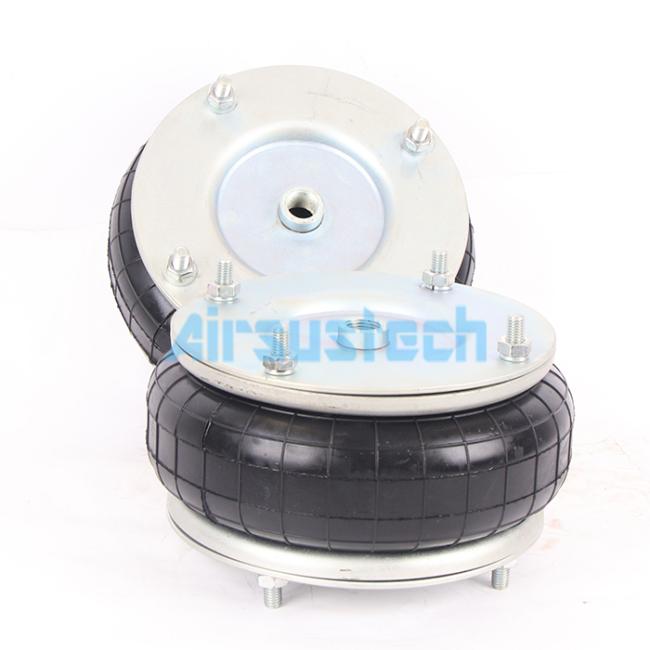

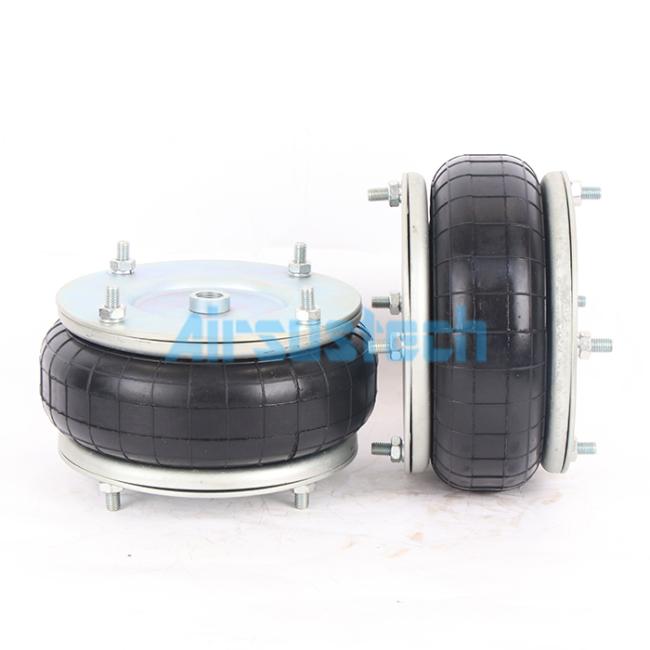

Dunlop Springride SP2523 Single Convoluted Rubber Air Bag with Flange Connection

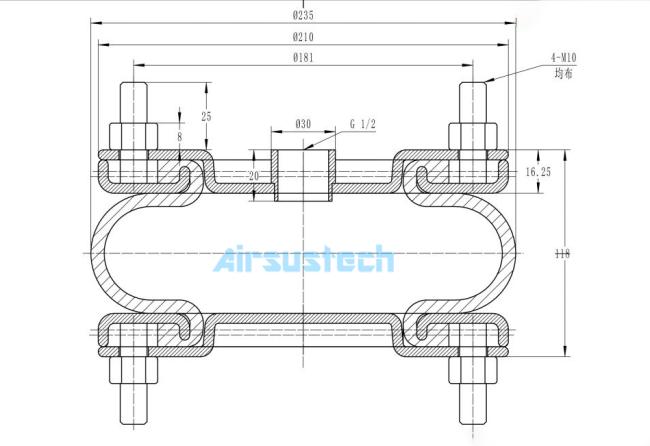

Product Specifications

Dimensions - Static Height: 118 mm

Dimensions - Natural Diameter: 235 mm

Dimensions - Cover Plate Width: 210 mm

Dimensions - Center to Center Diameter: 181 mm

Dimensions - Screw Length: 25 mm

Air Inlet Standard: G1/2

Screw Type: 4-M10

Corresponding International Mode

The Function of Flange Connection Rubber Air Bags

Flange connection air springs utilize the compression and expansion of a rubber bladder to absorb shock and vibration. When a load is applied, the internal air pressure adjusts to the weight, allowing the air spring to maintain a stable height and effectively isolate vibrations from external sources. Its design features sealed end plates and requires no additional components for easy installation. This construction provides excellent shock and impact absorption for increased comfort and safety. These air springs are ideal for use in a wide variety of machinery and vehicles, offering reliable performance in a wide range of applications.
