Triple Compact Air Spring Dunlop Pneuride 8''×3 Pneumatic Air Suspension System
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description

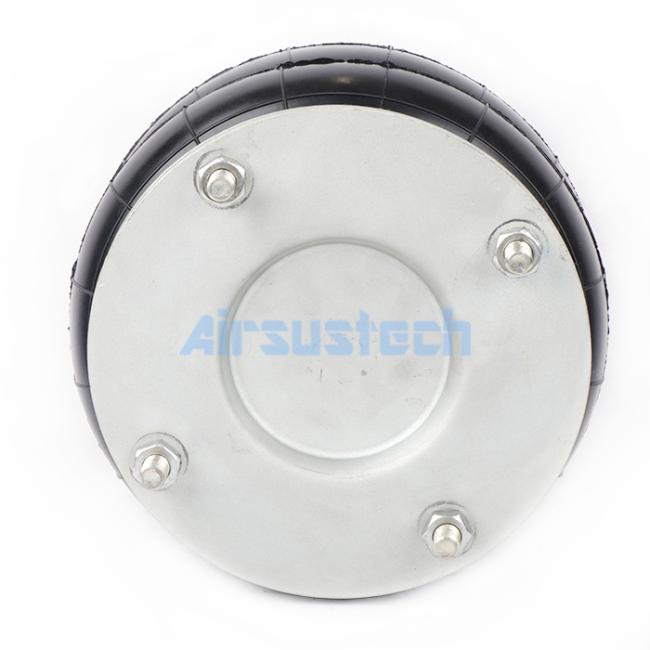

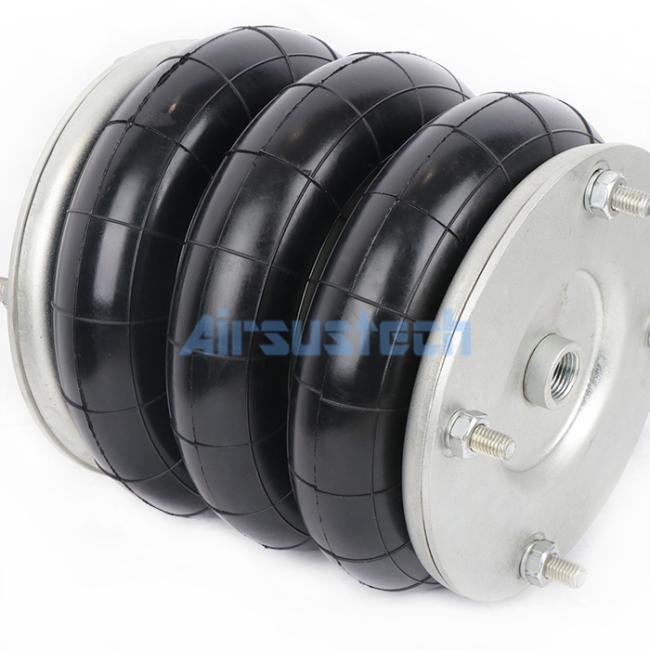

Triple Compact Air Spring Dunlop Pneuride 8''×3 Pneumatic Air Suspension System
Product Dimensions
| Dimensions - Compressed Height | 115 mm |
| Dimensions - Natural Diameter | 203 mm |
| Dimensions - Screw Length | 27 mm |
| Dimensions - Cover Plate Width | 184 mm |
| Dimensions - Center to Center Diameter | 156 mm |
| Air Connection | 1/2BSP |
| Screw Type | 4×M10×1.5 |
Corresponding International Models
| Original Manufacturer | Part Number |
| AIRSUSTECH | 3B8×3T |
| Dunlop Pneuride | 8''×3, 8'×3, 8×3 |
| Firestone |
W01-R58-4056, W01R584056, W01 R58 4056 WO1-R58-4056, WO1R584056, WO1 R58 4056 |
| Dunlop Springride | SP2863, SP 2863, SP 28 63 |
| Contitech | FT 138-26 DS, FT 13826 DS, FT 138 26 DS |
| Norgren | M/31083, M31083, M 31083 |
| Parker | 9109017 |
Precautions for Installing Air Springs
- Air springs must not be pressurised unless they are restricted by an outside frame or by a suitable load.
- Strokes must be limited by the direct use of bump stops or external stops. When stacking air suspensions, special cares must be taken to ensure the air springs are guided and fixed.
- An Air bag is a single acting air actuator and must not be used below atmospheric pressure.
- Please check the overpressure in case of quick compression.
We Have Other Air Shock Suspensions Replacements to Firestone Air Bags
| W01-R58-9881 | W01-R58-4037 | W01-R58-4073 |
| W01-R58-8106 | W01-R58-4050 | W01-R58-4058 |
| W01-R58-8107 | W01-R58-4051 | W01-R58-4057 |
| W01-R58-6339 | W01-R58-4045 | W01-R58-4081 |
| W01-R58-7370 | W01-R58-4055 | W01-R58-4078 |
| W01-R58-8601 | W01-R58-4048 | W01-R58-4070 |
| W01-R58-4023 | W01-R58-4044 | W01-R58-4043 |
| W01-R58-4085 | W01-R58-4075 | W01-R58-4046 |
| W01-R58-4052 | W01-R58-4047 | W01-R58-4085 |
| W01-R58-4076 | W01-R58-4057 | W01-R58-4064 |
| W01-R58-4053 | W01-R58-4038 | W01-R58-4063 |
| W01-R58-4092 | W01-R58-4095 | W01-R58-4065 |
| W01-R58-4086 | W01-R58-4056 | W01-R58-4059 |
| W01-R58-4062 | W01-R58-4035 | W01-R58-4058 |
| W01-R58-4054 | W01-R58-4081 | W01-R58-4054 |
| W01-R58-4060 | W01-R58-4078 | W01-R58-4055 |
| W01-R58-4063 | W01-R58-4070 | W01-R58-4056 |
| W01-R58-4074 | W01-R58-4036 | W01-R58-4053 |
