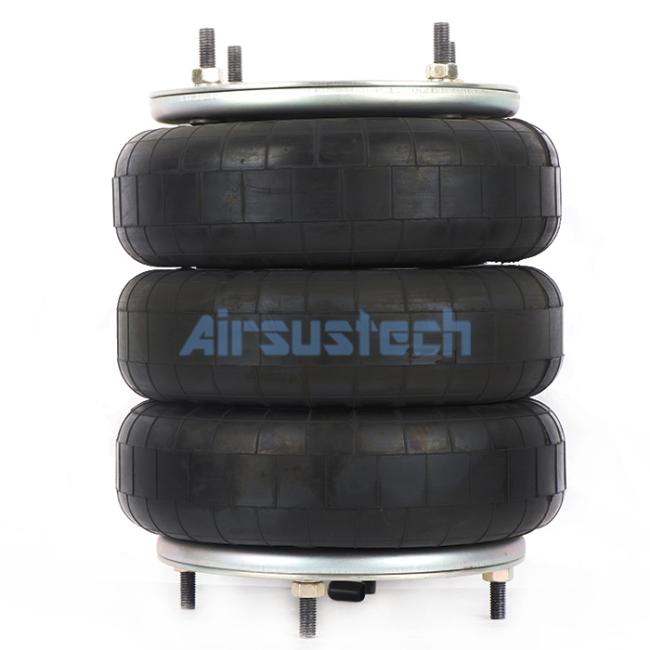

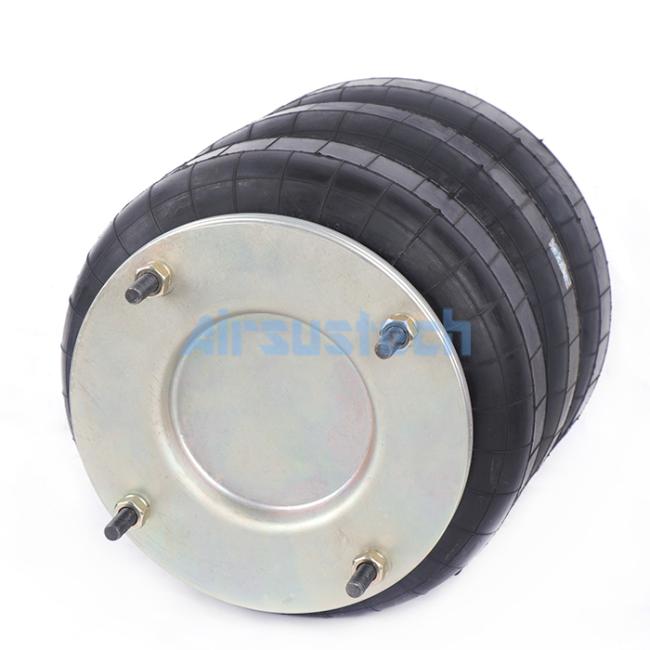

Rubber Air Spring Dunlop Pneuride 10''×3 Pneumatic Air Bellow Actuator for Durability
Guangzhou Rubber Air Spring Dunlop Pneuride 10''×3 Pneumatic Air Bellow Actuator
Product Details
Dimensions - Design Height: 322 mm
Dimensions - Maximum Diameter of Rubber Bellow: 270 mm
Dimensions - Cover Plate Width: 210 mm
Dimensions - C to C Distance Diameter: 180 mm
Gas Hole Standard: ZG1/2''
Screw Type: 4-M10
Superseded Part Numbers
|
Dunlop Pneuride Style: 10''×3 Dunlop Pneuride Style: 10'×3 Dunlop Pneuride Style: 10×3 |
|
Firestone Style: W01-R58-4059 Firestone Style: W01R584059 Firestone Style: W01 R58 4059 |
|
Dunlop Springride Style: SP1539 Dunlop Springride Style: SP 1539 Dunlop Springride Style: SP 15 39 |
|
Contitech Style: FT 210-32 DS Contitech Style: FT 21032 DS Contitech Style: FT 210 32 DS |
|
Norgren Style: M/31103 Norgren Style: M31103 Norgren Style: M 31103 |
| Parker Style: 9109031 |
The Reason Why Choose AIRSUSTECH?
1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.
What is The Air Spring Safety Guidelines?
1. Height Limitations
Maximum Extension: Never exceed recommended extended height to prevent structural stress and premature wear.
Minimum Compression: Avoid operating below specified compressed height to prevent bladder overstretching.
2. Pressure Control
Limit: Maintain pressure ≤0.7 MPa to preserve structural integrity and prevent layer separation.
3. Installation Alignment
Axial Positioning: Install without twisting to ensure even pressure distribution and prevent internal damage.
Failure Prevention: Monitor pressure/position parameters to keep components within elastic deformation range.
We Also Have Other Triple Rubber Air Bags
| Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×3 | SP2910 | FT 22-6 DI | 9109010 | ||
| W01R584035 | 4 1/2''×3 | SP2895 | FT 44-15 DI | PM/31043 | 9109402 |
| 6''×3(Al) | SP2923 | FT 76-20 DS | PM/31063 | 9109007A | |
| W01R584095 | 6''×3(Steel) | SP2861 | FT 138-26 DS | M/31063 | 9109007 |
| W01R584056 | 8''×3 | SP2863 | FT 138-26 DS | M/31083 | 9109017 |
| W01R584059 | 10''×3 | SP1539 | FT 210-32 DS | M/31103 | 9109031 |
| W01R584062 | 12''×3 | SP1542 | FT 412-32 DS | M/31123 | 9109051 |
| W01R584065 | 14 1/2''×3 | SP1558 | FT 614-36 DS | M/31143 | 9109069 |
| W01R584068 | 16''×3 | SP2141 | FT 816-40 DS | M/31163 | 9109177 |
