1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension

Product Information

Convoluted bellows springs consist of one, two, or three bellows and are suitable for a wide variety of applications and suspension systems. These air springs are suitable for all types of trucks, trailers, and industrial applications. They are available in various load capacities, ride heights, and with various mounting plates.

1B5171 Air Bag Detailed Datas

Operation Principles of AIRSUSTECH Convoluted Air Bellows

Inflation:

1. Compressed air is pumped into the bellows via the inlet valve, causing it to expand vertically.
2. The single convolution allows controlled radial expansion, maintaining a compact profile.

Load Support:

1. The pressurized air inside the bellows creates a "spring" effect, supporting the applied load (e.g., vehicle chassis, machinery).
2. Stiffness is proportional to air pressure: Higher pressure = stiffer spring rate.

Compression:

1. When a load is applied (e.g., hitting a bump), the bellows compresses, reducing its height.
2. The single fold flexes inward, absorbing energy and dampening shocks.

Rebound:

1. As the load decreases, the air pressure pushes the bellows back to its original shape, returning stored energy.

Adjustability:

Air pressure can be dynamically adjusted to:

1. Tune ride height (e.g., leveling a vehicle).
2. Modify stiffness for varying loads or road conditions.

AIRSUSTECH Single Convoluted Rubber Springs Cross Other Air Bags

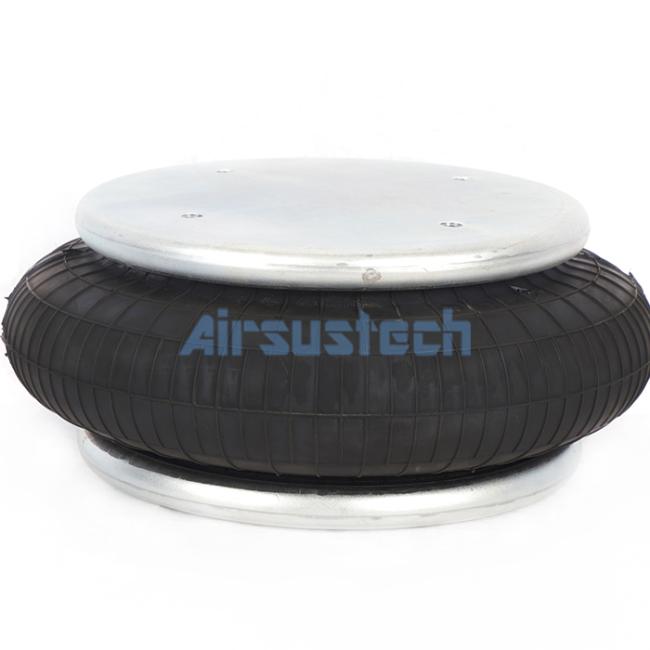

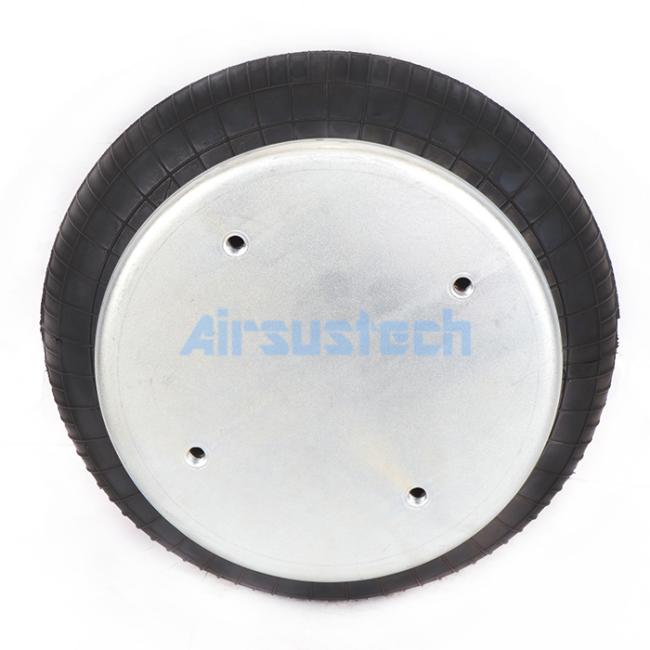

1B5171 Detailed Pictures
