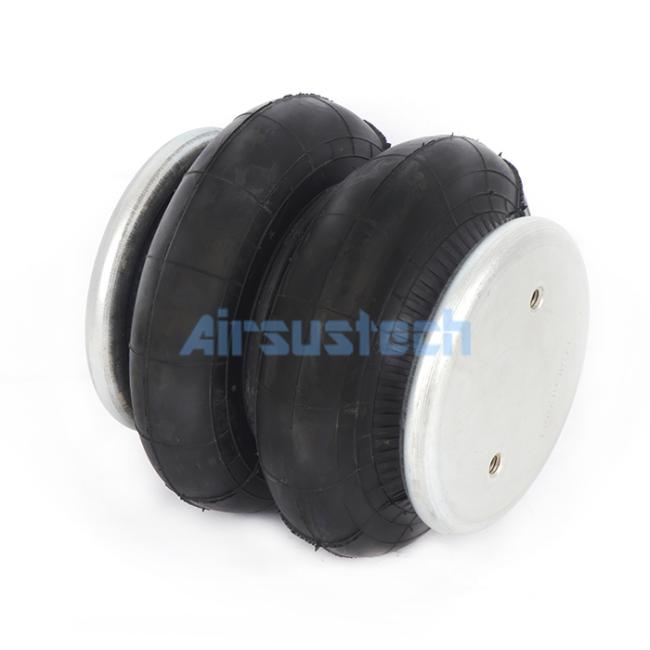

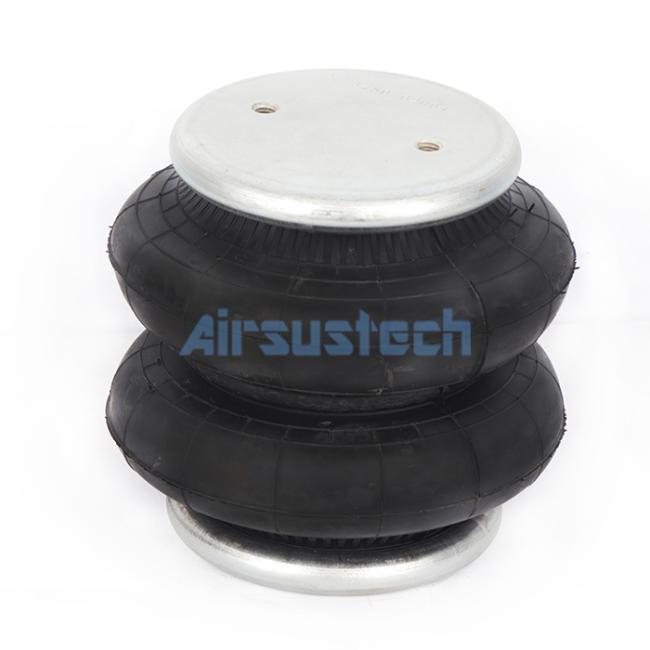

Double Convoluted Industrial Air Spring Goodyear 2B7-540 Rubber Air Shock Absorber

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

Double Convoluted Industrial Air Spring Goodyear 2B7-540 Rubber Air Shock Absorber

Product Description

Cover Plate
Top Cover Plate Diameter	132 mm
Screw Center Distance of Top Cover Plate	70 mm
Bottom Cover Plate Diameter	132 mm
Screw Center Distance of Bottom Cover Plate	70 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth	2×3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth	2×3/8-16UNC
Gas Hole/Air Inlet/Air Fitting
Air Hole	1/4NPTF
Rubber Bellow
Rubber Bellow Max. Diameter	203 mm
Minimum Height	75 mm
Maximum Height	230 mm

OEM Cross References

Goodyear Air Spring: 2B7-540

Goodyear Air Spring: 2B7540

Goodyear Air Spring: 2B7 540

Firestone Air Spring: W01-358-3400

Firestone Air Spring: W013583400

Firestone Air Spring: W01 358 3400

Firestone Air Spring: W01-358-3224

Firestone Air Spring: W013583224

Firestone Air Spring: W01 358 3224
American Carrier Air Spring: 8003-009

American Carrier Air Spring: 8003009

American Carrier Air Spring: 8003 009

Rubber Damage from Chemicals

Grease and oil are common examples that can cause this condition after prolonged contact with the rubber flexible member.
Possible causes:

Excessive oil in the air supply.
Excessive greasing of universal joints.
Excessive greasing of the fifth wheel.
Leaking seals in suspension components.
Use of petroleum based cleaners on the air spring (use only soap and water for cleaning)

We Have Other Rubber Air Springs Cross Goodyear Air Bellows
