Universal Rubber Air Spring 556-2-3-8064 Goodyear Double Convoluted Air Spring

Product Dimensions

Dimensions - Natural Height: 160 mm

Dimensions - Maximum Diameter of Rubber Bellow: 500 mm

Dimensions - Inner Diameter: 335.6 mm

Material: natural rubber

Structure: double convoluted

OEM Cross References

What Are The Applications of Rubber Bellows Only?

1. Paper Machines
GF Series paper machine airbags are widely used in paper machines and perform the following main functions:

• Vibration dampening: They absorb and reduce vibrations caused by fast-moving parts of the paper machine, such as the wet and dry sections. This contributes to better stability and smooth running in the papermaking process and prevents quality defects.
• Load-bearing capacity: They support the weight of various machine parts, such as the press section and dryer rolls, ensuring stable operation and preventing mechanical wear.
• Buffering: They act as a buffer between the mechanical parts of the machine, reducing the effects of mechanical shock and preventing damage to sensitive parts.

2. Printing Machines
GF Series paper machine airbags are also used in printing machines and perform the following functions:

• Vibration dampening: They minimize vibrations from the printing machine, ensuring high-quality printing results and the accuracy of the printing process.
• Pressure roller stabilization: They stabilize the pressure roller, thus improving the uniformity and quality of the printed material.

Other Air Rubber Bellows Springs

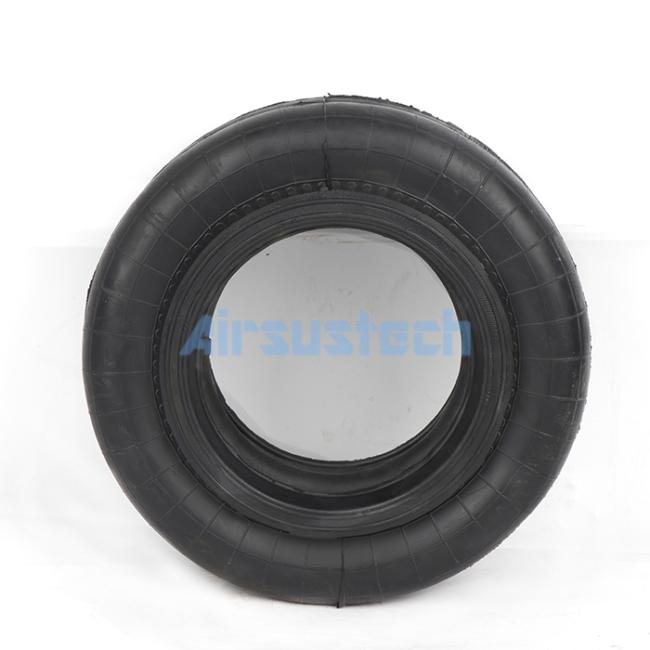

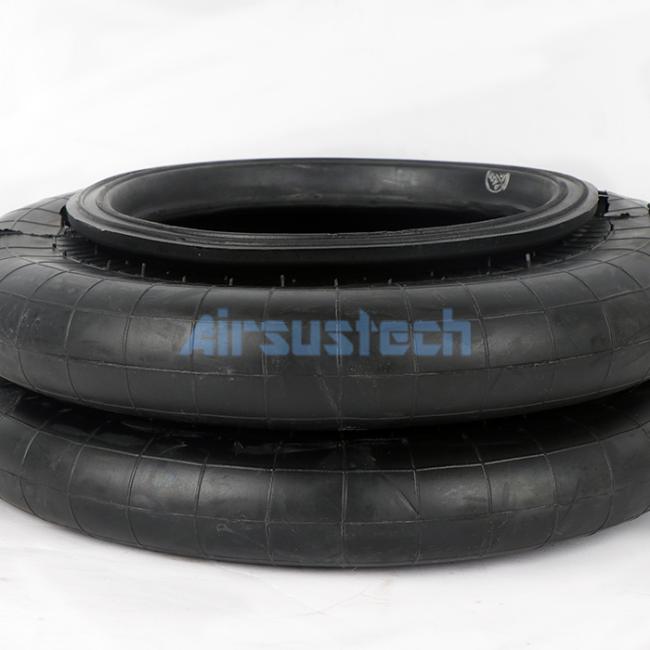

The Detailed Pictures of 2B5296SA
