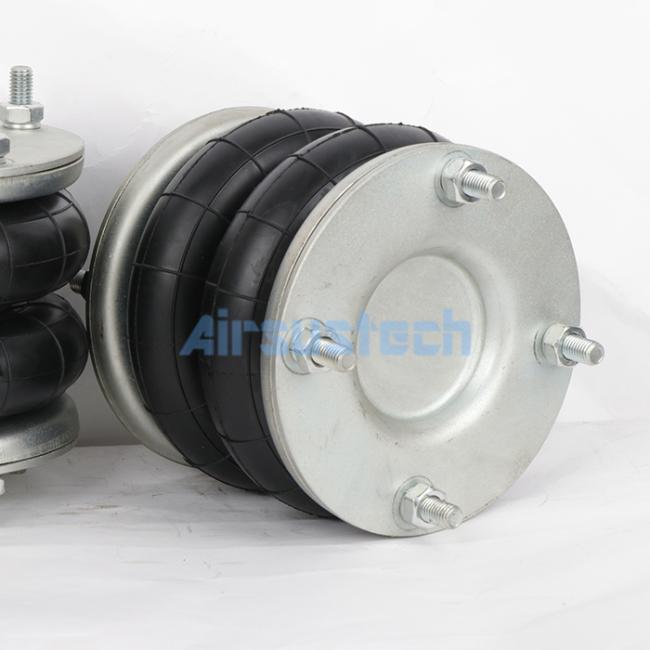

W01-R58-4053 Firestone Double Convoluted Flange Connection Air Spring Assembly

Price Negotiable

Price: Negotiable

MOQ: 1 pieces

Delivery Time: 3-8 Working Days

Brand: AIRSUSTECH

Product Description

W01-R58-4053 Firestone Double Convoluted Flange Connection Air Spring Assembly

Product Dimensions

Dimensions - Static Height: 130 mm

Dimensions - Natural Diameter: 153 mm

Dimensions - Screw Nut Length: 27 mm

Dimensions - Cover Plate Width: 153 mm

Dimensions - Center to Center Distance Diameter: 127 mm

Air Inlet Standard: 1/2 BSP

Screw Nut Type: 4×M10×1.5

Type: double convoluted

Part Interchanges

Firestone Industrial Air Bag: W01-R58-4053 / WO1-R58-4053

Firestone Industrial Air Bag: W01R584053 / WO1R584053

Firestone Industrial Air Bag: W01 R58 4053 / WO1 R58 4053

Dunlop Pneuride: 6"x2 (Steel)

Dunlop Pneuride: 6x2 (Steel)

Dunlop Pneuride: 6'x2 (Steel)
Dunlop Springride: SP1482

Dunlop Springride: SP 1482

Dunlop Springride: SP 14 82

Continental Contitech: FD 76-14 DS / FD76-14 DS

Continental Contitech: FD 7614 DS / FD7614 DS

Continental Contitech: FD 76 14 DS / FD76 14 DS

Norgren Pneumatic Bellow: M/31062

Norgren Pneumatic Bellow: M31062

Norgren Pneumatic Bellow: M 31062

Parker Air Spring: 9109001

The Applications of Air Suspensions

Material Handling Industry
Lumber Industry
Aluminum Can Recycling
Container Manufacturers
Paper Industry
Press Manufacturing
Vibrating Equipment & Conveyors
Shaker Screens
Steel Manufacturing Equipment
Automotive Related (Plate Glass)

Air Spring Should Pay Attention To In The Application

1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

Other Kinds of Industrial Air Springs

D14B42	W01-M58-9881	D14B47	W01-M58-8106
D14B49	W01-M58-8107	D14B51	W01-M58-6339
D14B51	W01-M58-7370	D14U37	W01-M58-8601
SP 1129	W01-R58-4023	SP 1218	W01-R58-4085
SP 1368	W01-R58-4052	SP 1457	W01-R58-4076
SP 1482	W01-R58-4053	SP 1538	W01-R58-4092
SP 1539	W01-R58-4086	SP 1542	W01-R58-4062
SP 1637	W01-R58-4054	SP 1640	W01-R58-4060
SP 1643	W01-R58-4063	SP 1988	W01-R58-4074
SP 2008	W01-R58-4043	SP 2022 NB	W01-R58-4037
SP 2334	W01-R58-4050	SP 2441	W01-R58-4051
SP 253	W01-R58-4045	SP 253	W01-R58-4055
SP 255	W01-R58-4048	SP 256	W01-R58-4044
SP 257	W01-R58-4075	SP 258	W01-R58-4047
SP 2623	W01-R58-4057	SP 2782 NB	W01-R58-4038
SP 2861	W01-R58-4095	SP 2863	W01-R58-4056
SP 2895	W01-R58-4035	SP 2910	W01-R58-4081
SP 2913	W01-R58-4078	SP 2917	W01-R58-4070
SP 543	W01-R58-4036	SP1539 / SP258	W01-R58-4059
SP1541 NB / SP921	W01-R58-4061	SP1984 NB / SP2665 NB	W01-R58-4073
