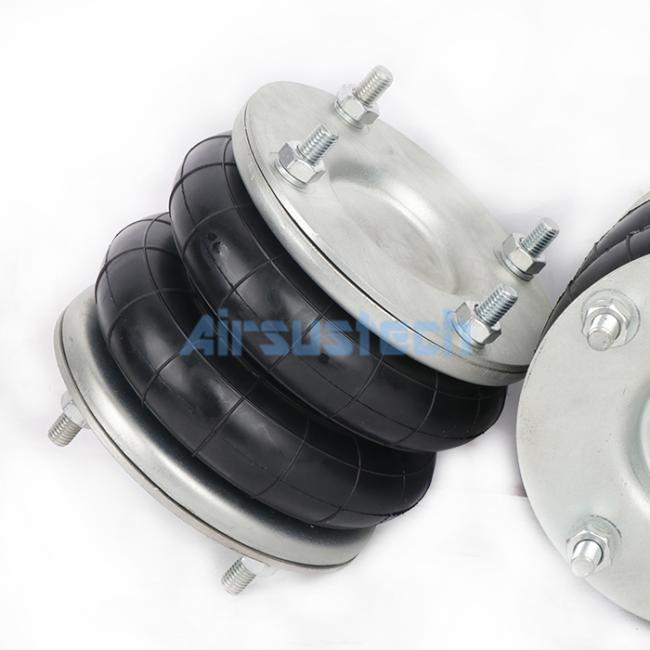

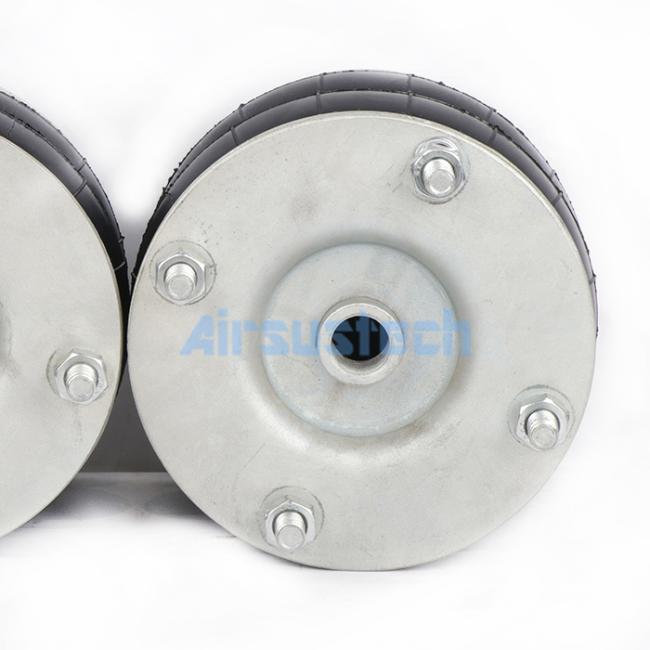

6×2 Flange Rubber Air Spring Parker 9109001 Double Convoluted Pneumatic Bellow
6×2 Flange Rubber Air Spring Parker 9109001 Double Convoluted Pneumatic Bellow
Product Description
| Brand | AIRSUSTECH |
| Reference | Dunlop, Contitech, Firestone... |
| Material | Rubber |
| Origin of Place | Guangzhou, China |
| Standard | OEM Standard |
| Model Number | 2B6×2T |
| Other Numbers | Dunlop 6''×2 |
Product Features
Body Dia.[Natural]: 159 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Pressure [Max]: 0-8 bar
Height [Static]: 135.5 mm
Air Inlet: G1/2
Nut/Blind Nuts: 4×M10
Center to Center Distance: 127 mm
Center Distance Air Hole Betweeen Screw: 4×M10
Cover Plate Diameter: 153.5 mm
OEM Cross References
| Manufacturer | Cross References |
| Parker | 9109001 |
| Firestone |
W01-R58-4053, W01R584053, W01 R58 4053 WO1-R58-4053, WO1R584053, WO1 R58 4053 |
| Dunlop Pneuride | 6"x2 (Steel), 6'x2 (Steel), 6x2 (Steel) |
| Dunlop Springride | SP1482, SP 1482, SP 14 82 |
| Contitech |
FD 76-14 DS, FD 7614 DS, FD 76 14 DS FD76-14 DS, FD7614 DS, FD76 14 DS |
| Norgren | M/31062, M31062, M 31062 |
Structure and Design of AIRSUSTECH Air Springs
- The AIRSUSTECH air spring is a high-performance rubber component manufactured through vulcanization, integrating cord reinforcement layers with inner/outer rubber compounds or steel wire rings to form a flexible, airtight body. This design leverages compressed air to provide superior elastic functionality, commonly referred to as a rubber air spring, airbag, or pneumatic suspension unit. The assembly consists of three core elements: the vulcanized rubber bladder, a base plate, and a piston (or upper plate), which together create a sealed pressure chamber.
- Structurally, our air springs are categorized into three types—capsule, membrane, and sleeve—and employ four sealing methods: pressure self-sealing, flange clamping, hoop fastening, or hybrid techniques. The load-bearing capacity is primarily supported by the cord reinforcement layers, typically configured as a 2-ply laminate (or 4-ply for specialized applications). The inner rubber layer ensures airtight sealing, while the outer layer provides additional sealing integrity and environmental protection against abrasion, chemicals, and UV exposure.
- Engineered for durability and precision, this modular design ensures optimal load distribution, corrosion resistance, and adaptability across industrial, automotive, and transportation applications.
FAQ
Q: Can you produce according to samples?
A: Yes, it can be developed according to your samples or technical drawings.
Q: How is your delivery time?
A: Generally, it takes 5-8 working days after receiving the advance payment.
The specific delivery time depends on the items and quantity of the order.
Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.
