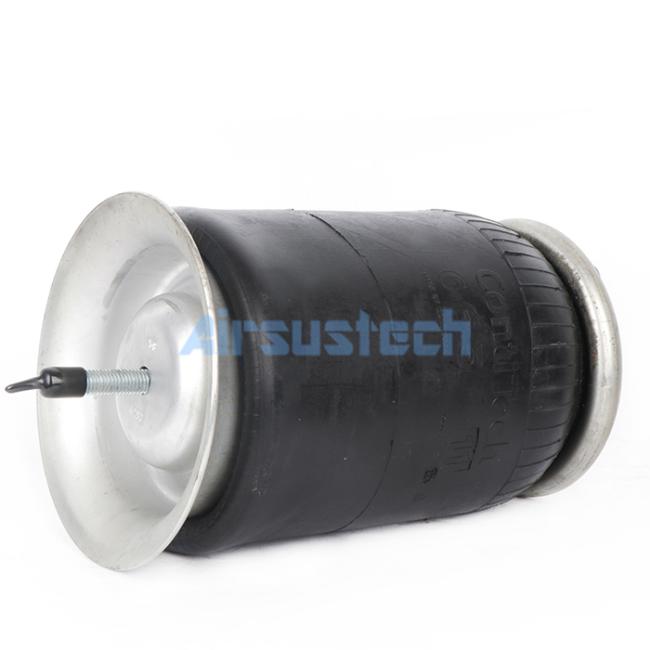

High Quality Automann 1DK23R-9646 Complete Air Spring Contitech 64694 for Truck
High Quality Automann 1DK23R-9646 Complete Air Spring Contitech 64694 for Truck
1T9646 Air Bag Specifications
| Maximum Diameter | 13.30 inches |
| Screw Height | 1.24 inches |
| Min. Height | 7.30 inches |
| Max. Height | 24.80 inches |
| Piston Height | 5.59 inches |
| Air Connection | 3/4-16UNF, 1/4-18NPTF |
| Center-to-Center Diameter | 5.50 inches |
| Top Bead Plate | 9.00 inches |
| Piston Width | 10.28 inches |
| Screw Type | 1/2-13 UNC |
Product Corresponding Models
|
ORDER NO: 400485-WH WUHLERMANN NO: 789646-CPL
OEM NO HENDRICKSON: S-23611 TRIANGLE: AS-8564
CROSS NO FIRESTONE: W01-358-9646 FIRESTONE: 1T15MBTW-10 TAURUS: 6427 TRIANGLE: AS-8564 TRP: AS96460 AUTOMANN: 1DK23R-9646 AUTOMANN: 1DK23R-9646 FLEETPRIDE: AS9646 CONTITECH: 9 10BP-20 P 738 FIRESTONE STYLE: 1T15MBTW-10 |
AIRSUSTECH Complete Air Spring Core Functions and Values
1. Dynamic load adaptation
|
Principle: Change the spring stiffness in real time through air pressure adjustment, automatically adapting to different loads (no load → full load). |
| Effect: Reduce air pressure when unloaded → suspension becomes softer, improving driving comfort Increase air pressure when fully loaded → suspension becomes harder, preventing chassis from bottoming out and protecting cargo |
2. Vehicle height control
With height control valve (such as Wabco or Knorr-Bremse system):
| Keep the cargo box/carriage at a constant height from the ground (±5mm error) |
| Achieve side kneeling function (bus platform tilted to facilitate passengers to get on and off) |
|
Automatically level the saddle when trailer is connected |
3. Active shock absorption and stability improvement
Compared with leaf spring advantages:
| Scenarios | Complete Air Spring | Leaf Air Spring |
| Bumpy road | Absorb more than 80% of impact | Vibration is directly transmitted to the frame |
| Tilting in curves | Suppressing the roll angle>40% | Relying on stabilizer bar, limited effect |
| Emergency braking nod | Reduce 50% of the front pressure | Obvious dive phenomenon |
Other Kinds of Truck Air Shock Suspensions
| Firestone Bellows No. | Firestone Part Number | Firestone Bellows No. | Firestone Part Number |
| 1T15MW-6 | W01-358-9299 | 1T15MLW-7 | W01-358-8944 |
| 1T15MLW-7 | W01-358-6260 | 1T15MLW-7 | W01-358-6317 |
| 1T15MLW-7 | W01-358-6231 | 1T15MLW-7 | W01-358-6262 |
| 1T15MLW-7 | W01-358-8903 | 1T15MLW-6 | W01-358-9644 |
| 1T15MLW-10 | W01-358-9646 | 1T15MLW-12 | W01-358-9645 |
| 1T15S-5 | W01-358-9076 | 1T15S-6 | W01-358-9043 |
| 1T15S-6 | W01-358-9259 | 1T15S-N-3 | W01-358-8911 |
| 1T15SN-6 | W01-358-9260 | 1T15SN-6 | W01-358-9278 |
| 1T15T-1 | W01-358-9402 | 1T15T-1 | W01-358-9410 |
| 1T15T-1 | W01-358-9650 | 1T15T-1 | W01-358-9651 |
| 1T15T-2 | W01-358-8600 | 1T15TM-1 | W01-358-5765 |
| 1T15TM-1 | W01-358-5766 | 1T15TM-1 | W01-358-9421 |
| 1T15TM-1 | W01-358-9423 | 1T15TQ-1 | W01-358-5770 |
| 1T15TQ-1 | W01-358-5771 | 1T15TQ-1 | W01-358-5772 |
| 1T15TQ-1 | W01-358-5773 | 1T15TQ-1 | W01-358-5775 |
| 1T15Q-1 | W01-358-5776 | 1T15Q-1 | W01-358-5777 |
| 1T15Q-1 | W01-358-5789 | 1T15Q-1 | W01-358-5792 |
| 1T15Q-1 | W01-358-9586 | 1T15V-1 | W01-358-9249 |
| 1T15V-1 | W01-358-9251 | 1T15V-3 | W01-358-9578 |
| 1T15V-3 | W01-358-9582 | 1T15V-8 | W01-358-9274 |
