ISO-certified Single Convoluted Air Rubber Bellows Only HF230120-1 Air Spring

Product Description

HF230/120-1 air spring has excellent elasticity and load capacity, and can provide stable support during the operation of the vibration table. It is filled with compressed air and can automatically adjust the height and stiffness according to the load size, thereby ensuring the smooth operation of the vibration table under different working conditions. This adaptive characteristic enables the air spring to effectively reduce vibration and noise during the lost foam casting process, and improve the quality and precision of the casting.

Product Detaild Datas: HF230/120-1

How Is the Air Bag Constructed?

The flexible bellows is made of fabric-reinforced rubber and usually has one, two or three corrugations, depending on the required stroke. The chrome steel end caps at both ends are welded with anti-corrosion studs, which provide higher installation error tolerance and simplify the assembly process. However, it is necessary to ensure that the force is evenly distributed over the entire end cap surface, and lateral guide rails must be provided to ensure stability.

What Are the Typical Applications?

Typical applications are divided into two categories: function-driven and vibration-controlled: power scenarios such as scissor lifts, stamping press actuators and other equipment that require high loads and short strokes; vibration reduction scenarios cover hopper shock absorption, reel tension control and vehicle suspension systems. In addition, it also plays a key role in the protection of mechanical stops and foundation vibration isolation, and has the dual value of motion execution and vibration isolation.

Other Kinds of Industrial Convoluted Air Rubber Bellows

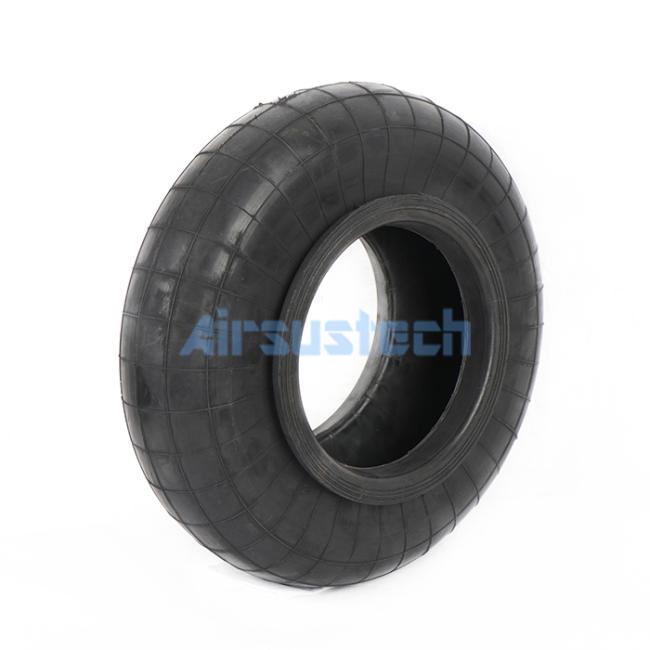

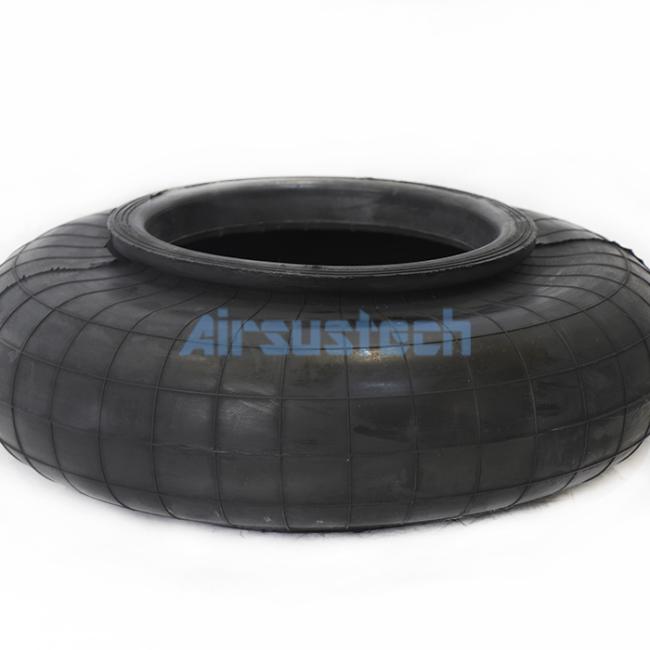

Product Images

Factory Workshop
