W01-358-5135 Single Convoluted Flange Air Spring by Firestone Air Bellows Only
W01-358-5135 Single Convoluted Flange Air Spring by Firestone Air Bellows Only
OEM Cross References
|
Style 121 Two Ply Bellows |
Rubber bellows only |
W01-358-5135, W013585135, W01 358 5135 WO1-358-5135, WO13585135, WO1 358 5135 |
| Ribbed neck aluminum bead rings, 45 mm bolts, nuts, washers |
W01-M58-6966, W01M586966, W01 M58 6966 WO1-M58-6966, WO1M586966, WO1 M58 6966 |
|
| Rolled plate assembly, 1/2 blind nuts, 3/4 NPT |
W01-358-7272, W013587272, W01 358 7272 WO1-358-7272, WO13587272, WO1 358 7272 |
Product Dimensions
Dimensions - Compressed Height: 53 mm
Dimensions - Extended Height: 152 mm
Dimensions - Flange Width: 451 mm
Dimensions - Center-to-Center Distance: 419 mm
Dimensions - Max. Diameter: 516 mm
Screw Type: 24(M-10×1.5)
AIRSUSTECH Air Actuator: Engineered for Superior Performance & Reliability
| 1. Crimped Assembly Technology | Reinforced construction ensures maximum structural integrity |
| Withstands prolonged operational stress and heavy loads | |
|
Delivers long-term reliability in demanding applications |
|
| 2. Premium Natural Rubber Convoluted Bellow | High-grade natural rubber formulation for optimal elasticity |
| Exceptional dynamic response and vibration damping | |
|
Adaptable to diverse industrial applications |
|
| 3. High-Performance Dynamic Capability | Superior responsiveness across varying pressure conditions |
| Maintains precision control under dynamic loads | |
| Optimized for fast-cycling operations | |
| 4. Universal Application Design | Intelligent engineering ensures broad compatibility |
| Consistent performance in multiple operating environments | |
| Reliable solution for complex motion control requirements | |
| 5. Heavy-Duty Zinc-Plated Steel Plates | Corrosion-resistant crimped steel construction |
| Enhanced durability for harsh industrial environments | |
| Protective zinc plating extends service life |
Technical Advantages:
- 30% longer service life than standard actuators
- 50% wider operating temperature range (-40°C to +120°C)
- Compatible with multiple pressure systems (3-7 bar)
We Have Other Industrial Flange Air Springs
| 1H086060 | 2H130142 | 3H200206 |
| 1H120060 | 2H156130 | 3H250260 |
| 1H150076 | 2H160166 | 3H255230 |
| 1H188102-A | 2H168132 | 3H255322 |
| 1H215120 | 2H200142 | 3H310306 |
| 1H235118 | 2H220200 | 3H330306 |
| 1H235150 | 2H230214 | 3H360306 |
| 1H260135 | 2H235152 | 3H380316 |
| 1H260126 | 2H235210 | 3H400312 |
| 1H320124 | 2H252163 | 3H520312 |
| 2H260230 | 3H580306 | |
| 2H280214 | 3H630376 | |
| 2H290265 | 3H680376 | |
| 2H300170 | ||
| 2H310214 |

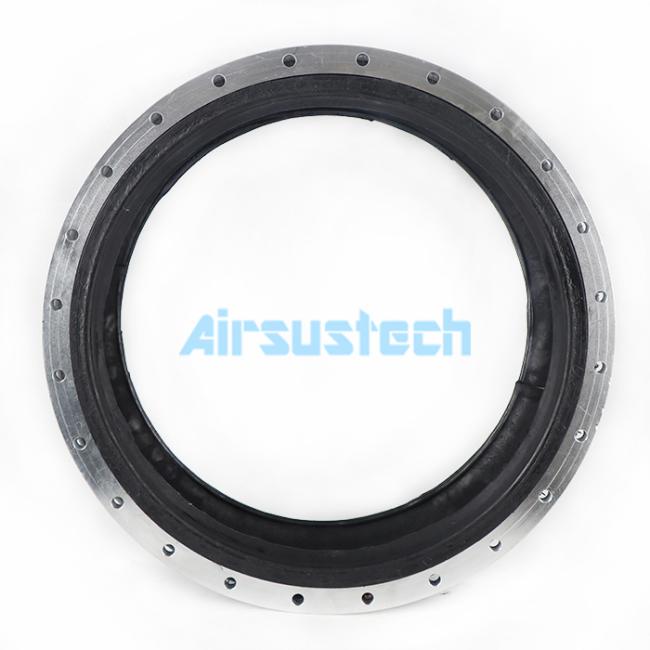

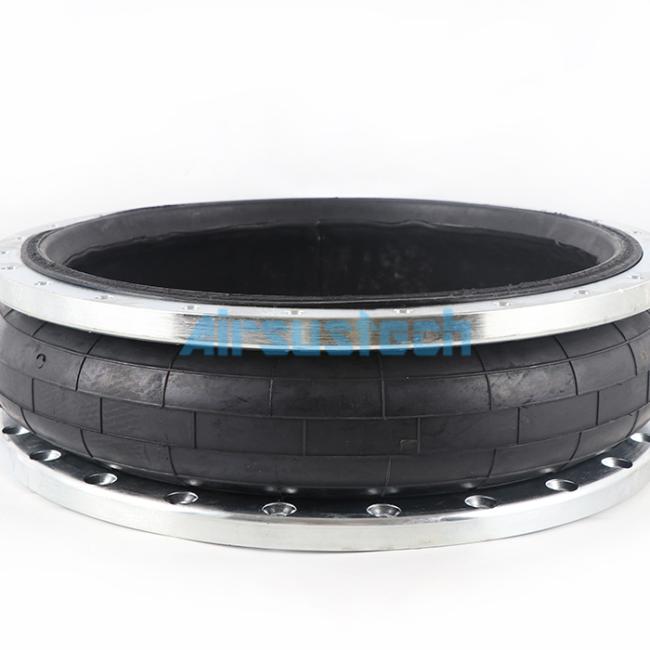

Product Images
