Contitech FS 40-6 CI G1/8 M8 Industrial Air Spring Continental Pneumatic Air Bellows
Contitech FS 40-6 CI G1/8 M8 Industrial Air Spring Continental Pneumatic Air Bellows
Quick Details
Part Number: AIRSUSTECH 1B4060
Condition: Brand new
Working Temperature: -40℃+70℃
Manufacturer Warranty: 12 Months
Transportation: By Sea/By Air/By DHL/By FedEx/By UPS
Sample: Avaliable
Product Features
- This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 50 mm, a maximum extended height of 110 mm, and a working stroke of 60 mm.
- For the 1B4060 model, the cover plate diameter is 90 mm, and the center-to-center distance is 20 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 145 mm.
- The industrial convoluted rubber air spring operates via gas filling. Its air connection is G1/8, and the screw nut size is 2×M8×1.25.
Product Technical Parameters
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring Rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural Frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 | |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 | |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 | |
| 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
Other OEM Numbers
Contitech Manufacturer Number: FS 40-6, FS40-6
Contitech Manufacturer Number: FS 406, FS406
Contitech Manufacturer Number: FS 40 6, FS 40 6
Phoenix Manufacturer Number: SP 1B 04, SP 1B04, SP1B04
Weforma Manufacturer Number: WBE 100-E1, WBE 100E1, WBE 100 E1
FAQ
Q: When will make delivery ?
A: Delivery time is 3-8woring days.
Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.
Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

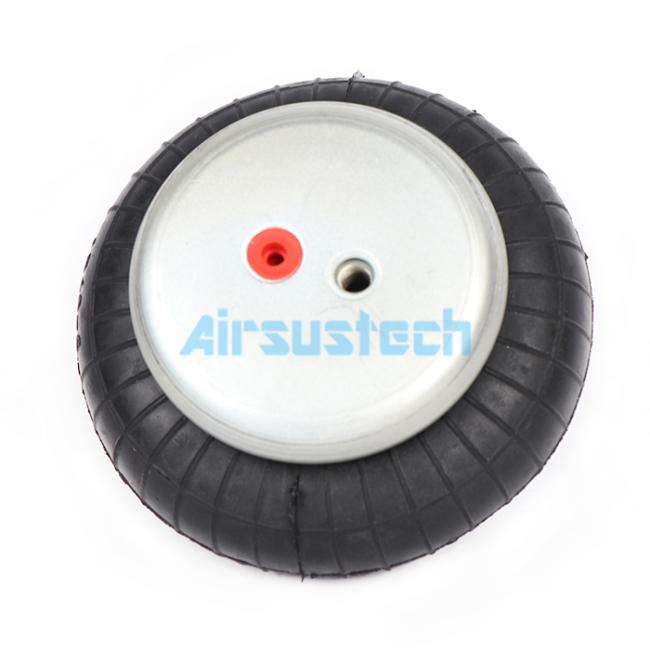

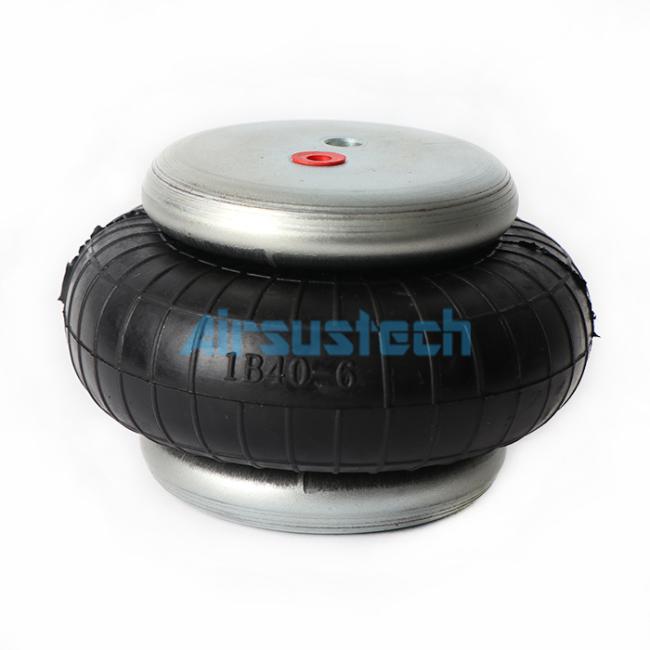

Product Images
