Hendrickson S1013 Air Spring Firestone W01-358-7422 Rolling Lobe Air Bag Replacement

Price Negotiable

Price: Negotiable

MOQ: 1 pieces

Delivery Time: 3-8 Working Days

Brand: AIRSUSTECH

Product Description

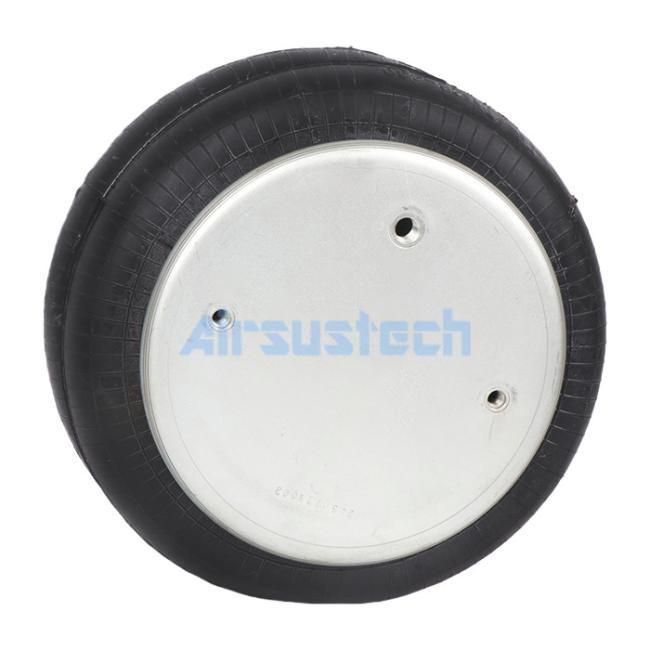

Hendrickson S1013 Air Spring Firestone W01-358-7422 Rolling Lobe Air Bag Replacement

The Technical Data of AIRSUSTECH 2B7400

Cover Plate

The diameter of top plate diameter	231 MM
The center distance of top cover plate	157 MM
The distance between air hole and holes	73 MM
Bottom cover plate diameter	231 MM
Center distance of bottom plate	157 MM

Air Connection / Air Connector / Air Inlet / Gas Hole

Air Supply Port

1/4NPTF

Rubber Bellows Part

Compressed height	104 MM
Max. usable height	305 MM
Material	natural rubber

Threaded Hole

The threaded hole on top cover plate	2×3/8-16UNC
Bottom plate threaded hole type	2×3/8-16UNC

Application Suitable for

Brand	Model	Vehicle Type
FREIGHTLINER	FAS AIRLINER I	TRUCK
FREIGHTLINER	All Models	TRUCK
HENDRICKSON	All Models	TRAILER
HENDRICKSON	1400 Serisi	TRAILER
NAVISTAR INTERNATIONAL	All Models	TRUCK
NEWAY	All Models	TRAILER
RIDEWELL	All Models	TRAILER
WATSON & CHALIN	All Models	TRAILER

Other Model Numbers

Firestone W01-358-7400 / 22
Contitech FD 330-22 313
Goodyear 2B12-309 / 316
Goodyear 578-92-3-309
Triangle 6316 / 4313
Fab Tek 04-0080
Freightliner 16-10769-000
GMC 693230
Granning 2726
Hendrickson S1013
Neway 90557016
R & S Truck & Body 1027519
Watson & chalin As0003
Ridewell 1003587400C
Dayton 354700
Vol vo 3130488
Scania 670199
Gart 271.2.209

Core Functions and Benefits of Truck Air Springs

1. Superior Shock Absorption and Ride Comfort: Unlike traditional steel springs, air springs act as a cushion by compressing and expanding with air pressure. This effectively isolates the cab and chassis from road vibrations and impacts, leading to a much smoother ride. This reduces driver fatigue, protects sensitive cargo from damage, and enhances overall driving comfort, especially on long hauls.
2. Automatic Load-Leveling and Adaptability: Air springs can automatically adjust to varying loads. Through height control valves, the system adds or releases air to maintain a constant ride height whether the truck is fully loaded or empty. This ensures:
- Proper Driveline Angles: Prevents premature wear on U-joints and other drivetrain components.
- Correct Headlight Aim: Maintains safety by ensuring headlights are properly aimed.
- Improved Aerodynamics: A level truck has better aerodynamics, which can lead to improved fuel efficiency.
3. Enhanced Stability and Handling: By keeping the truck level and adapting to road conditions, air springs provide exceptional stability. They reduce body roll during cornering and help maintain consistent tire contact with the road, giving the driver more control and confidence, particularly during emergency maneuvers.
4. Protection for the Vehicle and Cargo: By absorbing road shocks, air springs drastically reduce the wear and tear on the entire vehicle, including the frame, electronics, and other chassis components, thereby extending the vehicle's service life. The cushioned ride is also crucial for protecting fragile cargo.
