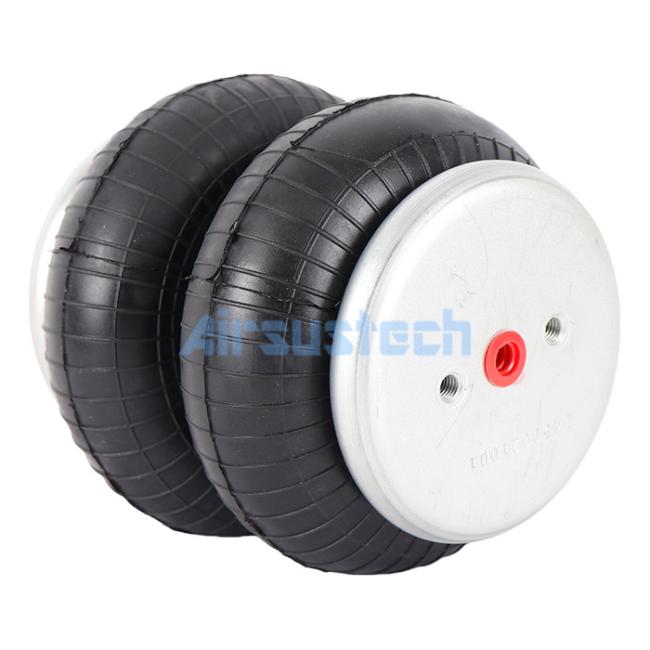

FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
| Operating Temperature | -40℃ to +70℃ |
| Working Pressure | 0 bar to 8 bar |
| Port Size | G1/4 |
| Maximum Diameter | 165 mm |
| Number of Convolutions | 2 |
| Working Stroke | 128 mm |
| Operation | air fitting |
| Materials - Body | natural rubber and steel plate |
| Dimensions - Min. Usable Height | 72 mm |
| Dimensions - Max. Usable Height | 200 mm |
| Dimensions - Center Distance | 44.5 mm |
| Dimensions - Plate Diameter | 108 mm |
| Mounting Type | 2×M8 |
| Contitech FD 70-13 | Contitech FD 7013 |
|---|---|
| Contitech FD 70-13 M8 | Contitech FD 70-13 G1/4 |
| Contitech 2682 015 000 | Contitech 2682015000 |
| Contitech Bellows No. 60513 | Festo EB-165-125 |
| Festo EB165125 | Festo EB 165 125 |
| Festo 36494 | Festo EB-165-125 M8 G1/4 |
Of Course! Industrial double convoluted air springs can indeed be used in printing presses, and can effectively improve the stability of printing equipment and print quality.
| Challenge: Vibration interference |
Solution: Utilizing the compressibility of air, it provides excellent cushioning and vibration reduction, isolating vibration transmission. Pro: Improve print quality, reduce dot blurring and misregistration; protect precision mechanical structures. |
|---|---|
| Challenge: Load changes |
Solution: By adjusting the internal air pressure, the stiffness and support height can be flexibly adjusted to adapt to different loads and maintain the equipment level. Pro: Improved production adaptability, rapid job changeover, and guaranteed stability under different working conditions; higher level of automation. |
| Challenge: Impact and wear |
Solution: The hyperbolic surface structure and flexible properties can efficiently absorb impact energy and ensure smooth start-stop. Pro: Extend equipment lifespan, reduce wear and tear on mechanical parts, and decrease maintenance costs and downtime. |
| Single Convoluted | Double Convoluted | Triple Convoluted |
|---|---|---|
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI |
