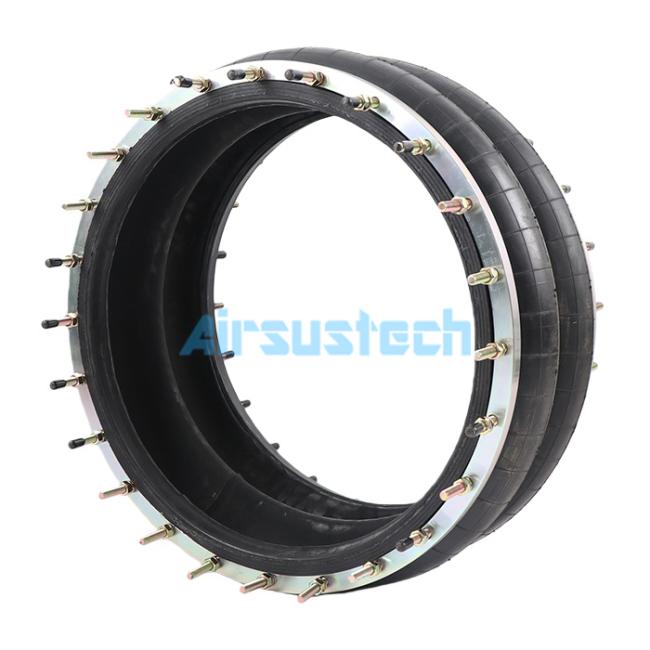

Firestone Flange Connection Air Bag W01-358-7772 8.5 In. Rubber Air Suspension
| AIRSUSTECH 2H630262 | Firestone W01-358-7772 |
|---|---|
Center to Center Distance: 560 mm Flange Ring Diameter: 610 mm Design Height: 262 mm Max. External Width: 660 mm Min. Usable Height: 90 mm Max. Usable Height: 340 mm Mounting Bolst: 30×M10 | C-to-C Center Diameter: 22 inches Flange Ring O.D.: 23.64 inches Maximum Diameter: 26 inches Compressed Height: 3.5 inches Max. Height: 12 inches Bolts Type: 24(3/8-24) |
- Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7772 / W013587772 / W01 358 7772
WO1-358-7772 / WO13587772 / WO1 358 7772
- Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
W01-358-7775 / W013587775 / W01 358 7775
WO1-358-7775 / WO13587775 / WO1 358 7775
- Rubber bellows only
W01-358-5126 / W013585126 / W01 358 5126
WO1-358-5126 / WO13585126 / WO1 358 5126
| Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers | W01-M58-6979 / W01 M58 6979 / W01M586979 WO1-M58-6979 / WO1 M58 6979 / WO1M586979 |
| Rubber bellows only | W01-358-5126 / W013585126 / W01 358 5126 WO1-358-5126 / WO13585126 / WO1 358 5126 |
| Dynamic Characteristics at 9.5 in. Design Height | ||||
| Volume @ 100 PSIG=3921 in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | LOAD (lbs.) | Spring Rate (lbs./in.) | CPM | HZ |
| 40 | 13,290 | 3,784 | 100 | 1.67 |
| 60 | 20,390 | 5,336 | 96 | 1.6 |
| 80 | 27,330 | 6,763 | 93 | 1.56 |
| 100 | 34,620 | 8,105 | 91 | 1.51 |
| Force Table | ||||||
| Assembly Height (in.) | Volume @ 100 PSIG (in3) | Prounds Force | ||||
| @ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG | ||
| 10.0 | 4099 | 6270 | 12530 | 19300 | 25970 | 33040 |
| 9.0 | 3734 | 7070 | 13960 | 21360 | 28550 | 36020 |
| 8.0 | 3343 | 7710 | 15070 | 22960 | 30580 | 38450 |
| 7.0 | 2928 | 8180 | 15920 | 24160 | 32200 | 40400 |
| 6.0 | 2495 | 8540 | 16610 | 25110 | 33550 | 41960 |
| 5.0 | 2055 | 8880 | 17280 | 26010 | 34790 | 43400 |
| 4.0 | 1589 | 9260 | 18000 | 26960 | 36020 | 44850 |
Our industrial flange connection air bags are engineered for smooth, frictionless operation, delivering consistent performance over an extended service life. With no mechanical wear and a zero-maintenance design, they eliminate the need for lubrication and routine servicing—reducing both downtime and your total cost of operation.
1. Performance & Reliability
- Frictionless operation for consistent performance
- Extended service life with no mechanical wear
- Zero maintenance required, no lubrication or servicing
- Reduces downtime and operational costs
2. Design & Application
- Ideal for short-stroke, high-force tasks
- Compact and reliable for automation, pressing, and positioning
- Excellent vibration isolation protects sensitive equipment
- Improves stability in dynamic environments
3. Installation & Versatility
- Simple, space-saving design for easy integration
- Quick installation even in confined spaces
- Suitable for industrial machinery, mobile equipment, and precision devices
- Combines strength, durability, and ease of use in one solution
