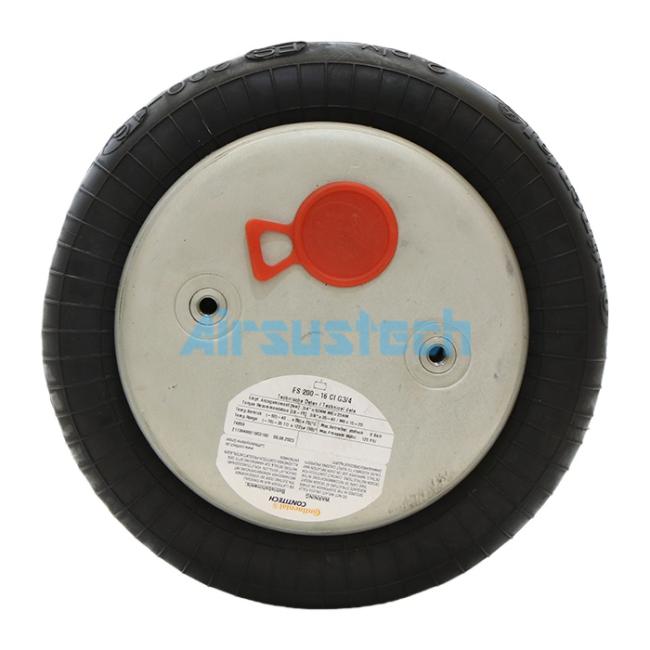

FS 200-16 Continental Air Spring G3/4 Single Convoluted Rubber Air Bag Metal Plate

Price Negotiable

Price: Negotiable

MOQ: 1 Piece

Delivery Time: 3-8 Working Days

Brand: AIRSUSTECH

Product Description

FS 200-16 Continental Air Spring G3/4 Single Convoluted Rubber Air Bag Metal Plate

Contitech FS 200-16 Technical Data

Specification	Value
Cover Plate Diameter	159 MM
Center to Center Distance Diameter	89 MM
Mounting Hole	2XM8
Gas Hole	G3/4
Distance Between Air Inlet and Hole	38.1 MM
Maximum External Diameter	221 MM
Installation Space	250 MM
Contitech Order No.	74859

Reference Numbers

Guidelines for Installing Pneumatic Actuators

Prior to beginning the installation of air springs, confirm that all necessary tools and equipment are available to carry out the procedure safely.
For accurate reference, consult the official service manual provided by the equipment manufacturer regarding the specific suspension system you are repairing.
If uncertainties arise during the process, obtaining guidance from a qualified air spring specialist or an industrial air bag producer is recommended. This proactive step can save considerable time and help prevent potential issues in the future.

Contitech Single Convoluted Air Bag Specifications

Item Code	Max. Diameter (mm)	Max. Stroke (mm)	Min. Height (kN)	Max. Stroke (kN)	Standard Air Inlet
FS 40 -6 CI	145	60	6.9	2.4	G1/8
FS 50-5 CI	150	44	9	2.2	G1/4
FS 70-7 CI	165	64	9.9	5.2	G1/4
FS 100-10 CI	210	94	14.7	1.6	G3/4
FS 120-9 CI	215	85	17.7	6.6	G3/4
FS 120-10 CI	231	99	19.5	4.6	G3/4
FS 120-12 CI	235	119	18.7	7.2	G3/4
FS 200-10 CI	250	89	23.8	9.1	G3/4
FS 310-12 S
FS 330-11 CI	325	99	43.9	22.4	G3/4
FS 330-14 CI	343	129	47.3	13	G3/4
FS 530-11 CI	385	124	68.4	20.8	G3/4
FS 530-14 CI	405	134	69.6	35.2	G3/4
FS 960-12 CI	450	117	98.3	40.4	G3/4
FS 1330-11 CI	530	107	141.6	63.3	G3/4
