Contitech FD 70-13 CI 2682015000 Industrial Rubber Air Spring with G1/4 M8
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description

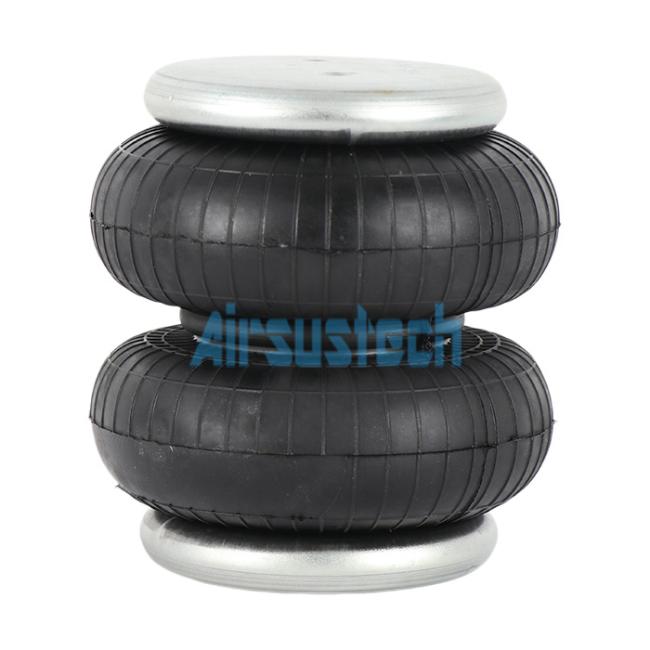

Contitech FD 70-13 CI 2682015000 Industrial Rubber Air Spring with G1/4 M8
Product Overview
The Contitech FD 70-13 CI 2682015000 is a high-performance industrial rubber air spring designed for vibration isolation and motion control applications. Featuring G1/4 air fittings and M8 mounting hardware, this air spring provides reliable performance in demanding industrial environments.
Cross References
Contitech FD 70-13 CI
Contitech FD 70-13 CI G1/4
Contitech FD 70-13 CI M8
Contitech 2682015000
Contitech Bellows No. 60513
Festo 36494
Festo EB-165-125
Festo EB165125
Festo EB 165 125
Oria M-70
Oria M70
Oria M 70
Gigant 700196027
Gigant 196027
Technical Specifications
| Nut/Blind Nuts | Top cover: 2 screws (2xM8) Bottom cover: 2 screws (2xM8) |
| Air Connection | G1/4 air fitting |
| Cover Plate Dimensions | Top/Bottom diameter: 107 mm Screw center distance: 44.5 mm |
| Rubber Bellows | Maximum diameter: 165 mm Buffer block: Unbuffered Waist ring: No strap ring |
Industrial Applications of Air Springs
Industrial air springs are essential components for vibration absorption, motion control, and pressure regulation in machinery. Their simple design, reliable operation, and minimal maintenance requirements make them cost-effective solutions for various industrial operations.
Stamping and Manufacturing Applications
Air springs serve as reliable buffers in metal stamping processes, handling large periodic shocks during material handling. Their performance directly impacts machining accuracy and helps reduce manufacturing costs while ensuring precision.
Material Handling and Conveying Systems
In material conveying systems and silo operations, air springs provide effective vibration isolation that protects equipment from fatigue and structural damage, maintaining stability and prolonging machinery life.
Adjustable Flexibility
The key advantage of industrial air springs is their adjustable inflation capability. By modifying air pressure, they can accommodate different load weights and heights while maintaining optimal vibration isolation across various industrial scenarios.
AIRSUSTECH 2B Series Cross Reference
| AIRSUSTECH | CONTITECH | AIRSUSTECH | CONTITECH |
|---|---|---|---|
| 2B6926 | FD 200-19 504 / 61299 | 2B6910 | FD 200-19 / 2682 045000 |
| 2B6884 | FD 200-19 724 | 2B6890 | FD 200-19 539 |
| 2B6897 | FD 200-19 505 / 161300 | 2B6900 | FD 200-19 319 / 161017 |
| 2B6902 | FD 200-19 310 | 2B6905 | FD 200-19 315 |
| 2B6908 | FD 200-19 362 / 161294 | 2B6910 | FD 200-19 320 |
| 2B6926 | FD 200-19 504 / 161299 | 2B6932 | FD 200-19 452 |
| 2B6935 | FD 200-19 499 | 2B6940 | FD 200-19 450 / 161296 |
| 2B6941 | FD 200-19 448 / 161295 | 2B6949 | FD 200-19 506 / 161301 |
| 2B7788 | FD 200-19 510 | 2B7795 | FD 200-22 524 |
| 2B7894 | FD 200-19 P04 1/4 M10 | 2B6905 | FD 200-19 315 |
AIRSUSTECH 2B7070 Cross Reference to Contitech FD 70-13 CI
The AIRSUSTECH 2B7070 model directly corresponds to the Contitech FD 70-13 CI air spring, providing equivalent performance and specifications for industrial applications.
