T2086660 Air Spring 2B 12 R CF GOMMATAURUS KF216 For Automotive Related Equipment

AIRSUSTECH 2B7894 refer to T2086660 Air Spring product description:

The air spring shock absorber AIRSUSTECH 2B7894 refer to T2086660 Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B7894 refer to T2086660 Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B7894 refer to T2086660 Air Spring must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B7894 refer to T2086660 Air Spring , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B7894 refer to T2086660 Air Spring shall not be in contact with other parts

AIRSUSTECH 2B7894 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B7894

AIRSUSTECH rubber bellows 2B200

T2086660
ContiTech: 64267
ContiTech:FD 200-19 P04 1/4 M10
ContiTech:FD 20019 P04 1/4 M10
ContiTech:FD 200 19 P04 1/4 M10

Goodyear:2B9-287
Goodyear:2B9 287
Goodyear:2B9287
Goodyear:578-92-3-202
Goodyear:578 92 3 202
Goodyear:578923202
Taurus: Kf216
Triangle Spring: 4320 SAF 4.229.1004.00 :
Firestone: 7894
Firestone:W01-358-7894
Firestone:W01 358 7894
Firestone:W013587894
Sirco: AS-6910
R & S Truck: 1027405 Euclid/Meritor Aftermarket: E-FS6910
Ridewell: 1003586910C ContiTech: FD200-19320
Batco: 10-96910 Euclid/Meritor Aftermarket: FS6910
Reyco: 23704-01 BWP: M-3501
Hendrickson: 45843-3 HD America: PMABG-6910B
Navistar/IHC: 554783C1 Ridewell: S4512C
UCF/Impex: AB-2B9-200 Leland: SC201
Automann: ABSP2B12R-6910 Leland: SC2011
Watson & Chalin: AS0001 Granning: 1371

Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 2XM10X1.5
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2XM10X1.5
The screw center distance of the bottom cover plate: 89 mm

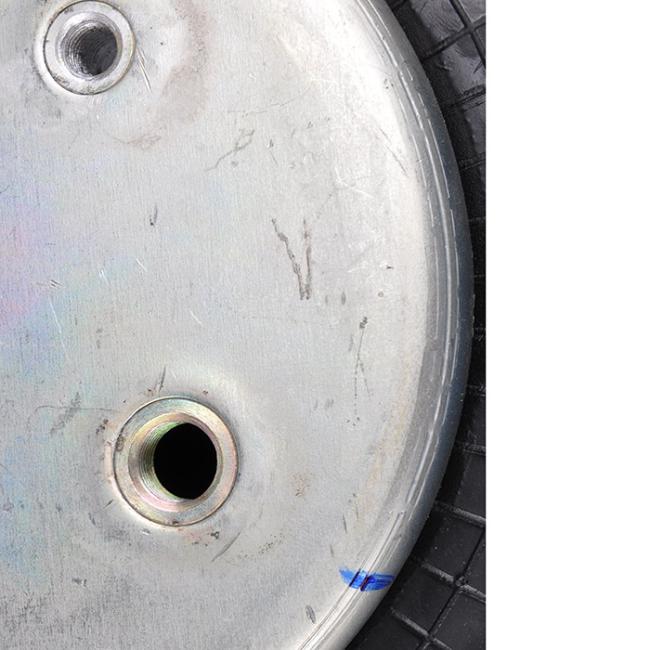

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 4
Screw center distance between air hole and nut: 44.5 mm

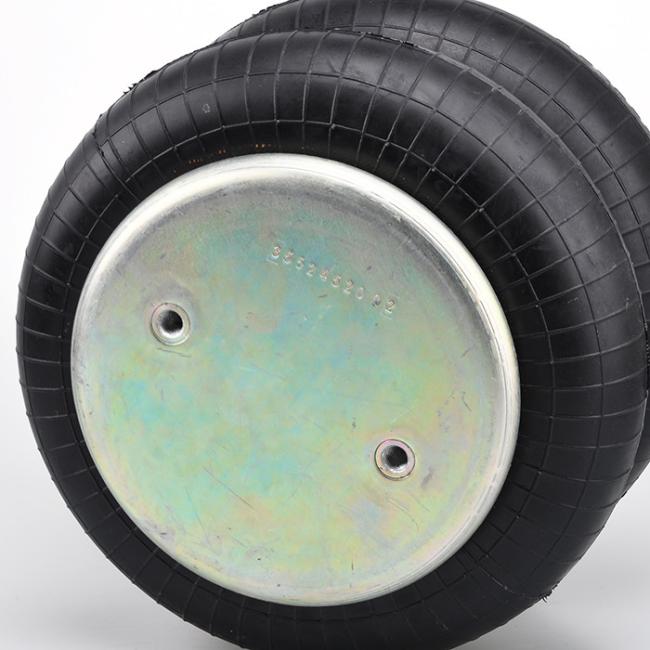

❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

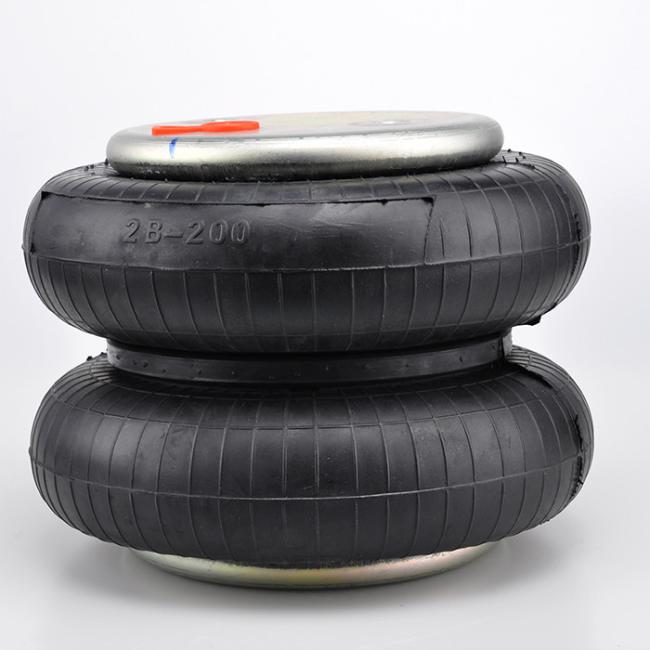

Bell rubber bellows
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 224 mm
Working stroke: minimum 75 mm to maximum 260 mm
Maximum height: 274 mm
Minimum height: 95mm
Stroke height: 179mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop
