4xm10 Air Spring Shock Absorber 3B7383 8NPT Triple Bellow Air Bag
Industrial Air Springs 4xm10 Screw Guomat No. 3b7383-3/8 Bellow No. 3b383 Natural Dia. 351mm
3B7383-3/8 Technical Parameters
Nut / Blind Nut

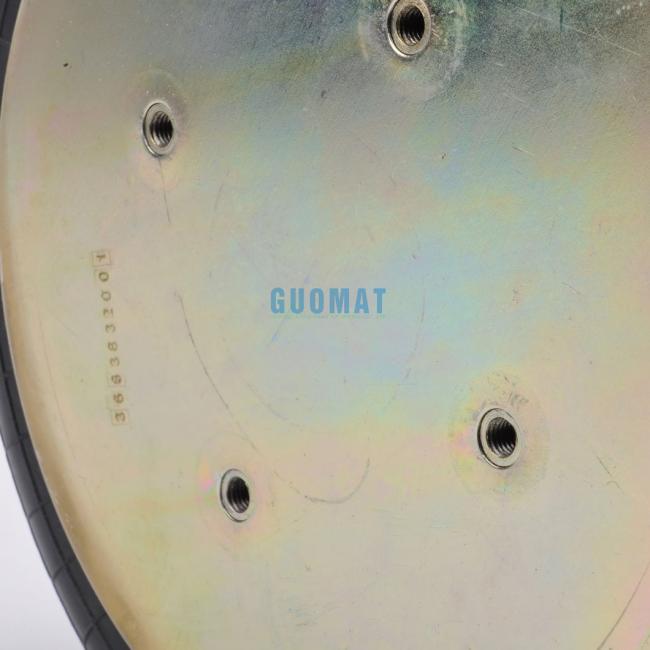

Top Cover Plate Screw (Nut) Tooth : 4pcsXM10
Screw Center Distance of Top Cover Plate : 140mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsXM10
Screw Center Distance of Bottom Cover Plate : 140mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8NPT

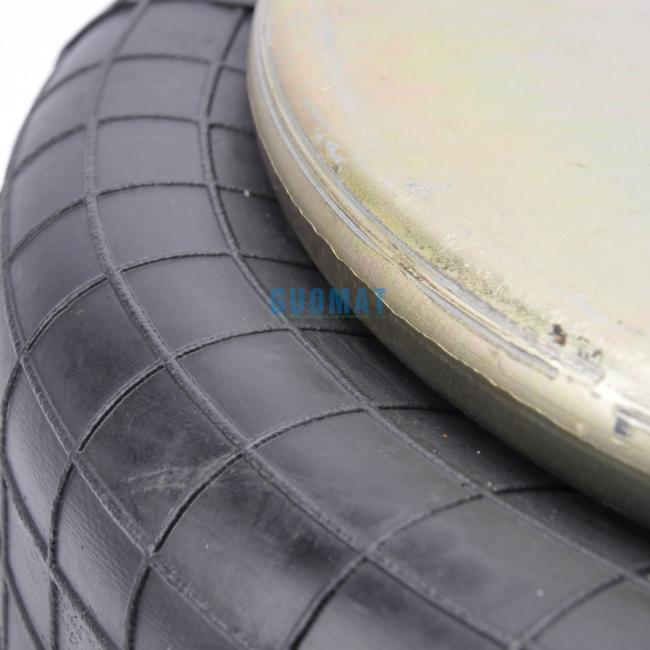

Cover Plate
Top Cover Plate Diameter: 289 mm
Bottom Cover Plate Diameter: 289 mm

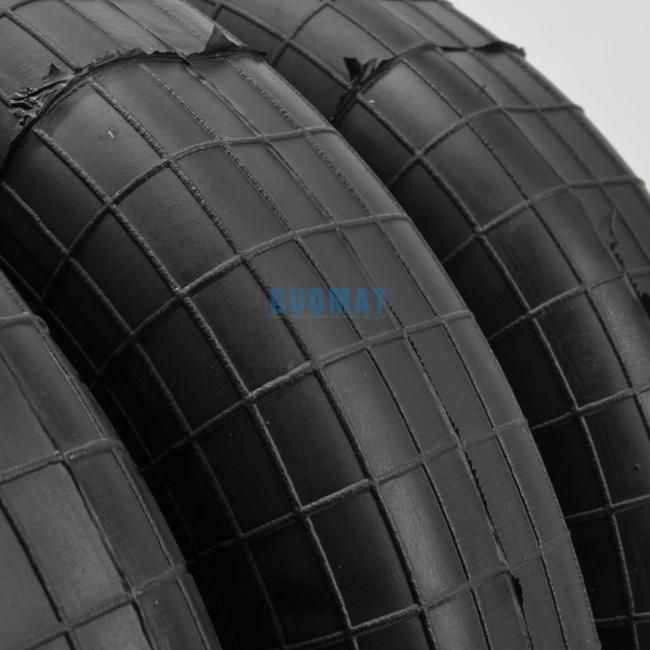

Rubber Bellows
Rubber Bellows MAX Diameter: 405 mm
Rubber Bellows Natural Diameter :353 mm
The Working Stroke : MAX 460 mm to MIN 110 mm
Maximum Height : 460 mm
Minimum Height :110 mm
Compression Height : 350 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Pneumatic application - static eigenvalue force F [kN]
| pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | vol V[l] |
|
height H [mm]
|
380 | 17.7 | 23.8 | 30.0 | 36.4 | 42.9 | 49.1 | 31.0 |
| 300 | 21.3 | 28.4 | 36.1 | 43.4 | 50.7 | 58.0 | 25.4 | |
| 220 | 24.3 | 32.3 | 40.4 | 48.5 | 56.6 | 64.6 | 19.4 | |
| 140 | 27.3 | 36.3 | 45.4 | 54.5 | 63.4 | 72.0 | 12.4 |
