W013587405 Air Actuator Double Convoluted Firestone Long Travel Airbags
Firestone Air Bags W013587405 Air Suspension for Avoid Vibration and Metal Forming to Damage The Equipment
| Manufacturer Cross OEM Reference | Vehicle Cross OEM Reference |
|
Firestone : W01-358-7405,Firestone Bellows Number:22 Firestone : W01 358 7405,Firestone Bellows Number:22 Firestone : W013587405,Firestone Bellows Number:22 |
Leland : Sc2073 |
|
Contitech : FD 330-22 364 Contitech :FD 330 22 364 Contitech :FD 33022 364 |
Navistar : 1685177C1 |
|
Goodyear :2B12-313 Goodyear :2B12-459 Goodyear :2B12313 Goodyear :2B12459 Goodyear :2B12 313 Goodyear :2B12 459 |
Arvin Meritor : 200981 |
|
Goodyear Rubber Bellows :578923309 Goodyear Rubber Bellows :578-92-3-309 Goodyear Rubber Bellows :578 92 3 309 |
Hutchens : H-10384-01 |
| Triangle Part Number:4364 | SAF Holland : 57007405 |
| Triangle Bellows Number:6316 | Firestone Top Plate Number:3235 |
| Dayton : 3547405 | Firestone Piston Number:3256 |
| Suspensions Inc. Number200981 | Firestone Bellows Number:22 |
Air suspension supplier: Arvin Meritor
Cross others/vendor number: 200981
Air Spring Supplier: Dayton Parts
Cross others/vendor number: 3547405
Suspension supplier: Hutchens
Cross others/vendor number: H1038401
Suspension supplier: Leland
Cross others/vendor number: SC2073
Air suspension supplier: Navistar
Cross others/vendor number: 1685177C1
Air suspension supplier: SAF Netherlands
Cross others/vendor number: 57007405
Suspension supplier: Suspension Company
Grounded Firestone: w013587405
Air Spring Supplier: ContiTech
Cross others/vendor number: FD33022364
Air spring supplier: Goodyear
Reference: 578923309
Cross others/vendor number: 2B12313
Air spring supplier: Goodyear
Cross others/vendor number: 2B12459
Air Spring Supplier: Triangle
Reference: 6316
Cross others/vendor number: 4364
Technical Parameters of AIRSUSTECH 2B7405:
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/4-16UNF
Screw Center Distance of Top Cover Plate : 140 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Center Distance Between air inlet and Nut : 140 mm
Air Inlet Combine With One Nut
Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Top Cover Plate Number: 3235
Bottom Cover Plate Number: 3256
Rubber Bellows
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Assembly Weight: 6.9 kg

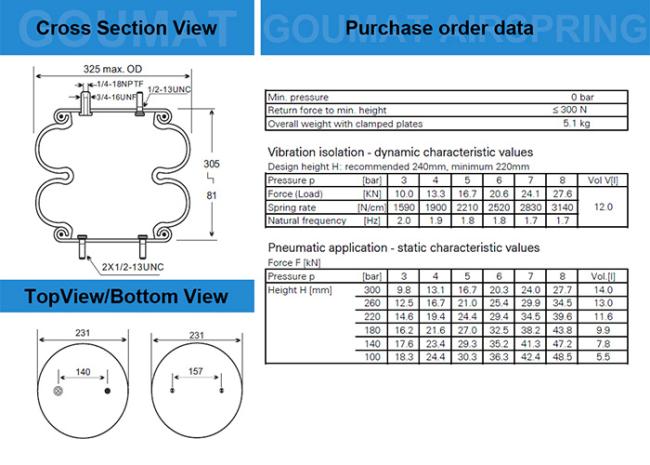

The drawing and data of AIRSUSTECH 2B7405 air spring:
