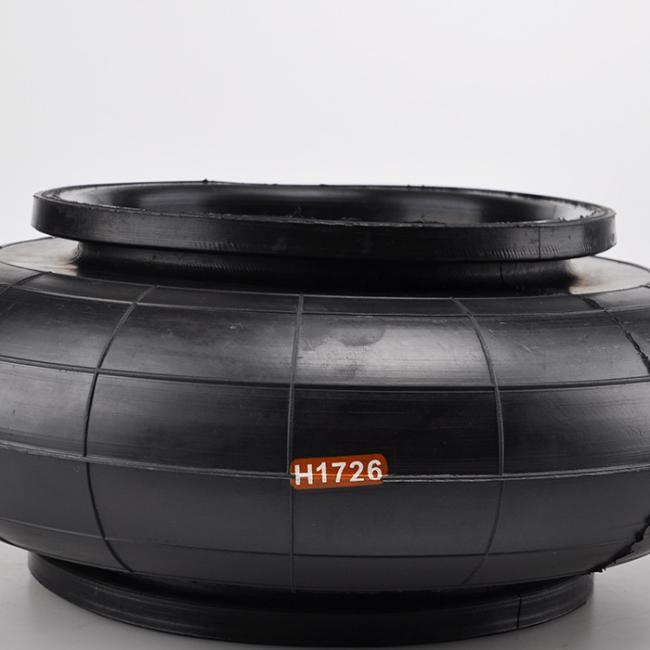

88540 Air Spring H1726 Ride Rite Air Helper Springs Gas Filled

Price Negotiable
Price: Negotiable
MOQ: 3 pieces
Delivery Time: 3-8 Working Days
Brand: AIRSUSTECH
Product Description

  Air Spring Model 110 Standard Code 88540 Max OD 210 MM Connection F1​







AIRSUSTECH 1H210110 Cross OEM Original Equipment Manufacturer:



AIRSUSTECH Part Number:1H210110

Air Spring: MODEL 110

Air Spring:Standard Code 88540





AIRSUSTECH Part Number:1H210110 Specifications



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 6 pcs X M 8 x 1.25

Screw Center Distance of Top Cover Plate : 118 mm

Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M 8 x 1.25

Screw Center Distance of Bottom Cover Plate : 118​ mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Screw Center Distance Between Gas Hole and Nut : 59 mm



Cover Plate

Top Cover Plate Diameter: 131mm

Bottom Cover Plate Diameter: 131mm



Rubber Bellows

Rubber Bellows MAX Diameter: 210 mm

Rubber Bellows Natural Diameter : 180 mm

The Working Stroke : MIN 45 mm to MAX 145mm

Maximum Height : 145mm

Minimum Height :45 mm

Stroke Height : 100mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop







How to improve the abrasion resistance of air spring AIRSUSTECH AIRSUSTECH 1H210110 refer to Air Spring Model 110 Standard Code 88540 rubber airbag?



Nowadays, the quality of China AIRSUSTECH AIRSUSTECH 1H210110 refer to Air Spring Model 110 Standard Code 88540 air spring is getting better and better, with a service life of several years. China AIRSUSTECH AIRSUSTECH 1H210110 refer to Air Spring Model 110 Standard Code 88540 The gap between air springs and imported air springs is getting smaller and smaller.



Proper use and maintenance are ways to extend the life of air spring AIRSUSTECH AIRSUSTECH 1H210110 refer to Air Spring Model 110 Standard Code 88540. Maintenance can extend the life of air springs. This must be based on the excellent quality of air spring rubber airbags. What are the methods in the production process? The service life of the air spring can be improved. What is the abrasion resistance of the air spring rubber bladder? In addition to the most basic work in the vulcanization process, the following points need to be paid attention to: 1. The smaller the particle size of ordinary fillers, the lower the dispersibility, surface activity and structural structure, and the worse the wear resistance. The best dosage is 90-100 parts of BR, 60-70 parts of oil-extended SBR, 55 parts of 50-SBR and IR, and 45-50 parts of NR.
