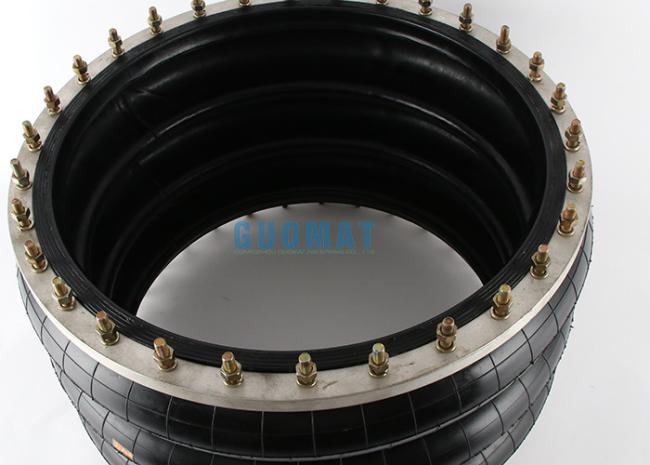

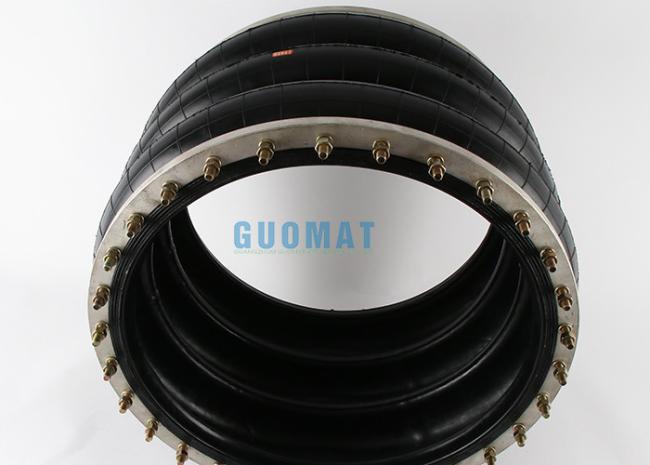

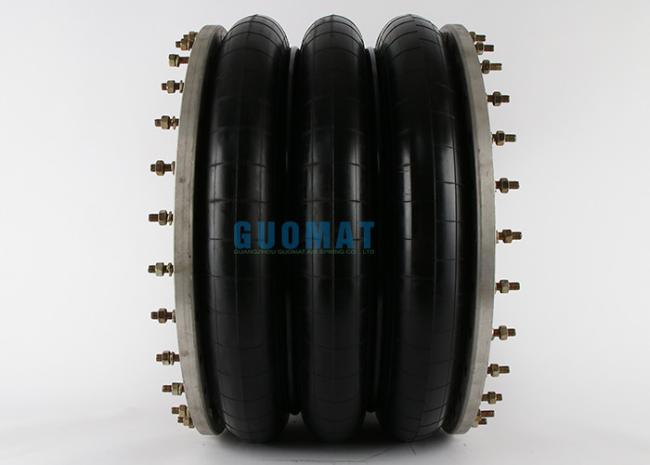

W01-358-7761 Firestone Air Bags Style 312 Rubber Bellows W01-358-7914

W01-358-7761 Firestone Air Bags Style 312 Rubber Bellows Only W01-358-7914

OEM CROSS AIRSUSTECH 3H7761 Convoluted Air Spring:

Manufacturer Brand:AIRSUSTECH

Manufacturer ID:3H7761

Firestone Style 203
Two Ply Bellows
Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
Firestone ID:W01-358-7761

Firestone ID:W01 358 7761

Firestone ID:W013587761

Firestone part number W013587761
Part number changes: W01-358-7761, WO13587761, WO1-358-7761

Contitech part number FT 960-34 RS UNF

Contitech part number FT960-34 RS UNF

Contitech part number FT96034 RS UNF
Additional information: WO1-358-7761, type 312C air spring, 4 ring/7 aluminum ball 8" bolts, nuts and washers

Specifications of  AIRSUSTECH 3H7761:

Maximum diameter @ 100 PSIG (inch)
18.2
Maximum height (inch)
14.9
Maximum stroke (inch)
10.4
Minimum usable height (inches)
4.5
Force at 1 inch (lb) stroke @ 80PSI
15,700
Force at a stroke of 3 inches (lbs) @ 80PSI
14,200
Force at maximum stroke @ 80PSI (pounds)
8740
Style cross-reference equivalent high-intensity style number
314
Material
2-layer standard line
End cap details
Bead type
4
Bolt circle diameter (inch)
13.81
Number of bolts (per ring)
18
Air isolator
Design height
13
Load (at design height): 40 psig (lbs)
5100
Load (at design height): 60 psig (lbs)
7930
Load (at design height): 80 psig (lbs)
10730
Natural frequency (@80 psig) (cpm)
80
Isolation percentage at mandatory frequency 400 CPM
95.8
Isolation percentage at mandatory frequency 800 CPM
99
Isolation percentage at mandatory frequency 1500 CPM
99.7
