Style 314 High Strength Bellows Firestone Air Spring W01-358-8003 W01-358-7926

Price Negotiable

Price: Negotiable

MOQ: 3 pieces

Delivery Time: 3-8 Working Days

Brand: AIRSUSTECH

Product Description

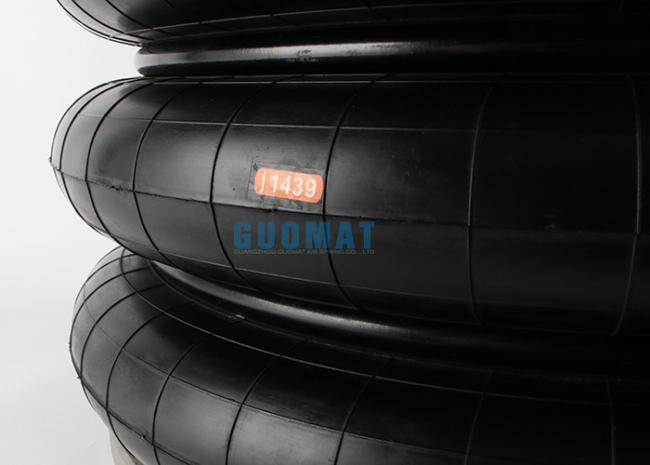

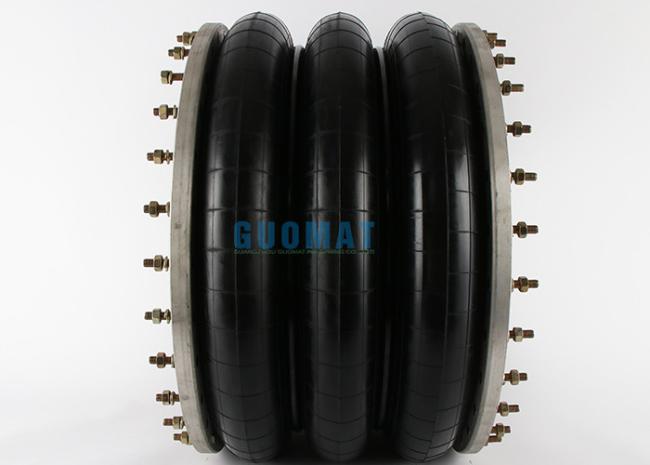

Style 314 High Strength Bellows W01-358-7926 Firestone Air Spring W01-358-8003

Specifications of AIRSUSTECH 3H7926 :

Maximum diameter @ 100 PSIG (inch)	462.28	Force at maximum stroke @ 80PSI (pounds)	8740
Maximum height (inch)	378.46	Style cross-reference equivalent high-intensity style number	314
Maximum stroke (inch)	264.16	Material	2-layer standard line
Minimum usable height (inches)	114.3	End cap details Bead type	4
Force at 1 inch (lb) stroke @ 80PSI	15,700
Force at a stroke of 3 inches (lbs) @ 80PSI	14,200
		Number of bolts (per ring)	18
Isolation percentage at mandatory frequency 400 CPM	95.8	Air isolator
Isolation percentage at mandatory frequency 800 CPM	99	Design height	13
Isolation percentage at mandatory frequency 1500 CPM	99.7	Load (at design height): 40 psig (lbs)	5100
Load (at design height): 80 psig (lbs)	10730	Load (at design height): 60 psig (lbs)	7930
Natural frequency (@80 psig) (cpm)	80

OEM CROSS AIRSUSTECH 3H7926 Convoluted Air Spring:

Manufacturer Brand:AIRSUSTECH

Manufacturer ID:1H 7926

Firestone Style 314
Two Ply Bellows
Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w

Firestone ID:W01-358-7926

Firestone ID:W01 358 7926

Firestone ID:W013587926

Firestone part number W013587926

Firestone Part number : W01-358-7926,

Firestone Part number : WO13587926,

Firestone Part number : WO1-358-77610

Contitech part number FT 960-34 RS UNF

Contitech part number FT960-34 RS UNF

Contitech part number FT96034 RS UNF

Additional information: WO1-358-7926, type 312C air spring, 4 ring/7 aluminum ball 8" bolts, nuts and washers

Stroke max: 343mm
max.load at 7bar: 90.31kN
max diameter at 7 bar: 462mm
Height max: 457mm
Height min: 114mm
Recommended max working height: 360mm
Clamping ring diameter: 384mm
Mounting bolts: M10, 18 bolts
Temperature range: -40 to + 70 ° C
