W01-358-7040 Industrial Air Springs Style 19-.75 Airmount Isolator For Check Valve Lapping
W01-358-7040 Industrial Air Springs Style 19-.75 Airmount Isolator For CHECK VALVE LAPPING
1B7040 OEM Original Manufacturer:
Goodyear Original:1B12-313
Goodyear Original:1B12 313
Goodyear Original:1B12313
Firestone Part Number:W01-358-7040 ,
Firestone Part Number: W01 358 7040 ,
Firestone Part Number:W013587040 ,
Firestone Part Number:W01-358-7040,
Firestone Part Number:W013587040,
Firestone Part Number:WO1-358-7040,
Firestone Part Number:WO13587040
ContiTech Part Number:64596,
ContiTech Part Number:FS330-11474
ContiTech Part Number:FS330 11474
ContiTech Part Number:FS 330-11474
ContiTech Part Number:FS 330-14 CI 1/4 NPT OS
ContiTech Part Number:FS330-14 CI 1/4 NPT OS
ContiTech Part Number:FS330-14CI 1/4 NPT OS
ContiTech Part Number:FS 330-14 CI 1/4 NPT
ContiTech Part Number:FS330-14 CI 1/4 NPT
ContiTech Part Number:FS330-14CI 1/4 NPT
Neway 90557226
Manufacturer: Goodyear
Origin: Mexico
Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.

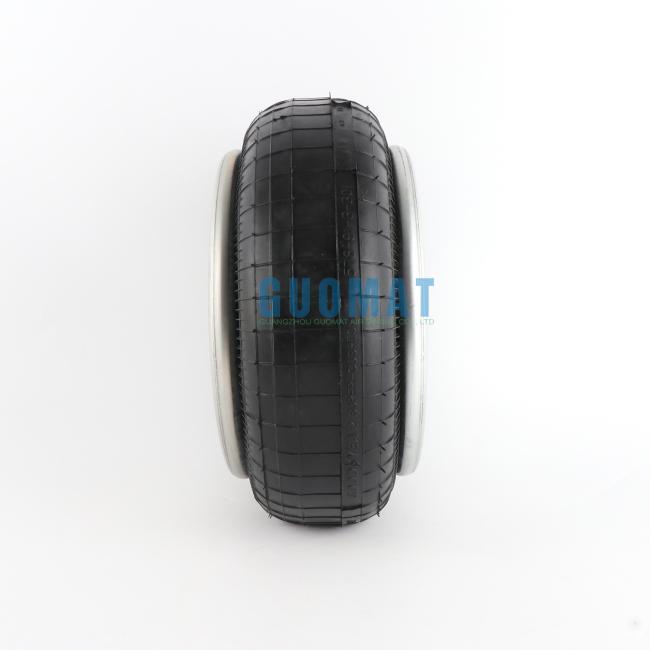

1B12-313 Goodyear single bellows air spring
Goodyear Part number: 1B12-313
Bellows type: single
Ultraman bellows Part number: SP1B22A
Firestone bellows Part number: Not applicable
Goodyear Bellows number: 578-91-3-301
Contitech bellows Part number: FS 330-11
Triangle bellows Part number: 6374
Base plate/neutron type:

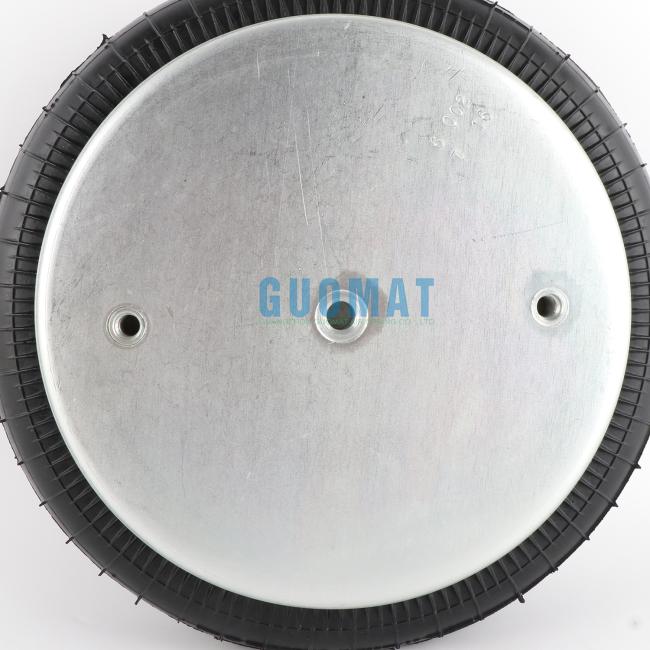

Number of top plate holes/studs: 3
Top plate diameter: 9
Top plate C to C diameter: 6.2
Base plate hole bolt Qyt: 2
Base plate diameter: 9
Diameter of base plate C to C: 6.2
Base plate part number:
Bottom plate alignment: parallel
Bumper: No
bracket:
Minimum height: 2.3
Maximum height: 7.2
Bellows industrial air spring, single-turn, 330 cm2 effective area, 14 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset
| Compressed height | Maximum stroke |
| 2.01" | 5.08" |
| Maximum deployment height | Inlet type |
| 7.09" | empire |
| The maximum diameter | Air inlet |
| 13.5" | 1/4" |
| Maximum inflation pressure | series |
| 120 psi | C |
| Bellows type | lowest temperature |
| Single twist | -76°F |
| weight | Maximum temperature |
| 9.48 pounds. | 158 degrees F |

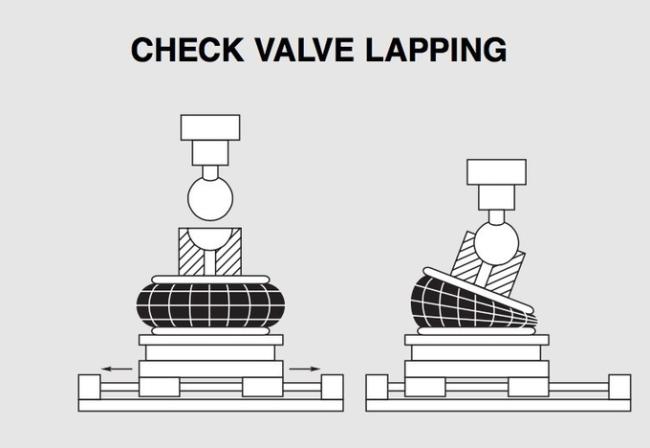

1B7040 Isolator For CHECK VALVE LAPPING:
Application of air spring in the check valve of grinder ／ CHECK VALVE LAPPING:
The check valve of the grinder is characterized by a flange, an aluminum tube, a rubber air spring and a screw fixing plate; an aluminum tube is welded on the flange; a number of grooves are provided on the outside of the aluminum tube; the aluminum A rubber sleeve is installed outside the tube; a number of screw through holes are provided on the rubber sleeve; a screw fixing plate is installed on the rubber sleeve; a number of through holes are provided on the screw fixing plate; the screw fixing plate passes through The screw is fixedly connected with the rubber sleeve and the aluminum tube. The utility model has a simple structure, convenient use, convenient installation, convenient replacement of parts, and increased service life.
