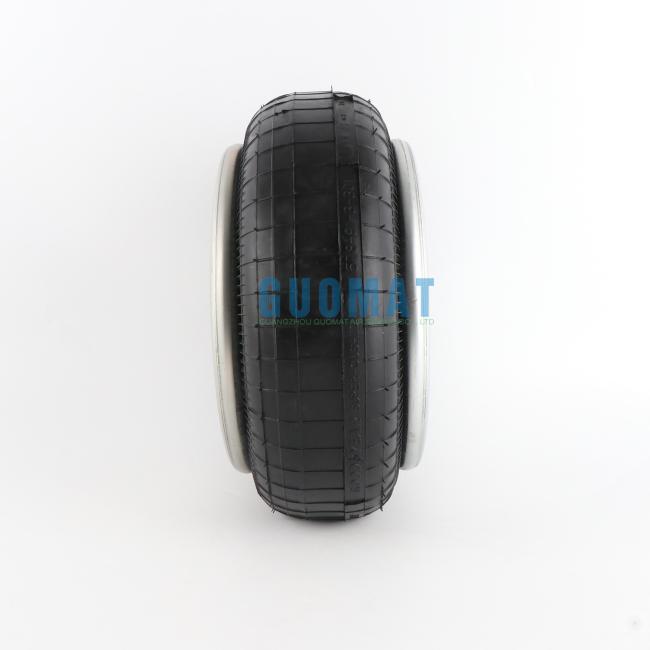

W01-M58-6040 Firestone Air Springs Assembly Metric M8 MAX O.D. 343 mm For Die Stripper
W01-M58-6040 Firestone Air Springs Assembly Metric M8 MAX O.D. 343 mm For DIE STRIPPER
1B6040 OEM Original Manufacturer:
Firestone Part Number:W01-358-6040 ,
Firestone Part Number: W01 358 6040 ,
Firestone Part Number:W013586040 ,
Firestone Part Number:W01-358-6040,
Firestone Part Number:W013586040,
Firestone Part Number:WO1-358-6040,
Firestone Part Number:WO13586040
ContiTech Part Number:64596,
ContiTech Part Number:FS330-11474
ContiTech Part Number:FS330 11474
ContiTech Part Number:FS 330-11474
ContiTech Part Number:FS 330-14 CI G1/4 OS
ContiTech Part Number:FS330-14 CI G1/4 OS
ContiTech Part Number:FS330-14CI G1/4 OS
ContiTech Part Number:FS 330-14 CI G1/4
ContiTech Part Number:FS330-14 CI G1/4
ContiTech Part Number:FS330-14CI G1/4
Neway 90557226
Manufacturer: Goodyear
Origin: Mexico

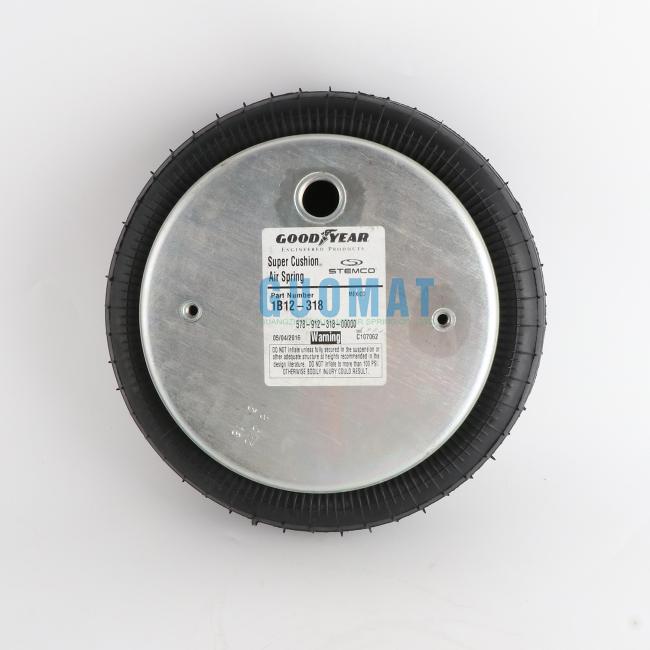

Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.
Bellows industrial air spring, single-turn, 330 cm2 effective area, 14 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset
| Compressed height | Maximum stroke |
| 2.01" | 5.08" |
| Maximum deployment height | Inlet type |
| 7.09" | empire |
| The maximum diameter | Air inlet |
| 13.5" | 1/4" |
| Maximum inflation pressure | series |
| 120 psi | C |
| Bellows type | lowest temperature |
| Single twist | -76°F |
| weight | Maximum temperature |
| 9.48 pounds. | 158 degrees F |
1B6040 Isolator For DIE STRIPPERL:

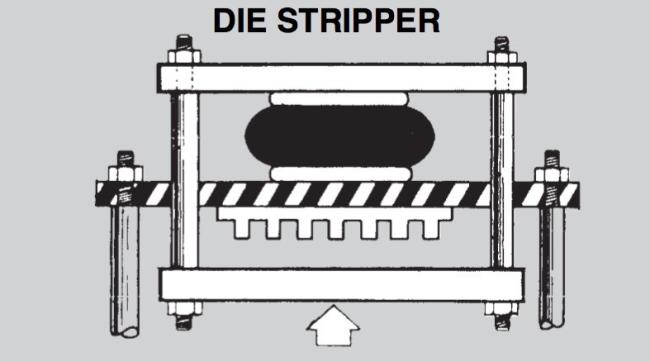

Application of air spring in DIE STRIPPERL:
The air spring stripper is a spring-loaded plate that can be flat or contoured to keep the material flat and close to the lower mold during the cutting process. The air spring release pad installed on the upper die seat surrounds the cutting punch. It is fixed to the upper die using standard pad spools, fixing blocks, shoulder screws or special commercially available guide spools.
Unlike the bridge stripper, the air spring stripper flattens the metal before the punch contacts. This prevents the material from sticking between the cutting punches during entry and exit. In addition, when the punch is withdrawn from the metal and the lower mold, the stripper (still spring loaded) keeps the metal down flush with the lower mold part, so that the cutting punch is completely withdrawn from the metal plate or part in the spring Before the stripper is released.
