94014 Air Spring Connection F2 228.5MM Bellow No. 19 With Thread Air Hole M8x1
Price:
Negotiable
MOQ:
3 pieces
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description

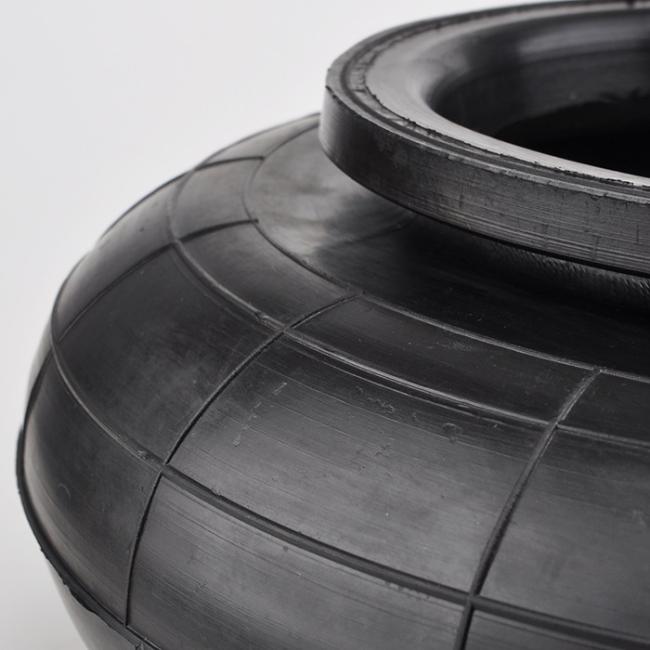

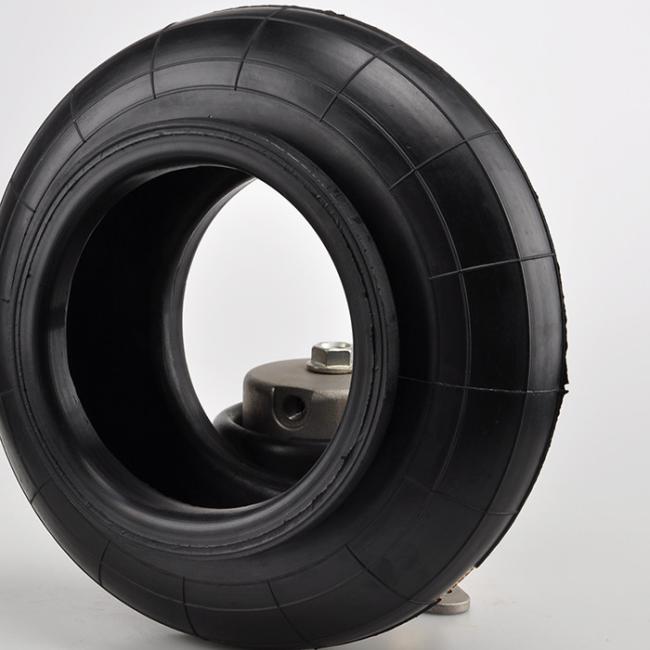

Firestone 94014 Air Spring Connection F2 228.5MM Bellow No. 19 With Thread Air Hole M8x1
AIRSUSTECH 1F5330 Cross other OEM:
| AIRSUSTECH: 1F5330 | AIRSUSTECH: Style 1 |
| 94014 | Style 1 |
| Connection F | TORPRESS MODEL 1 |
| Firestone Rubber bellows only:W013580134 | Firestone Style 1 |
| Firestone Part Number:
W01-358-7023 |
Firestone Rubber bellows only:W01-358-0134 |
| Firestone Part Number:
W013587023 |
Firestone Rubber bellows only:W01 358 0134 |
AIRSUSTECH 1F5330 Specifications and Technical Data
Bottom Cover Plate Screw (Nut) Teeth: M8
Compressed Height: 2.12
Rubber Bellows Maximum Diameter (Max Diameter): 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: max 160 mm min 55 mm
Compressed Height: 2.12"/105mm
Thread Air Hole: 1/2 N PTF
Number of Firestone Bellows: 19
Top Cover Diameter: 247m
Bottom Cover Diameter: 247mm
Screw center distance: 228.5 mm
Top Plate Screw (Nut) Teeth: M8
| STANDARD | HIGH- TEMP | STANDARD | HIGH- TEMP |
| Code | Code | 88544 | 89425 |
| 93029 | 93086 | 89457 | ——— |
| 94047 | ——— | 97300 | ——— |
| 93113 | 93114 | 92154 | ——— |
| 88540 | 93079 | 92527 | ——— |
| 88820 | 89023 | 90559 | ——— |
| 93027 | ——— | 93056 | ——— |
| 94016 | 95015 | 93166 | ——— |
| 94014 | ——— | 95210 | ——— |
| 202665 | ——— | 203332 | ——— |
| 84181 | 89422 | 92615 | ——— |
| 86600 | 88538 | 87987 | ——— |
| 93740 | 90587 | 88110 | |
| 94091 | ——— |
