2B9-250 Goodyear Air Spring Rubber Double Bellow Suspension Air Bags
Goodyear 2B9-250 Air Spring Rubber Double Bellow Suspension Air Bags
OEM NO.
| Firestone |
W01-358-6943 |
| Firestone |
WO13586943 |
| Firestone |
WO1-358-6943 |
| Firestone |
W013586943 |
| FIRESTONE | W01-358-6943 |
| FIRESTONE |
WO13586943 |
| FIRESTONE |
WO1-358-6943 |
| FIRESTONE |
W013586943 |
| Contitech | FD 200-25 426 |
| Contitech | FD 200 25 426 |
| Contitech | FD200-25 426 |
| Contitech | FD 200 25 426 |
| Contitech | FD20025426 |
| Contitech | 161332 |
| Triangle | 6332 |
| Triangle | 4426 |
| Goodyear | 2B9-250 |
| Goodyear | 2B9 250 |
| Goodyear | 578923206 |
| Watson&Chalin | AS-0041 |
| Watson&Chalin | AS 0041 |
| Neway/SAF | 90557237 |
| Ridewell | 1003586943C |
| Tuthill | 6352 |
| Van Raden | |
| V-Steer ll (Lift Bag |
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6943
- Nut/blind nut
Top plate screw (nut) teeth: 2X1/2-13UNF
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-13UNC
The screw center distance of the bottom cover plate: 89 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44.5mm
- Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm
- Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 79 mm
Stroke height: 246mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop
With belt loop: One belt loop
Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 6.0 | 8.1 | 10.2 | 12.3 | 14.4 | 16.5 | 8.6 |
| Spring rate [N/cm] | 730 | 930 | 1200 | 1390 | 1660 | 1840 | |
| Natural frequency [Hz] | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 290 | 4.1 | 5.6 | 7.3 | 9.0 | 10.5 | 12.4 | 9.4 |
| 260 | 5.6 | 7.3 | 9.4 | 11.3 | 13.4 | 15.4 | 8.9 | |
| 230 | 6.6 | 8.8 | 11.1 | 13.4 | 15.8 | 18.1 | 8.4 | |
| 200 | 7.5 | 9.9 | 12.5 | 15.0 | 17.6 | 20.2 | 7.7 | |
| 170 | 8.3 | 11.0 | 13.8 | 16.6 | 19.4 | 22.2 | 7.0 | |
| 140 | 8.9 | 11.8 | 14.8 | 17.7 | 20.7 | 23.6 | 6.1 | |
| 110 | 9.3 | 12.3 | 15.6 | 18.7 | 21.9 | 24.6 | 5.1 | |

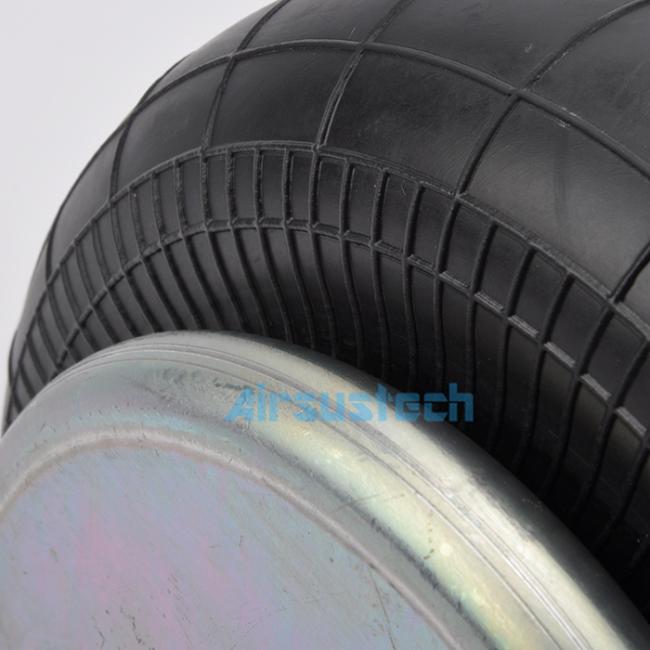

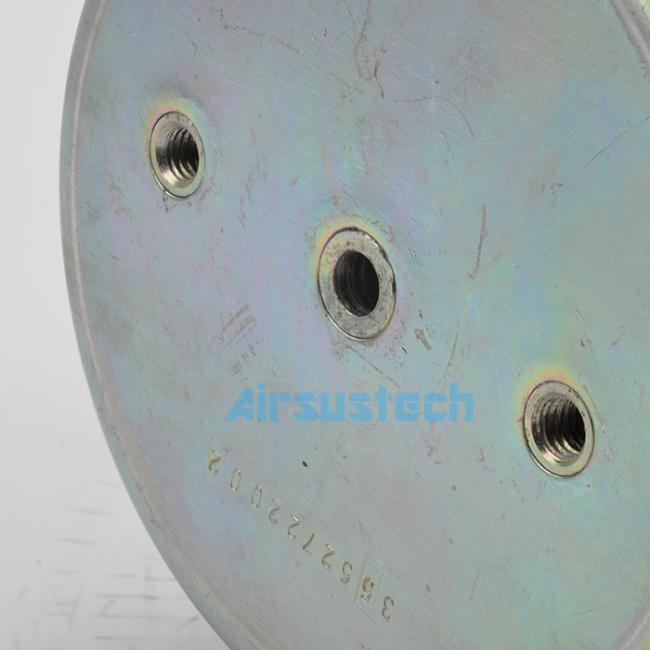

The related picture of 2B6943
