Norgren M/31062 Flange Rubber Two Convoluted Air Spring Shocks For Industrial Machine
Norgren M/31062 Flange Rubber Double Convoluted Air Spring Shocks For industial Machine
OEM NO.
| Norgren | M/31062 |
| Norgren | M 31062 |
| Norgren | M31062 |
| Firestone | W01-R58-4053 - (6 x 2 Steel ) |
| Firestone |
W01-R58-4070 - (6 x 2 Alu ) |
|
ContiTech |
FD 76-14 1/2 M10 |
| ContiTech | FD 76-14 DS G1/2 |
| ContiTech | FD 76-14 DS G1/2 CR |
| ContiTech | FD 76-14 DS CR G1/2 |
| ContiTech | FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR |
| ContiTech Bellow | FD 76-14 / FD76-14 / FD7614 |
Norgren: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Specifications and Detailed Technical Parameters: Norgren M/31062
- Nut/blind nut

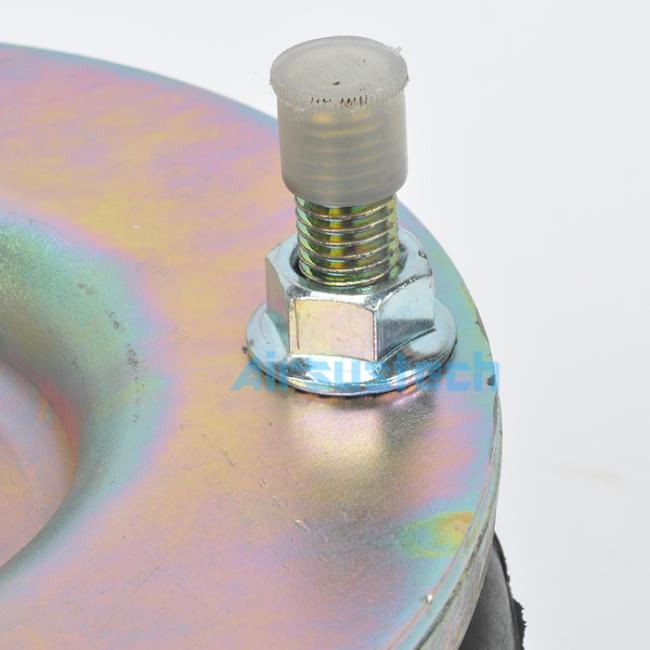

Top plate screw (nut) teeth: 4×M10
Screw (nut) teeth of the bottom cover plate: 4×M10
- Air hole/air inlet/air fittings

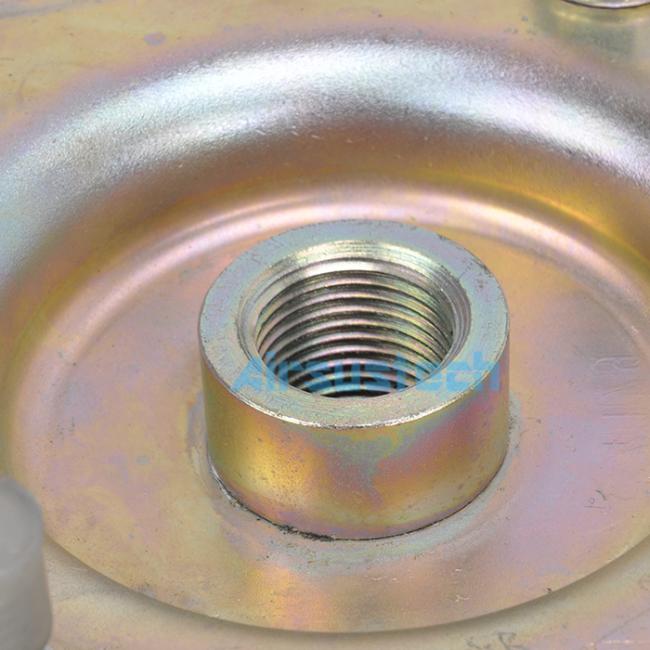

Air hole/air inlet: G1/2
- Rubber Bellows
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate: 153.5 mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 175MM
Rubber bellows stroke: 80mm-195mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop
With belt loop: One belt loop
| Type | Order No. |
| CR Rubber bellows only | 6×2 |
| with dismountable plates, G1/2 air inlet | M/31062 |
Min. pressure: 0 bar
Return force to min.height: ≤180N
Overall weight with clamped plates: 2.6kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 155mm, minimum 145mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 2.7 | 3.7 | 4.7 | 5.7 | 6.7 | 7.8 | 2.0 |
| Spring rate [N/cm] | 650 | 830 | 1015 | 1185 | 1360 | 1530 | |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.3 | 2.3 | 2.3 | 2.2 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 170 | 2.2 | 3.0 | 3.8 | 4.7 | 5.6 | 6.5 | 2.1 |
| 150 | 2.8 | 3.9 | 4.9 | 6.0 | 7.1 | 8.2 | 1.9 | |
| 130 | 3.5 | 4.7 | 5.9 | 7.1 | 8.4 | 9.7 | 1.7 | |
| 110 | 4.1 | 5.4 | 6.8 | 8.2 | 9.6 | 11.1 | 1.4 | |
| 90 | 4.7 | 6.3 | 7.9 | 9.5 | 11.1 | 12.8 | 1.1 | |
