S-240-2R Steel Girdle Ring Air Spring Bellows Double Convoluted Air Bag F-240-2
Price:
Negotiable
MOQ:
3Pieces
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description
F-240-2 Air Bag S-240-2R Steel Girdle Ring Double Convoluted Air Spring Bellows
F-240-2 Technical parameters
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-240-4 | S-240-4 | 206 | 316 | 111 | ±80 | 300 |
| F-240-3 | S-240-3 | 152 | 232 | 82 | ±60 | 300 |
| F-240-2 | S-240-2 | 98 | 148 | 53 | ±40 | 300 |
| F-240-1 | S-240-1 | 72 | 110 | 40 | ±30 | 340 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-240-4 | S-240-4 | 450 | 10.1 | 22.2 | 235 | 1.6 | 0.88 | 2.9-3.9 |
| F-240-3 | S-240-3 | 450 | 7.3 | 22.2 | 324 | 1.9 | 0.88 | 2.9-3.9 |
| F-240-2 | S-240-2 | 450 | 4.4 | 22.2 | 520 | 2.4 | 0.88 | 2.9-3.9 |
| F-240-1 | S-240-1 | 450 | 3.5 | 22.2 | 765 | 2.9 | 0.69 | 2.9-3.9 |
Packaging Information:
Net Weight:2.8 KG
Gross Weight:3.3 KG
Package Size:120mm*295mm*295mm

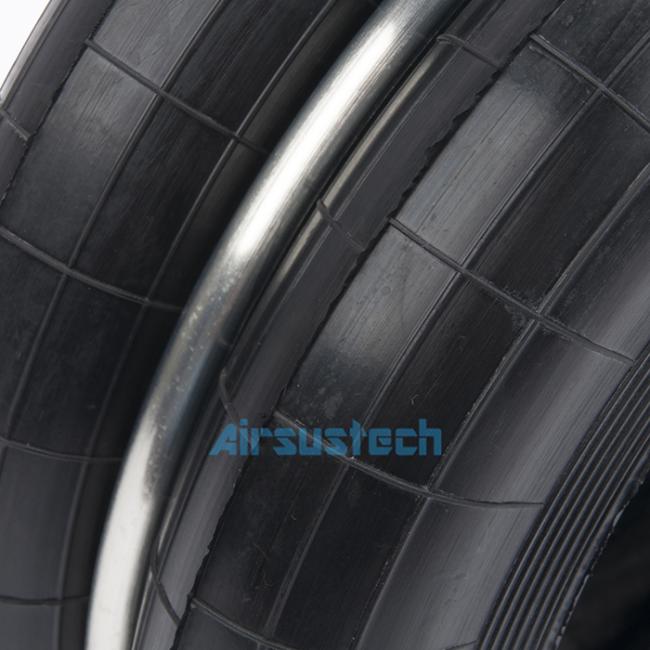

The related picture of F-240-2
Other Types:
| Model NO. | OEM NO. |
| F-350-4/S-200-3 | YOKOHAMA S-350-4/S-200-3/S-100-3/S-90-3 |
| F-240-4R | YOKOHAMA S-240-4R |
| M-120-2 | YOKOHAMA S-120-3R |
| MB-90-3 | MB-90-3 |
| 4B4001 | 100, 4B400 |
| F-350-3 | YOKOHAMA S-350-3R |
| F-120-2 | YOKOHAMA S-120-2R |
| F-120-3 | YOKOHAMA S-120-3R |
| F-100-3 | YOKOHAMA S-100-3R |
| F-100-2 | YOKOHAMA S-100-2R |
| F-200-2 | YOKOHAMA S-200-2R |
| F-240-3 | YOKOHAMA S-240-3R |
| F-450-4 | YOKOHAMA S-450-4R |
| F-200-3 | YOKOHAMA S-200-3R |
| F-160-4 | YOKOHAMA S-160-4R |
| F-160-3 | YOKOHAMA S-160-3R |
| F-160-2 | YOKOHAMA S-160-2R |
| F-240-2 | YOKOHAMA S-240-2R |
| F-300-3 | YOKOHAMA S-300-3R |
| F-300-4 | YOKOHAMA S-300-4R |
| F-350-2 | YOKOHAMA S-350-2R |
| F-400-3 | YOKOHAMA S-400-3R |
| F-400-4 | YOKOHAMA S-400-4R |
| F-400-5 | YOKOHAMA S-400-5R |
| F-450-3 | YOKOHAMA S-450-3R |
| F-450-4 | YOKOHAMA S-450-4R |
| F-500-2 | YOKOHAMA S-500-2R |
| F-500-3 | YOKOHAMA S-500-3R |
| F-500-4 | YOKOHAMA S-500-4R |
| F-500-5 | YOKOHAMA S-500-5R |
| F-600-4 | YOKOHAMA S-600-4R |
| F-600-5 | YOKOHAMA S-600-5R |
