Triple Rubber Convoluted Air Spring M/31123 M31123 Norgren Suspsension
Triple Rubber Convoluted Air Spring M/31123 M31123 Norgren Air Suspsension
OEM Cross reference:
Norgen M/31123
Firestone W01-R58-4062
Firestone W01 R58 4062
Firestone W01R5-4062
Contitech : FT412-323
Contitech : FT412 323
Goodyear : C2ECH
Dunlop pneuride: 12X3
Firestone
W01R584062
EKER
42330003
IVE-CO
42107595
Intertruck-A
1700089105
Intertruck-A
1780115003
BlackTech
3C302200P03
BlackTech
3C30F03
BlackTech
3C302P03
Fabio
3DC3002C
Intertruck-S
8400108SX
Lohr
A06030606
Contitech
FT4123212M10
BlackTech
3C302200P01
Air Tech
115005
Dayco
DF12X3
Meritor
MLF7190 I
Templin
T600513
KRAFTIG
FT41232
Winkler
14109800305
Gigant
881204
Dunlop
SP1542
Peters Man
8422861
Goodyear
3B122452
Dunlop
SP2666NB
DAF
M002297
SMB
M002297
Gigant
M002297
Contitech
FT41232
Contitech
FT412321/2M10
| Type | Order number |
| Rubber only | 12×3 |
| With removable top plate and G1/2 air inlet | M31123 |
Specifications and Detailed Technical Parameters: M/31123
- Nut/blind nut
Top plate screw (nut) teeth: 4pcs X M10
Bottom cover plate screw (nut) teeth: 4pcs X M10
- Air hole/air inlet/air fittings

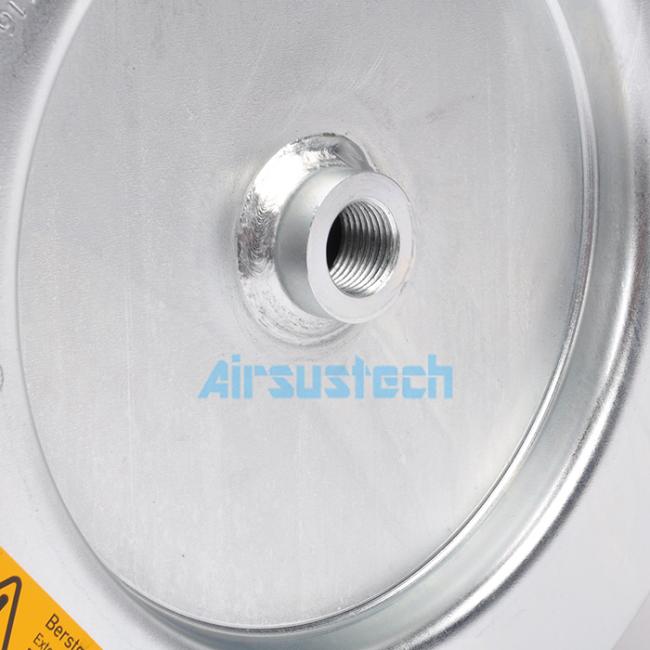

Air hole/air inlet: G1/2
- Rubber Bellows
Top plate diameter (width): 260mm
Diameter (width) of the bottom cover plate: 260mm
Stroke of Rubber Bellows:100mm-430mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop
With belt loop: Two belt loop
Min. pressure: 0 bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 6.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 350 | 9.8 | 13.2 | 16.7 | 20.5 | 24.3 | 28.4 | 17.2 |
| 300 | 12.3 | 16.5 | 20.8 | 25.3 | 29.9 | 34.7 | 15.3 | |
| 250 | 14.4 | 19.3 | 24.2 | 29.4 | 34.5 | 39.9 | 12.9 | |
| 200 | 16.4 | 22.0 | 27.7 | 33.5 | 39.4 | 45.6 | 10.0 | |
| 150 | 18.8 | 25.1 | 31.4 | 37.8 | 44.2 | 50.7 | 7.2 | |

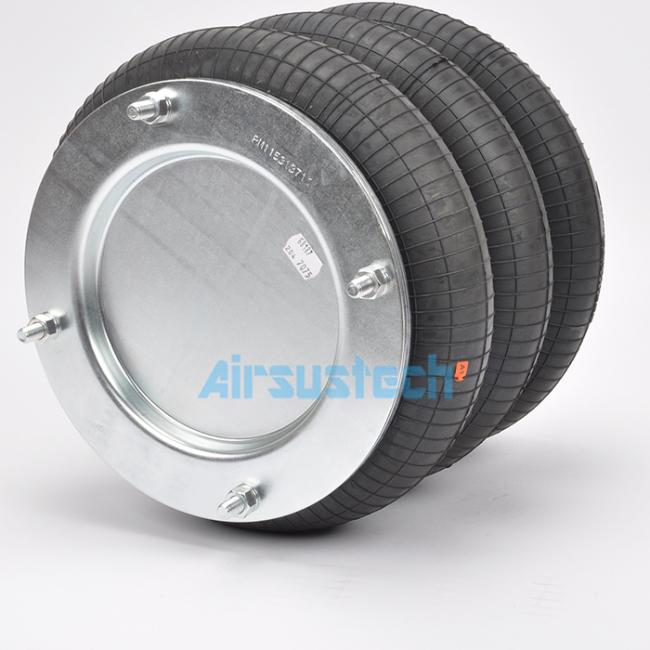

The related picture of M/31123
