Firestone W01-358-7112 Air Spring Assembly 3/4 Gas Filled Rubber One Convoluted
3/4 Gas Filled Rubber One Convoluted Firestone W01-358-7112 Air Spring Assembly
Refer No.
| Cross reference No. | OEM No. |
| Firestone Style 113-1 | Triangle AS-4339 |
| Firestone. W01-358-7112 | TRP AS71120 |
| Firestone. W01 358 7112 | Dayton 354-7112 |
| Firestone. W013587112 | Hendrickson S-13044 |
| FleetPride AS7112 | Loadguard SC2012 |
| Goodyear 1B14 358 | Fleetrite 554782C1 |
| Goodyear 1B14-358 | Ridewell 1003587112C |
| Goodyear 1B14358 | SAF Holland 90557028 |
| Goodyear Flex No. 578913352 | Navistar |
| Taurus 6326 |
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014P01
- Nut/blind nut
Top plate screw (nut) teeth: 4X3/8-16UNC
The screw center distance of the top cover plate: 158.8mm
Screw (nut) teeth of the bottom cover plate: 4X3/8-16UNC
The screw center distance of the bottom cover plate: 158.8 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 3/4NPTF-14NPTF
- Cover plate
Top plate diameter: 289 mm
Diameter of the bottom cover: 289 mm
- Bell rubber bellows
Maximum diameter of rubber bellows: 406 mm
Natural diameter of rubber bellows: 360 mm
Working stroke: minimum 81 mm to maximum 160 mm
Maximum height: 160 mm
Minimum height: 81 mm
- Bumper block/bumper block
No bumper block
- Belt loop/Belt loop
With belt loop: No belt loop
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 6.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 150mm, minimum 120mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 18.6 | 24.9 | 31.5 | 37.9 | 44.4 | 50.8 | 11.0 |
| Spring rate [N/cm] | 3650 | 4410 | 5340 | 6140 | 7220 | 7920 | |
| Natural frequency [Hz] | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 | 2.0 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 160 | 17.1 | 23.0 | 29.0 | 35.0 | 41.2 | 47.3 | 11.8 |
| 140 | 20.0 | 26.8 | 33.7 | 40.6 | 47.7 | 54.5 | 10.7 | |
| 120 | 22.3 | 29.8 | 37.3 | 44.9 | 52.7 | 60.2 | 9.5 | |
| 100 | 24.1 | 31.9 | 40.0 | 48.1 | 56.3 | 64.3 | 8.2 | |
| 80 | 25.3 | 33.4 | 41.9 | 50.3 | 58.8 | 67.1 | 6.6 | |
| 60 | 26.0 | 34.5 | 43.4 | 52.0 | 60.8 | 69.1 | 4.6 | |

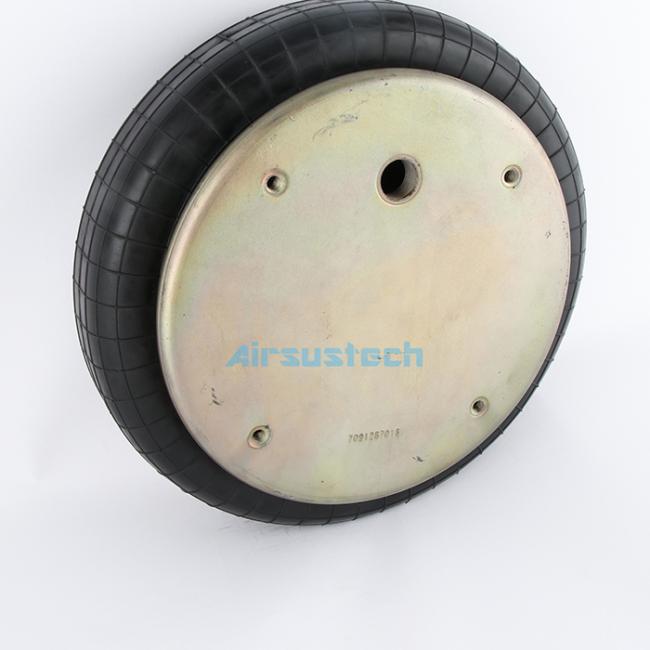

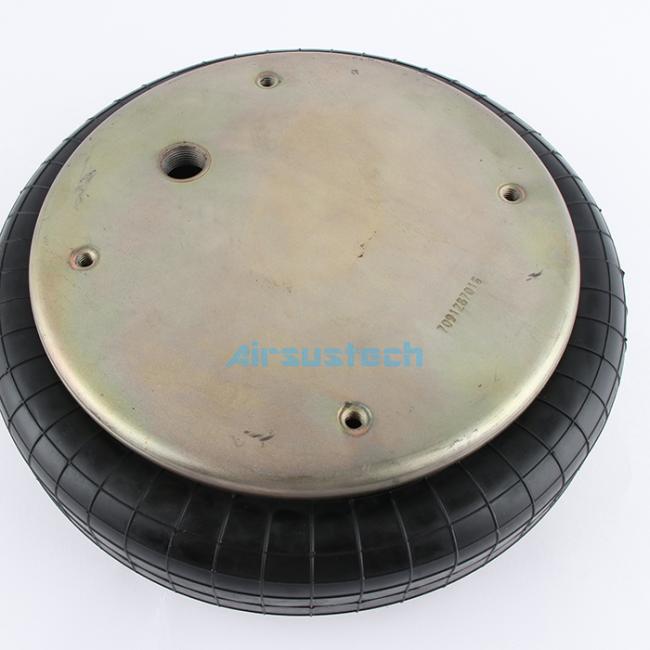

The related picture of 1B53014P01
Application
Large swing machine;
large amusement equipment;
dance speed;
merry-go-round;
washing and dewatering machine;
paper machinery;
leather vibration machinery;
vibration screen;
mining equipment;
pipe equipment;
precision equipment and other industrial equipment
