Industrial 2B6951 Air Bags Cross Firestone Air Spring W01-358-6951 With 160mm Plate
Industrial 2B6951 Air Bags Cross Firestone Air Spring W01-358-6951 With 160mm Plate
Refer No.
| Cross reference No. |
| Firestone. W01-358-6951 |
| Firestone. W01 358 6951 |
| Firestone. W013586951 |
| CONTITECH FD 200-25 |
| CONTITECH FD 200 25 |
| CONTITECH FD 20025 |
| GOODYEAR 556238332 |
| FIRESTONE W01-358-0305/20-2 |
| FIRESTONE W01 358 0305/20-2 |
| FIRESTONE W013580305/20-2 |
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6951
- Nut/blind nut
Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
- Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
- Bell rubber bellows
Rubber Bellow Diameter: 232.5mm
Stroke: 240mm
- Bumper block/bumper block
No bumper block
- Belt loop/Belt loop
With belt loop: one piece of belt loop
Min. pressure: 0 bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 150mm, minimum 120mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 6.0 | 8.1 | 10.2 | 12.3 | 44.4 | 16.5 | 8.6 |
| Spring rate [N/cm] | 730 | 930 | 1200 | 1390 | 1660 | 1840 | |
| Natural frequency [Hz] | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 290 | 4.1 | 5.6 | 7.3 | 9.0 | 10.5 | 12.4 | 9.4 |
| 260 | 5.6 | 7.3 | 9.4 | 11.3 | 13.4 | 15.4 | 8.9 | |
| 230 | 6.6 | 8.8 | 11.1 | 13.4 | 15.8 | 18.1 | 8.4 | |
| 200 | 7.5 | 9.9 | 12.5 | 15.0 | 17.6 | 20.2 | 7.7 | |
| 170 | 8.3 | 11.0 | 13.8 | 16.6 | 19.4 | 22.2 | 7.0 | |
| 140 | 8.9 | 11.8 | 14.8 | 17.7 | 20.7 | 23.6 | 6.1 | |
| 110 | 9.3 | 12.3 | 15.6 | 18.7 | 21.9 | 24.6 | 5.1 | |

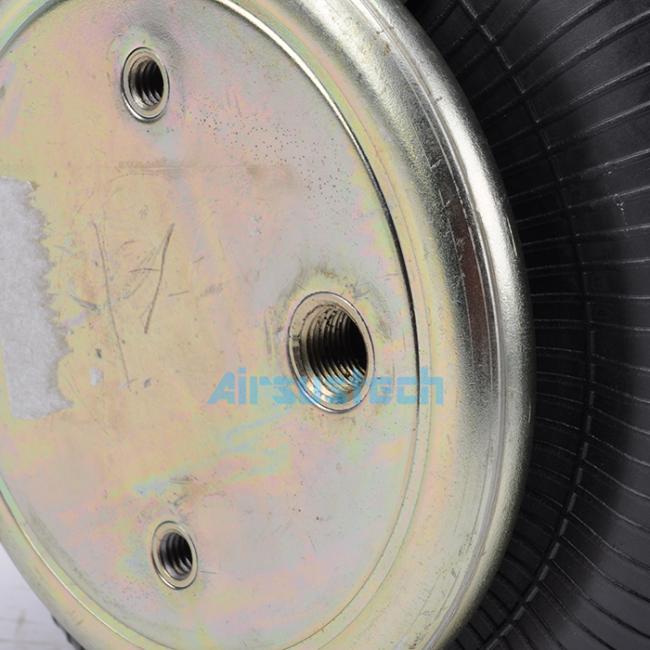

The related picture of 2B6951
About Air Spring
- Air spring has nonlinear characteristics, its stiffness changes with the load, so its natural vibration frequency remains almost constant under any load, so that the spring device has almost constant characteristics; Its absorption of high frequency vibration and sound insulation performance is good; It can bear axial load and radial load at the same time, and different bearing capacity can be obtained by adjusting internal pressure. Therefore, it can adapt to a variety of loads.
- Air spring in the effective stroke, through the method of increasing and decreasing inflation pressure, adjust the stiffness of air spring, height, cavity content product, the size of bearing capacity. At the same time, its stiffness, height, cavity volume and carrying capacity will change smoothly and periodically with the increase and decrease of load, thus realizing flexible transmission of bearing capacity, effective adjustment of stroke and efficient control of vibration amplitude and vibration load. Air chamber can also be attached to achieve automatic adjustment.
Because air spring has the above characteristics, it is increasingly widely used in trains, automobiles, paper machines, lifting platforms, presses, vibration transport planes, vibrating screens, air hammers, vibration testing machines, casting machinery and other equipment or instruments that need to carry out stroke control or shock absorption and isolation.
