1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231

Price Negotiable

Price: Negotiable

MOQ: 3Pieces

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

1/4NPTF Air Inlet Rubber Bellows Double Convoluted Firestone W01-358-5231 Air Spring

Refer No.

Cross reference No.

Firestone. W01-358-5231

Firestone. W01 358 5231

Firestone. W013585231

CONTITECH FD 200-25 453

CONTITECH FD 200 25 453

CONTITECH FD 20025453

Contitech :161336

Goodyear : 2B9-218

Goodyear : 2B9 218

Goodyear : 2B9218

Goodyear : 578923206/2

Triangle : 6332

Triangle : 4453

Leland : Sc2072

SAF Holland : 57006927

Tuthill Technology : 1290601

Reyco : 12906-01

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B5231

Nut/blind nut

Top plate screw (nut) teeth: 1pcsX 3/8-16UNC; 1pcsX 3/4-16UNF

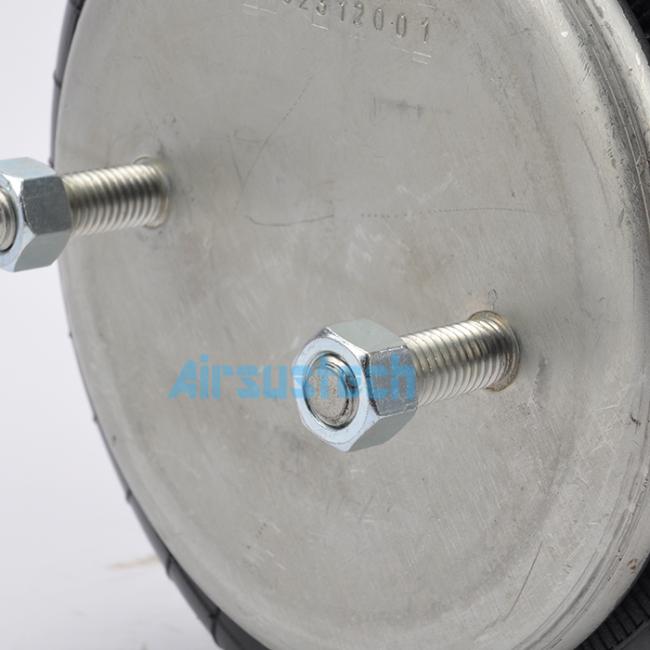

Screw (nut) teeth of the bottom cover plate: 2pcsX3/8-16UNC

The screw center distance of the bottom cover plate: 86mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4 NPTF

Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is in the middle of the top cover

Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160 mm

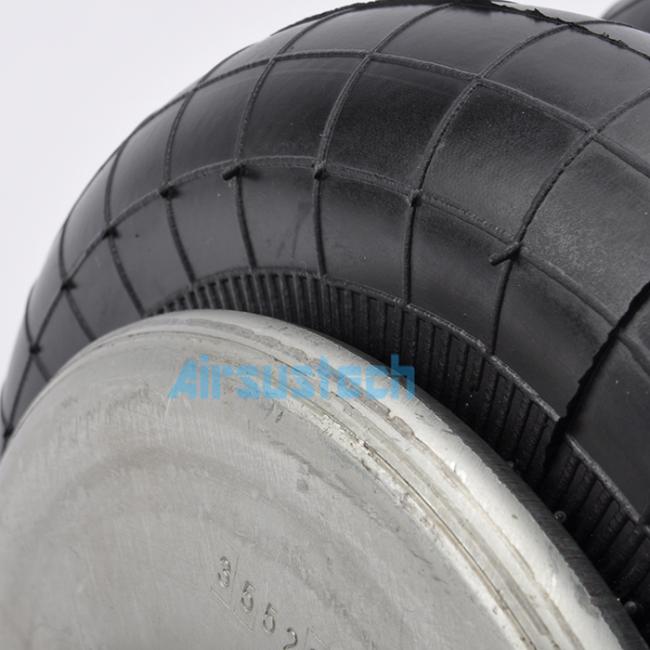

Bell rubber bellows

Rubber Bellow Natural Diameter: 205mm

Max Diameter: 235mm

The Working Stroke: from 85mm to 280mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop

With belt loop: one piece of belt loop

Other Types Of Convoluted Air Spring:

Single Convolutions
Firestone : W01 358 7731	Firestone : W01 M58 6165
Firestone : W01 358 7564	Firestone : W01 358 7598
Firestone : W01 M58 6374	FIRESTONE FLEX 115
FIRESTONE W01 358 0118	Firestone : W01 358 7008
Firestone: W01 358 7009	Firestone. W01 358 7103
Firestone. W01 358 7112
Double Convolutions
FIRESTONE W01 095 0111	FIRESTONE W01 358 7325
FIRESTONE W01 358 7327	Firestone : W01 358 7325
Firestone : W01 M58 6353	FIRESTONE W01 M58 7894
Firestone : W01 358 6926	Firestone : W01 358 6910
Firestone : W01 358 6902	Firestone : W01 358 6927
Firestone : W01 358 6943	Firestone : W01 358 6946
Firestone : W01 358 6945	Firestone : W01 M58 7679/20C2
Firestone:W01 358 6948	FIRESTONE W01 358 6951
FIRESTONE W01 358 6952	Firestone:W01 M58 6944/20-2
Firestone:W01 M58 6891/20-2	FirestoneW01 358 7180/22
FIRESTONE W01 358 0226	FIRESTONE 22T3 095 .0257
FIRESTONE fole 210 095.008	Fireston:W01 358 7400/22
Firestone:W01 358 7405	Firestone:W01 358 7406
Firestone:W01 358 7424	Firestone:W01 358 7545
Firestone:W01 358 7550	Firestone:W01 358 7555
Firestone : W01 358 7136	FIRESTONE W01 358 7146
FIRESTONE W01 358 7143	Firestone:W01 358 7557
Firestone:W01 358 7781	Firestone:W01 095 0289
Firestone. W01 095 0508	Firestone.W01 358 9529
Firestone Style 21D-2
Triple Convolutions
Firestone:W01 358 8008	Firestone:W01 358 8010
Firestone:W01 358 8027/38	Firestone:W01 358 8029
Firestone:W01 358 8030/38	FIRESTONE W01 358 8006
FIRESTONE FLEX 38R/38D	FIRESTONE W01 358 7808
FIRESTONE W01 358 7798	FIRESTONE FLEX 313D
FIRESTONE FLEX 313D	FIRESTONE W01 358 7800
FIRESTONE W01 358 7818	FIRESTONE FLEX 313D
