One Convoluted Dunlop SP2008 Air spring Assembly Firestone W01 R58 4043 Air Rubber Shocks
One Convoluted Dunlop SP2008 Air spring Assembly Firestone W01 R58 4043 Air Rubber Shocks
OEM NO.
Airsustech: 4.5×1
DUNLOP: 4 1/2 X 1 |
Dunlop: SP2008
Dunlop: SP 2008
Dunlop: 4.5x1.Aluminuim
FIRESTONE: W01R584043
FIRESTONE: W01 R58 4043
FIRESTONE: W01-R58-4043
FIRESTONE: WO1R584043
FIRESTONE: WO1 R58 4043
FIRESTONE: WO1-R58-4043
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B4.5×1
| Operation mode | single action |
| Stroke length | 40 mm |
| Stomatal size | G3/8 |
| Nominal diameter | 4-1/2" |
| Working pressure | 0 ... 8 bar |
| Working temperature | -30 ... 50°C |
| Stroke length | 80 mm |
| Theoretical power | 5750 N |
| Certification-REACH | available on request |
| Certification-RoHS compliant | available on request |
| Size-Diameter | 125.0 mm |
| Size-Length | 65.0 mm |
| Size-weight | 0.950 kg |
| Size-Unit of Measurement | EA |
Production air spring steps
1. Rubber mixing: sports and rubber processing
2. Making rubber bellows: usually one layer of rubber inside, two layers of cord in the middle, and one layer of rubber on the outside. Then connect them together by fixing the mold.
3. Use molds to make other molding accessories, such as plastic parts, iron seats, aluminum seats, iron plates and other hardware accessories
4. Bellows and other accessories are mechanically assembled to make air springs.
5. Air tightness test: Fill the produced air spring with air every time, and then put it into water to test whether it is bubbling and leaking.
6. Quality monitoring: blasting test, fatigue test. The blasting pressure of the air spring in the GUOMAT factory is as high as 30 atmospheres, and the fatigue resistance reaches 3 million times, reaching international standards.
7. Packaging and transportation: Qualified products are usually packaged in carton boxes. Some special solid wooden boxes are required, and others are labelled and packaged according to customer requirements.

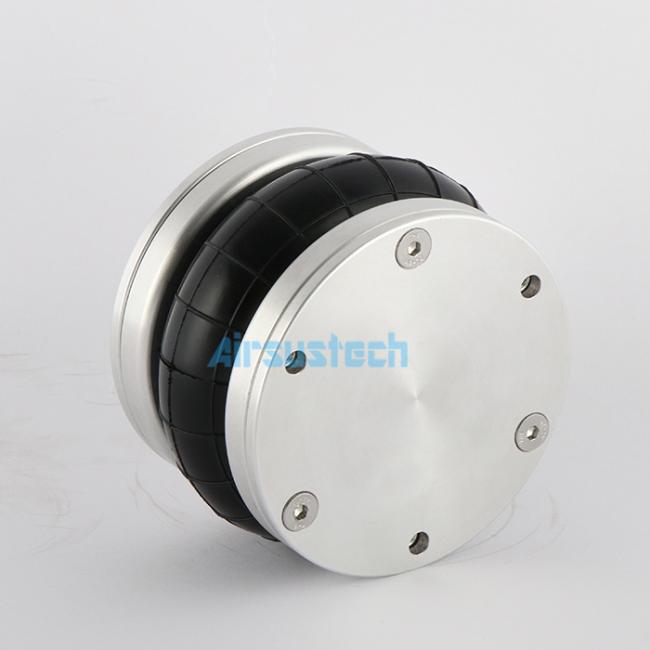

The related picture of 4.5×1
FAQ:
Q1. What is your warranty term?
A:There is a 12months warranty for our export products has run outfrom the date of the shipment.
Q2. Can I use my owm logo and design on products?
A:YES,OEM is welcomed.
Q3.I can not find out the item what I want from your website, can you offer the products I need?
A: YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
