AIRSUSTECH Helper Bags Rubber Double Convoluted M12×1.5 Teeth Refer to 2B7550 Air Spring

Cross reference

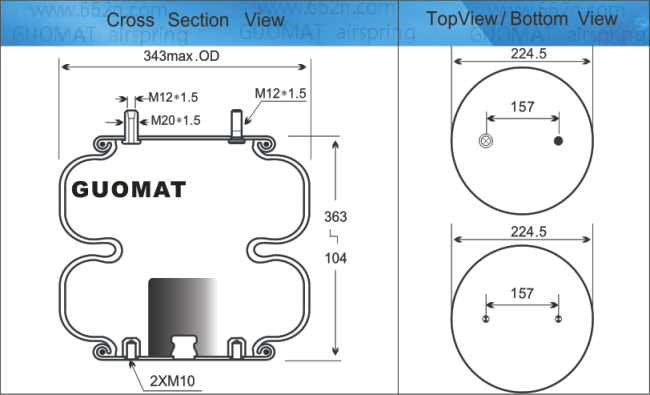

Specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: M12×1.5；M20×1.5

    Top plate screw center distance : 157mm

2. Bottom cover plate screw (nut) teeth: 2 x M10

    Bottom plate screw center distance : 157 mm
2. Air hole/air inlet/air fitting air hole/air inlet: M12×1.5

    The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

4. Rubber bellows Max. diameter: 343mm

5. Min height: 104mm

    Max. height: 363mm

6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Other Double Airride Air Springs we could provide

Use

Air springs are widely used in many industrial industries such as aviation, aerospace, ships, and automobiles. For example, in aviation, the air spring has a large elastic deformation after being loaded, so as to absorb shock and vibration. It can also bear multi-directional loads at the same time, with good shock absorption effect, small resonance area and long service life. Not only has the nonlinear elastic characteristics that the general leaf spring does not have, but also can change the relevant structure to obtain the ideal stiffness characteristics and lower natural vibration frequency.

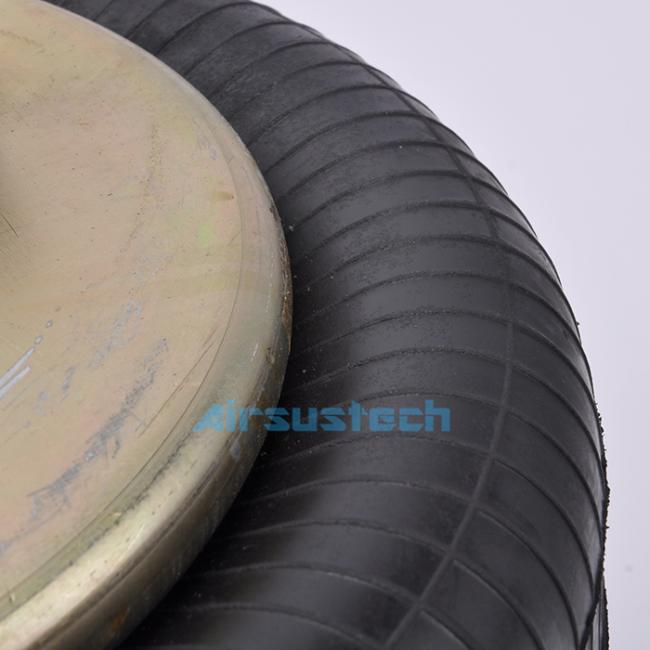

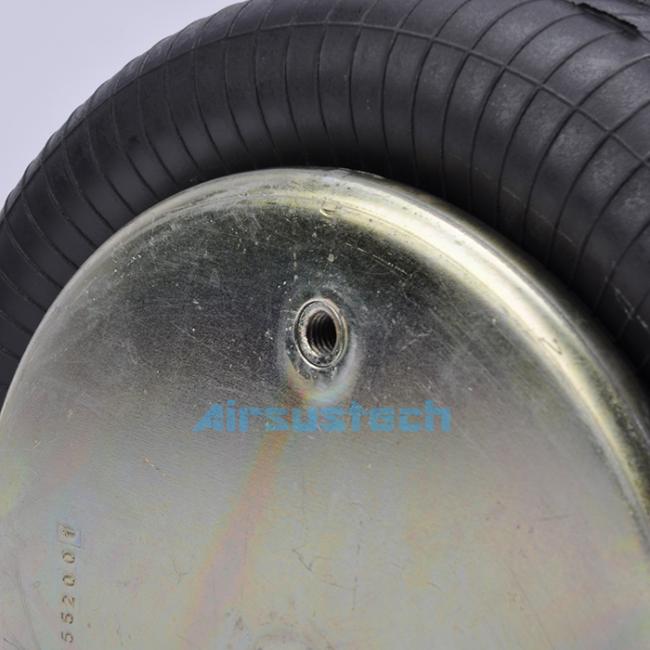

The related picture of air spring/pneumatic cylinder
