Triple Convolutions Industrial Air Spring Contitech FT 22-6 DI CR Rubber Air Actuator
Triple Convolutions Industrial Air Spring Contitech FT 22-6 DI CR Rubber Air Actuator
OEM NO.
Contitech FT 22-6 DI CR
Contitech FT 22 6 DI CR
Specifications and Detailed Technical Parameters
- Nut/blind nut
Top plate screw (nut) teeth: 2×M6
Screw (nut) teeth of the bottom cover plate: 2×M6
- Air hole/air inlet/air fittings
Air hole/air inlet: G1/4
- Rubber Bellows
Top plate diameter (width): 78mm
Diameter (width) of the bottom cover plate: 78mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 80mm
Rubber bellows stroke: 80mm-140m
Required installation space: 95mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop/Girdle hoop
With belt loop: two pieces of belt loop/Girdle Hoop
Min. pressure: 0 bar
Return force to min.height: ≤100N
Overall weight with clamped plates: 0.53kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 130 | 0.43 | 0.60 | 0.76 | 0.94 | 1.12 | 1.31 | 0.25 |
| 110 | 0.72 | 0.96 | 1.21 | 1.46 | 1.71 | 1.96 | 0.21 | |
| 90 | 0.93 | 1.23 | 1.53 | 1.84 | 2.14 | 2.45 | 0.15 | |
Other types Contitech DI Air Spring( Air Bellows) We could offer
|
Size |
Max. Rubber Bellows Diameter |
Rubber bellows stroke |
Air Inlet |
|
FS 22-3 DI CR |
80mm |
50mm-70mm |
G1/4 |
|
FS 44-5 DI CR |
125mm |
50mm-90mm |
G3/8 |
|
FS 76-7 DI CR |
175mm |
55mm-110mm |
G1/2 |
|
FD 22-4 DI CR |
80mm |
65mm-110mm |
G1/4 |
|
FD 44-10 DI CR |
125mm |
65mm-150mm |
G3/8 |
|
FD 76-14 DI CR |
178mm |
80mm-195mm |
G1/2 |
|
FT 44-15 DI CR |
125mm |
90mm-200mm |
G3/8 |
|
FT 76-20 DI CR |
178mm |
100mm-290mm |
G1/2 |
Application range of air spring
Air springs can guarantee the stability of mechanical equipment; improve the self-vibration of mechanical equipment during operation; prolong the service life of mechanical equipment; reduce the wear and tear of mechanical equipment due to vibration. To keep the system stable; to make the system not resonate when disturbed; to stabilize soon after being disturbed. Therefore, it is more and more widely used in the following industrial field:
Power plant (rotary) equipment, such as pipelines, transformers, diesel generators, steam-driven feed pumps, steam turbine generators, condensers, control rooms, fans, coal mills, crushers, water pumps;
Precision instruments, such as three-coordinates, roll grinders, control cabinets, marine precision instruments;
Forging hammer equipment, such as forging hammers, presses, high-speed punches;
Test bench equipment, such as engine test bench, motor vehicle test bench

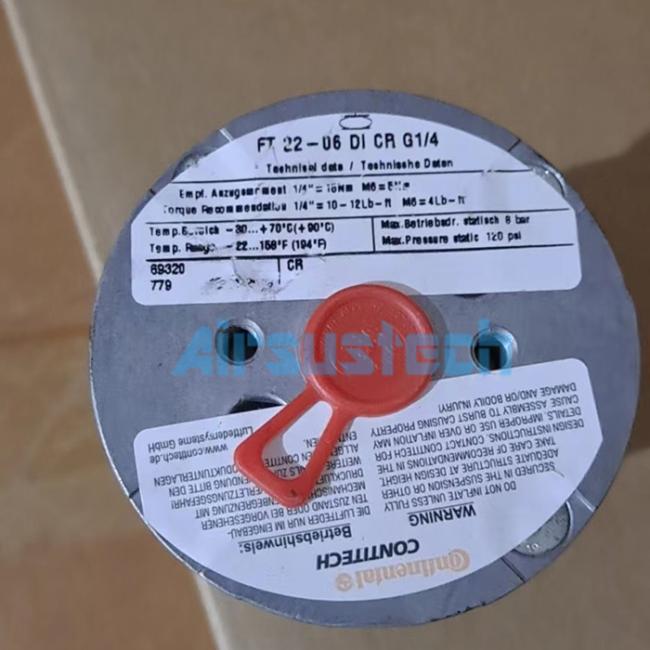

The related picture
