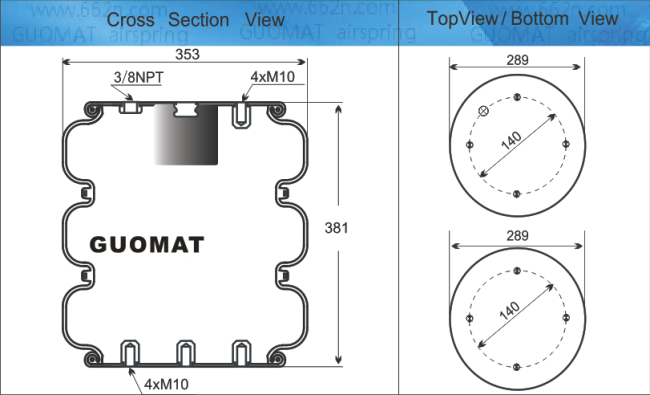

Specifications and Detailed Technical Parameters: 3B6383-38
Nut/blind nut
Top plate screw (nut) teeth: 4×M10
Bottom cover plate screw (nut) teeth: 4×M10

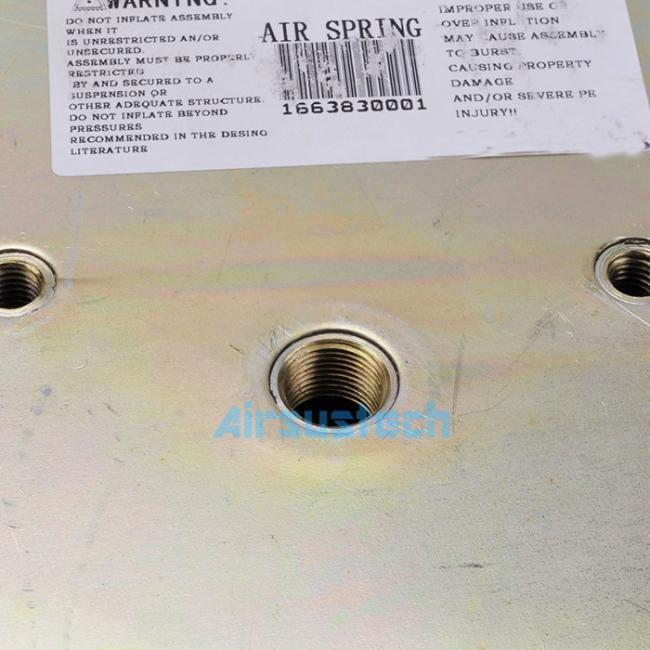

Air hole/air inlet/air fittings
Air hole/air inlet: 3/8NPT

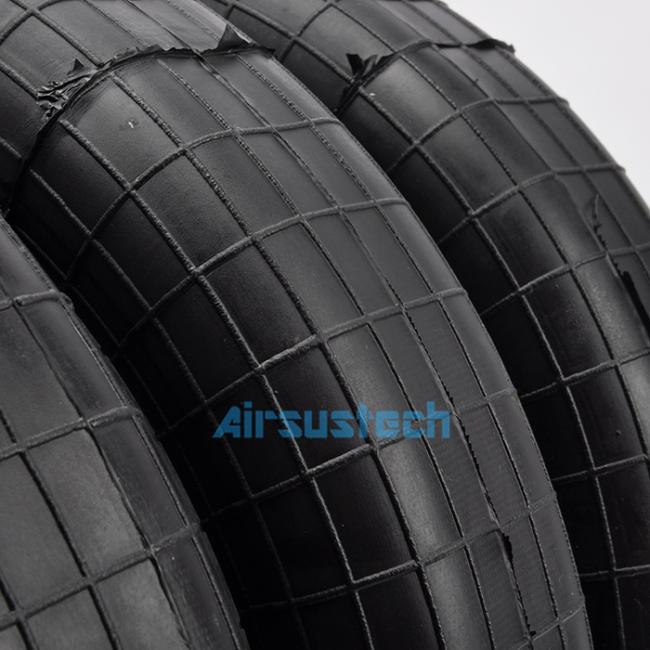

Rubber Bellows
Top plate diameter (width): 289mm
Diameter (width) of the bottom cover plate: 289mm
Rubber Bellows MAX Diameter: 353mm
The Working Stroke: 381mm
Bumper block/bumper block
With bumper block
Belt loop/Belt loop/Girdle hoop
With belt loop: Two pieces of belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Other types
| AIRSUSTECH No. | Contitech No. | Stroke |
| 3B7996 | FT 330-29 520 | 117mm-460mm |
| 3B7994 | FT 330-29 546 | 130mm-460mm |
| 3B7995 | FT 330-29 547/64573 | 130mm-460mm |
3B8008 |
FT 330-29 431 | 297mm |
| 3B8010 | FT 330-29 432 | 297mm |
| 3B8027 | FT 330-29 466 | 117mm-460mm |
| 3B8030 | FT 330-29 498 | 130mm-460mm |
| 3B8006 | FT 330-29 430 | 117mm-460mm |
| 3B6386 | FT 530-30 | 381mm |
3B7808 |
FT 530-32 336/FT 530 32 329 | 282mm |
3B53032 |
FT 530-32 -60717 | 282mm |
3B7800 |
FT 530-32 333/FT 530-32 325 |
