FT530-35720 HINO 0336233000 Rear MS713 MS715 Rubber Air Spring Without Metal Parts

FT530-35720 HINO 0336233000 Rear MS713 MS715 Rubber Air Spring Without Metal Parts

Cross Reference

Specifications and Detailed Technical Parameters: 0336233000

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : /
Top Cover Plate Screw (Nut) :/
Bottom Cover Plate Screw (Nut) Tooth :/
Screw Center Distance of Bottom Cover Plate : /

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : /

Cover Plate

Top Cover Plate Diameter: /
Bottom Cover Plate Diameter: /

Bumper block / Buffer block

With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

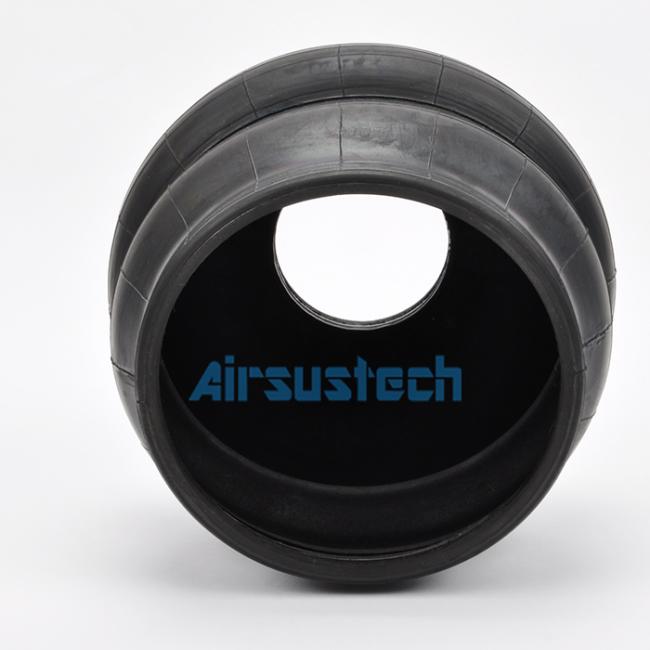

The related picture of 0336233000

Application

The 0336233000 can be used in truck. It can reduce many safety hazards, as follows.

1. To prevent rollover: if the truck cornered at too fast a speed, because of the effect of inertia, there may be the danger of rollover, but the air spring intelligent control system can prejudge the bridge according to the road conditions, to a certain extent, to ensure that the vehicle smoothly through the curve.

2. Maximum protection of goods: the bridge air bag has a very good shock absorption, not only can protect the vehicle accessories, but also can protect the goods. The large truck with shock absorption airbag is installed, the smoothness of the driving process is very high, which can not only reduce the damage rate in the process of cargo transportation, but also transport some high-grade goods.

3. More convenient unloading: truck bridge airbag can adjust the height of the container according to the need when loading and unloading goods, reduce the height of the container to a certain extent, improve the efficiency of cargo loading and unloading.

Precautions during installation and use of air springs

1. Working air pressure

In order to avoid early damage of the air spring due to too low or too high air pressure, the working air pressure of the air spring should be within a strict range.

If the air spring is sealed with a hoop, the general inflation pressure should not be lower than 0.07MPa. If the rim clamping or pressure self-sealing is used, the inflation pressure should not be lower than 0.1MPa

Generally, the design pressure of the air spring is one-third of the burst pressure. For occasions with a good working environment, the design pressure of the air spring can reach one-half of the burst pressure.

2. Working itinerary

The allowable stroke of the air spring is listed in the performance parameter table of each air spring. In order to ensure the service life of the air spring, the air spring is not allowed to exceed the allowable stroke of the air spring during use.

3. Installation conditions

When installing the air spring, ensure that there is enough installation space. The air spring must not rub against any part, and it must not interfere with any part during use, and must prevent the impact of hard objects.

4. Conditions of use

In use, the rubber air spring should be kept as dry, cool and ventilated as possible, avoid exposure to the sun, prohibit contact with acids, alkalis, oils and other organic lubricants, and keep away from heat sources.

5. Replace or replace

When replacing the air spring, it should be replaced according to its model and specification. If the same model and specification of the air spring cannot be obtained, the air spring with the same performance should be selected for replacement.
