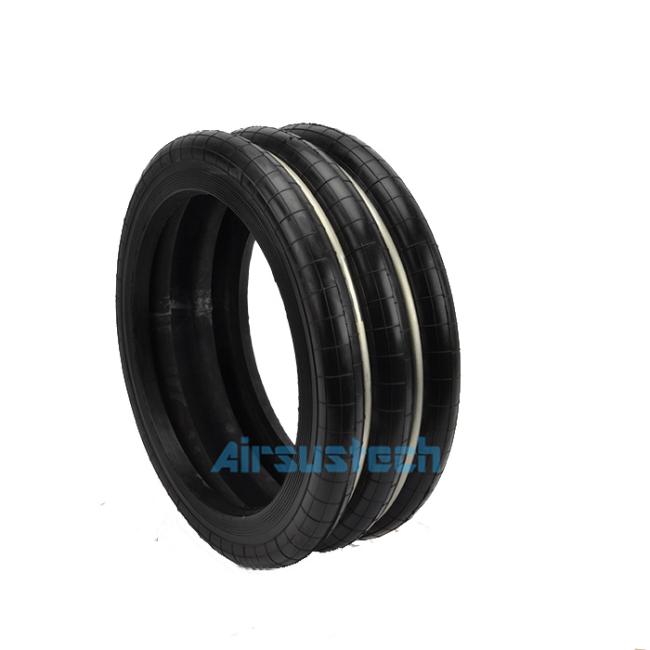

S-200-3R Yokohama Air Suspension Spring Replacement Rubber Triple Convoluted

Price Negotiable

Price: Negotiable

MOQ: 3Pieces

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

S-200-3R Yokohama Air Suspension Spring Replacement Rubber Triple Convoluted

OEM Cross reference:

AIRSUSTECH Part No.: F-200-3

YOKOHAMA S-200-3R

YOKOHAMA S 200 3R

YOKOHAMA S-200-3

YOKOHAMA S 200 3

YOKOHAMA S200-3R

YOKOHAMA S200-3

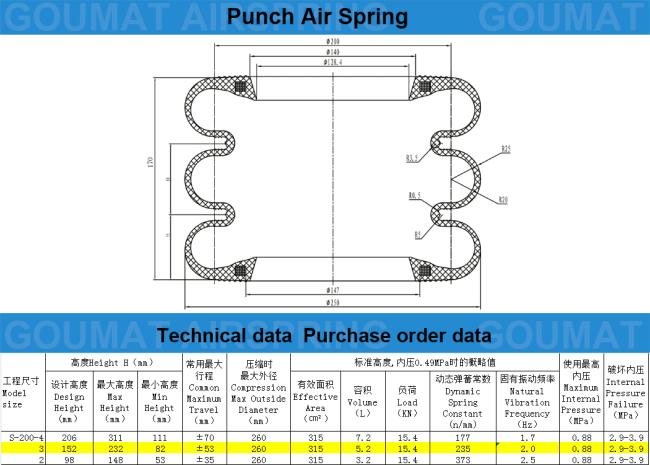

Specifications and Detailed Technical Parameters: F-200-3

Height H(mm)

Design Height: 152mm

Max. Height: 232mm

Min Height: 82mm

Common Maximum Travel(mm): ±53mm

Compression Max. Outside Diameter (mm): 260mm

Standard height, approximate value at 0.49MPA internal pressure

Efective Area(cm²): 315

Volume(L): 5.2

Load (KN):15.4

Dynamic Spring Constant(n/mm): 235

Natural Vibration Frequence(Hz): 2.0

Maximum Internal Pressure (MPA): 0.88

Internal Pressure Failure(MPA): 2.9-3.9

Other types:

GUOMAT NO.	Yokohama Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Yokohama Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-600-1	S-600-1	72	122	40	±30	700
F-600-2	S-600-2	102	172	57	±45	660
F-600-3	S-600-3	160	270	90	±68	660
F-600-4	S-600-4	218	363	123	±90	660
F-600-5	S-600-5	276	456	156	±113	660
F-550-2	S-550-2	102	172	50	±45	610
F-550-3	S-550-3	160	270	90	±68	610
F-500-2	S-500-2	102	172	57	±45	560
F-500-3	S-500-3	160	270	90	±68	560
F-500-4	S-500-4	218	363	123	±90	560
F-500-5	S-500-5	276	456	156	±113	560
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510
F-400-2	S-400-2	102	167	57	±45	460
F-400-3	S-400-3	160	260	90	±68	460
F-400-4	S-400-4	218	348	123	±90	460
F-400-5	S-400-5	276	435	156	±113	460
F-350-1	S-350-1	72	117	40	±30	450
F-350-2	S-350-2	102	160	55	±42	410
F-350-3	S-350-3	160	250	85	±65	410
F-350-4	S-350-4	218	336	118	±85	410
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340
F-220-4	S-220-4	206	311	111	±80	280
F-220-3	S-220-3	152	232	82	±60	280
F-220-2	S-220-2	98	148	53	±40	280
F-200-2	S-200-2	98	148	53	±35	260
F-200-4	S-200-4	206	311	111	±70	260
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220
F-120-4	S-120-4	206	306	111	±70	180
F-120-3	S-120-3	152	227	82	±53	180
F-120-2	S-120-2	98	148	53	±35	180
F-100-4	S-100-4	206	296	121	±60	160
F-90-3	S-90-3	152	222	87	±45	160
F-90-2	S-90-2	98	143	58	±30	160
F-90-1	S-90-1	76	106	46	±30	125
