FD 331-26 541 Contitech Air Spring Rubber Pneumatic Parts AIRSUSTECH Air Ride Springs

Contitech FD 331-26 541 Double Convoluted Rubber Pneumatic Parts AIRSUSTECH Air Ride Springs


OEM NO.


Contitech:FD331-26 541

Contitech:FD331 26 541

Contitech:FD 331-26 541

Contitech:FD 331 26 541

Continental: FD 331-26 541

2B7550 specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 1/2-13UNC; 3/4-16UNC
    Top plate screw center distance : 157mm
2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC
    Bottom plate screw center distance : 157 mm
2. Air hole/air inlet/air fitting air hole/air inlet: 1/4-18NPT
    The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm
4. Rubber bellows Max. diameter: 343mm
5. Min height: 104mm
    Max. height: 363mm
6. Bumper block/bumper block with bumper
7. Belt loop/Girdle ring/girdle hoop: with one piece of belt loop/girdle hoop/girdle ring


Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 5.1kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 240mm, minimum 220mm

Pneumatic application-static characteristic values

Force F[KN]

Rubber air springs are divided into three categories according to shape: capsule type, membrane type and sleeve type. According to the sealing structure, it is divided into four categories: pressure self-sealing type, rim clamping type, hoop sealing type and hybrid type.

This one is a bladder air spring. It can be used in many industrial equipment, such as presses, commercial washing machines, etc.

During transportation and storage, it should be kept as dry and cool as possible. At the same time, avoid exposure to the sun, prohibit contact with acids, alkalis, oils and other organic solvents, and keep away from heat sources.

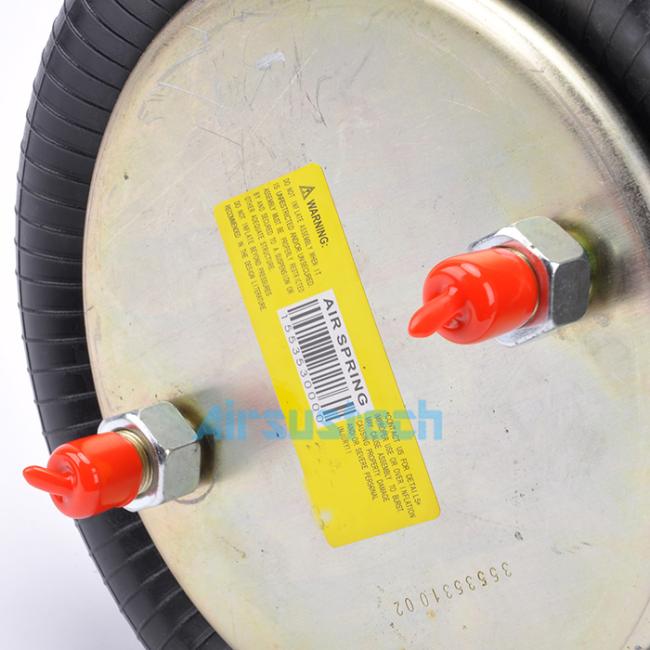

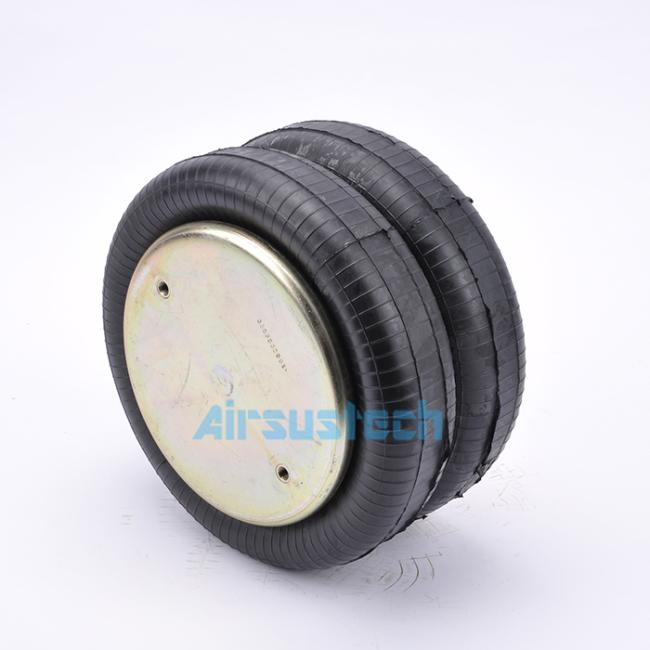

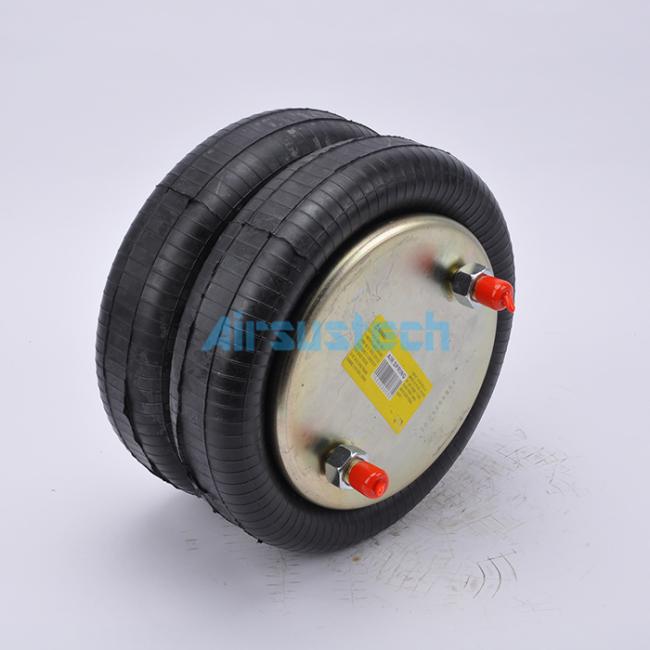

The related picture of 2B7550 air spring/pneumatic cylinder
