Industrial Equipment Shock Absorber Triangle 6334 4431 Rubber Convoluted Air Spring Actuator

OEM NO.

Triangle 6334

Triangle 4431

Goodyear 3B12-300

Goodyear 3B12 300

Goodyear 3B12300

Goodyear 578933100

Contitech FT 330-29 431

Contitech FT 330 29 431

Contitech FT330-29 431

Contitech FT330 29 431

Contitech FT 33029431

Firestone W01-358-8008

Firestone W01 358 8008

Firestone W013588008

Firestone WO1-358-8008

Firestone WO1 358 8008

Firestone WO13588008

Specifications and Detailed Technical Parameters: 3B8008

Nut/blind nut

Top plate screw (nut) teeth: 3/8-16UNC, 3/4-16UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 140 mm

The screw center distance of the bottom cover plate: 157.5 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The air inlet is combined with the screw nut

Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Bumper block/bumper block

Without bumper block

Belt loop/Girdle ring/Girdle hoop

Two pieces of belt loop/girdle hoop/girdle ring

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Packing Details

Model no.: 3B8008

Net weight: 6.45

Gross weight: 7.03

Box weight: 0.58

Box size: 33*33*22cm

Packing quantity: 1

About Air Spring

Rubber air springs reduce noise pollution. Therefore, the application of air springs is more and more extensive. When designing the air spring, the following matters should be paid attention to in order to have a perfect structure.

When designing, the height, bearing capacity and spring constant of the spring are irrelevant, and can be selected in a wide range. By changing the working pressure of the air and increasing the volume of the additional cavity, the stiffness of the air spring can be reduced, thereby designing a soft spring.

The stiffness of the air spring varies with the load, so the vibration isolation effect of the system is similar to that of air. The high control system is adopted to keep the working height of the air spring under any load, which is beneficial to engineering applications.

When the equipment is installed on the equipment layer, roof or ground, the requirements for shock absorbers are very high, and air spring shock absorbers should be used. The same air spring can have different load capacities by adjusting the working pressure.

The air spring has excellent vibration isolation characteristics such as high and low frequency vibration, impact, solid sound and so on. These characteristics are very important, so it has a good use in the industrial field, and can be used for targeted shock absorption and noise reduction. Guomat specializes in producing high-quality rubber air springs. If you have any needs, please feel free to contact us.

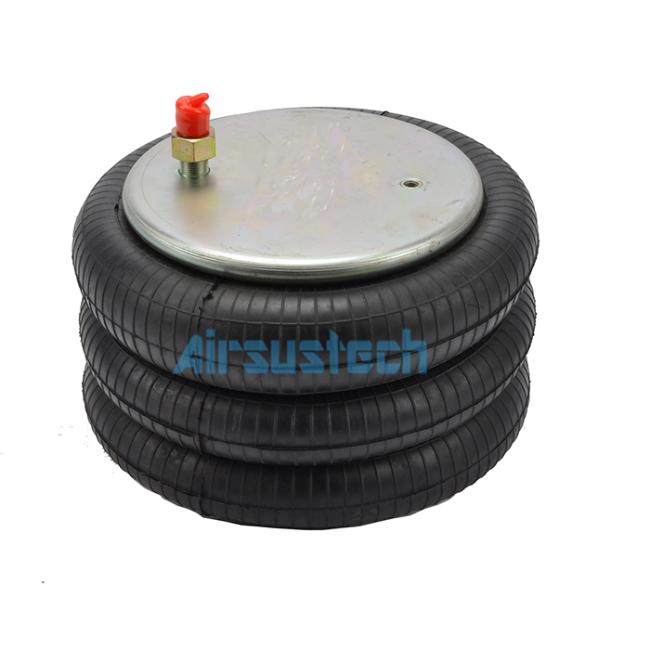

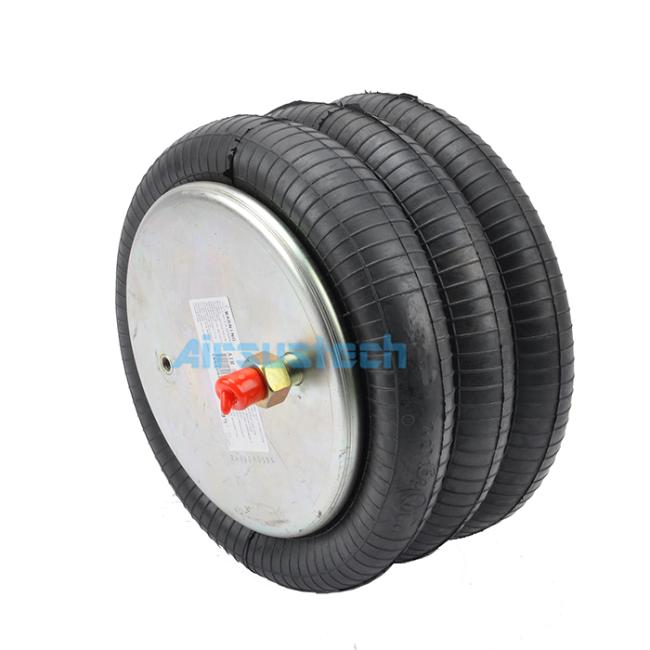

The related picture of 3B8008
