1/4NPT Air Spring Shocks 3B12-310 578933100 Goodyear Bagged Suspension 3 Convoluted Rubber
3B12-310 578933100 Goodyear Bagged Air Suspension 3 Convoluted Rubber Spring Shocks
Cross Reference
Goodyear 3B12-310
Goodyear 3B12310
Goodyear 3B12 310
Goodyear 578933100
Contitech FT 330-29 466
Contitech FT 330 29 466
Contitech FT330-29 466
Contitech FT330 29 466
Firestone W01-358-8027
Firestone W01 358 8027
Firestone W013588027
Firestone 38
Firestone W013588029
Firestone W01 358 8029
Firestone W01-358-8029
Triangle 4466
Triangle 6334
Arvin Meritor 200117
Suspensions 200117
Silent Drive
Histeer
Specifications and Detailed Technical Parameters: 3B8027
Nut/blind nut
Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 157.5 mm
The screw center distance of the bottom cover plate: 157.5 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
The air hole is combined with screw nut.
Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 117mm to 460mm
Bumper block/bumper block
With bumper block
Belt loop/Girdle hoop/Girdle ring
Two piece of belt loop/girdle hoop/girdle ring
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Other types of triple convoluted Goodyear air spring replacement we could offer
3B12-328 3B12 328
Features
Rubber air springs have nonlinear characteristics;
The stiffness of the rubber air spring varies with the load;
The rubber air spring can obtain different bearing capacity by adjusting the internal pressure;
The rubber air spring is light in weight and has a long service life;
The rubber air spring has good high frequency vibration isolation and sound insulation performance;
The rubber air spring requires little installation space and is easy to replace

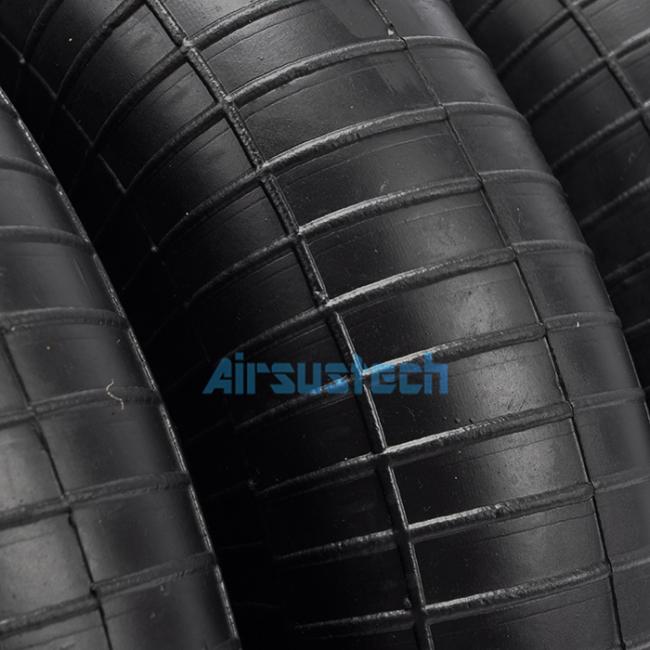

The related picture of 3B8027
