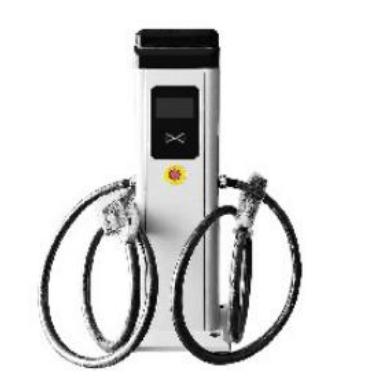

GB/T 22kW OCPP2.0 Type 2 AC Charging Station IP54 7'' Touch Screen
Price:
USD
MOQ:
1pc
Delivery Time:
20-30days
Brand:
ANS
Product Description
AC Charging Station Commercial Charging OCPP 4G with Type 1 Type 2 GB/T Control Pilot
- TYP1, TPY2 and GB AC control pilot charging standard compliant
- OCPP integration
- Remote diagnostics, repair and updates
- Easily connect to Charging points Management System
- Compact design
| Item Number | 3P-22K-AC3-32A | 3P-11K-A3-32A | |
| Power input | Input rating | 400V 3ph 32A max. | 400V 3ph 32A max. |
| Number of phase / wire | 3ph / L1, L2, L3, PE | ||
| Power output | Output power | Type1: 7kW Type2: 22kW |
Type1: 7kW Type2: 11kW |
| GB:22KW | GB:7KW | ||
|
Remark: only one gun is available in a charging session. or 3 plugs charge at same time |
|||
| Output rating | 400V AC | 400V AC | |
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault | |
| User interface & control | Display | 7” touch screen | |
| Support language | English (Other languages available upon request) | ||
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee | ||
| Charging interface | Type1 / Type2 / GB | ||
| User authentication | Paypal and (or) NFC card | ||
| Communication | Network interface | Ethernet (standard); Wi-Fi, 4G (optional) | |
| Open Charge Point Protocal | OCPP1.6 / OCPP2.0 | ||
| Environmental | Operating temperature | minus 20 ℃to+55℃ (derating when over 55℃) | |
| Storage temperature | -40 ℃to+70℃ | ||
| Humidity | < 95% relative humidity, non-condensing | ||
| Altitude | Up to 2000 m (6000 feet) | ||
| Mechanical | Ingress protection | IP54 | |
| Enclosure Protection againstExternal Mechanical Impacts | IK10 according to IEC 62262 | ||
| Cooling | Forced air | ||
| Charging cable length | 5m | ||
| Dimension (W*D*H) mm | 340*400*1400 | 340*400*1400 | |
| Weight | 80kg | 80kg | |
| Regulation | Certificate / Compliance | CE / EN 61851-1/-23 | |
