5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System
Technical specification
| Battery Type | LiFePo4 (Lithium Iron Phosphate Battery) |
| Norminal Voltage (V) | 51.2V |
| Norminal Energy (KWh) | 5.12KWH |
| Design Capacity | 100Ah |
| Design Life | 15 Years |
Product Size
| Size | 600*510*173MM |
| Weight | 51KG |
Technical Parameters
| Cycle life | > 6000 times 80% DOD |
| Operating Voltage Range | 40V- 58.4V |
| Charging Voltage | DC 58.4V |
| Charging/Discharging Current (A) | Same Port 100A |
| Internal Resistance | <30mΩ |
BMS Parameters
| Self-Consumption | <2W |
| Rated Voltage | 51.2V |
| Balance Current | 30-65 (mA) |
| Communication Method | CAN / RS485 / RS232 |
| Information Storage | 500 Strip |
| Charging limiting Current | can be set through upper computer |
Ambient Temperature
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | 10°C ~ 50°C |
| Humidity | 15% ~ 75% |
Warranty
| Warranty time | 5 Years |
The features of 5KWh Solar Panels Battery 51.2v 100Ah
- Long cycle life
- No memory effect
- High energy density
- Pollution-free
- High discharge rate
- Light weight

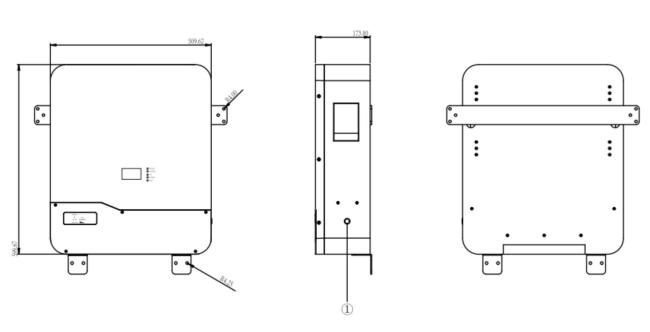

Product Size of 5KWh Solar Panels Battery 51.2v 100Ah

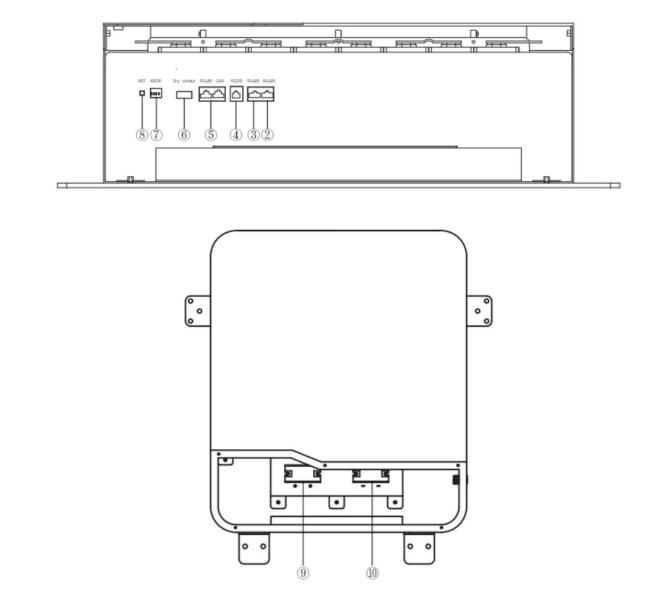

Product Interface:
Paralles Connection of Batteries
Connect the positive pole with positive pole in parallel, and the negative pole with negative pole in parallel, as shown in the figure below.

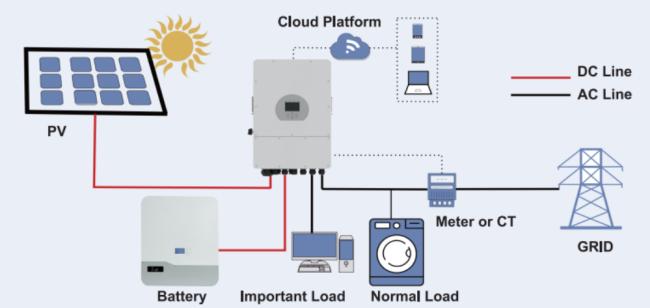

Solution Diagram
Compatible with these Inverter brands of Energy Storage Battery 5Kwh LiFePo4 48V 100Ah battery
We have 10KW model 51.2V or 48V 200Ah in choose too, freely inquiry our sales for details
the Shipping Method of ES-BOX2 Energy Storage Battery 5Kwh LiFePo4 48V 100Ah battery
You can choose DHL, Fedex UPS to door if it is urgent
You can choose By sea to door for sample and not urgent
For batch order you can choose by sea to port
We have MSDS, UN38.3 test report for kinds shipping ways.
