48v 600ah Lithium Power Wall Battery 30kw For Home Energy Storage
48v 600ah Lithium Power Wall Battery 30kw For Home Energy Storage
Lithium Battery 48v 600Ah 30kw Lifepo4 Wall Battery For Home Energy Storage
Descriptions of Lithium Battery 48v 600Ah 30kw Lifepo4 Wall Battery
| Battery Type | LiFePo4 (Lithium Iron Phosphate Battery) |
| Norminal Voltage (V) | 51.2V |
| Norminal Energy (KWh) | 30.60KWH |
| Design Capacity | 400Ah |
| Design Life | 15 Years |
Product Size
| Size | LWH; 510*250*1200MM |
| Weight | 256KG |
Technical Parameters
| Cycle life | > 6000 times 80% DOD |
| Operating Voltage Range | 40V- 58.4V |
| Charging Voltage | DC 58.4V |
| Charging/Discharging Current (A) | Same Port 200A |
| Internal Resistance | <30mΩ |
BMS Parameters
| Self-Consumption | <2W |
| Rated Voltage | 51.2V |
| Balance Current | 30-65 (mA) |
| Communication Method | CAN / RS485 / RS232 |
| Information Storage | 500 Strip |
| Charging limiting Current | can be set through upper computer |
Ambient Temperature
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | 10°C ~ 50°C |
| Humidity | 15% ~ 75% |
Warranty
| Warranty time | 5 Years |

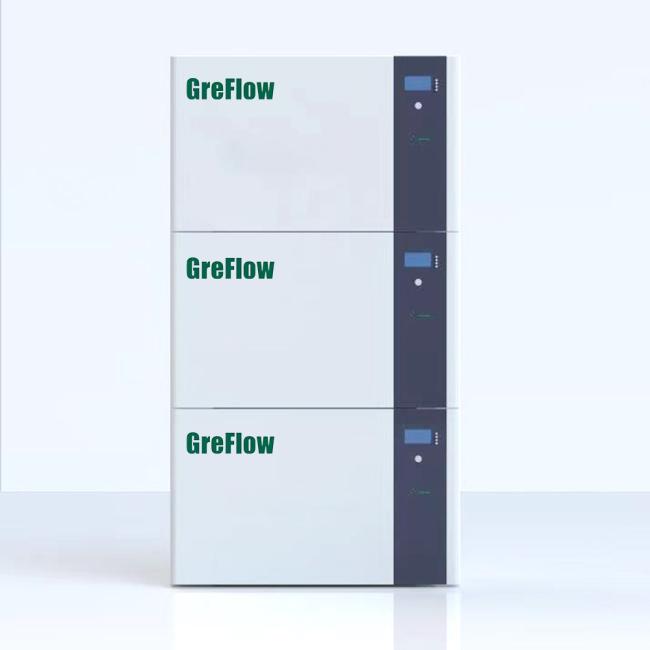

Image display of Lithium Battery 48v 600Ah 30kw Lifepo4 Wall Battery
If you need inverter with our storage battery, we can supply
Compatible Inverter brands of Smart Energy Storage Off-Grid Solar Battery Storage
1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.
max support 15pcs connection in parallels
Solution Diagram

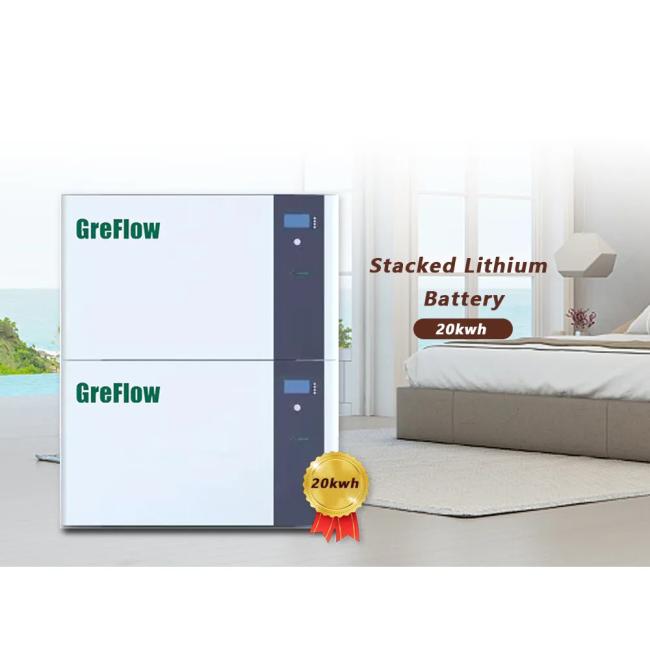

We also have 20Kwh Wall standby energy storage battery for your choice
Inquiry our sales for details
the Shipping Method
You can choose DHL, Fedex UPS to door if it is urgent
You can choose By sea to door for sample and not urgent
For batch order you can choose by sea to port
We have MSDS, UN38.3 test report for kinds shipping ways.
