3.2 V Lithium Phosphate Battery 280Ah 320Ah 3.2V Lithium Phosphate Cell
3.2 V Lithium Phosphate Battery 280Ah 320Ah 3.2V Lithium Phosphate Cell
We can offer you accessories like bus bars , screws and washers .The bus bar is made of Tin-planting pure copper , the screws and washers are made of SUS304 stainless steel .
We test and match each batteries before packing . We make sure the whole lots batteries are close in voltage and internal resistance .
We offer a full power solution of Lithium and LiFePO4 battery pack + charger + BMS.
Features of - 3.2 V Lithium Phosphate Battery 280Ah 320Ah 3.2V Lithium Phosphate Cell
1. Long Life ,can cyclic charge and discharge 3000 times.
2. Capacity consistency,voltage consistency.
3. More safe than other power batteries.
4. No memory effect
5. Low self discharge rate
6. Environment friendly
7. Good safety characteristics
Specification - 3.2 V Lithium Phosphate Battery 280Ah 3.2V Lithium Phosphate Cell
| Item | Specification | |
| 1 | Chemistry | LiFePo4 |
| 2 | Nominal Capacity | 280Ah |
| 3 | Nominal Voltage | 3.2V |
| 4 | AC-impedance(1000Hz) | 0.24±0.05mΩ |
| 5 | Weight | 5.3KG |
| 6 | Dimension (mm) H*W*D | 220*73*175MM |
| 7 | Maximum Charge Current at Room Temperature | 1C (Continuous) |
| Charging Voltage | 3.65V | |
| 8 | Maximum Discharge Current at Room Temperature | 1C (Continuous) 3C (60s) |
| Discharge End Voltage | 2.5V(>0℃),2.0V(≤0℃) | |
| 9 | Max Operating Temperature Range | |
| Charge | 0℃ ~ 65℃ | |
| Discharge | -35℃ ~ 65℃ | |
| 10 | Optimal Operating Temperature Range | |
| Charge | 15℃ ~ 35℃ | |
| Discharge | 15℃ ~ 35℃ | |
| 11 | Storage Temperature | |
| 1 month | -30℃~ 45℃ | |
| 6 months | -20℃ ~ 35°C | |
| *Cells should be stored at 20%SOC-40%SOC or the voltage is between 2.55V and 3.65V. | ||

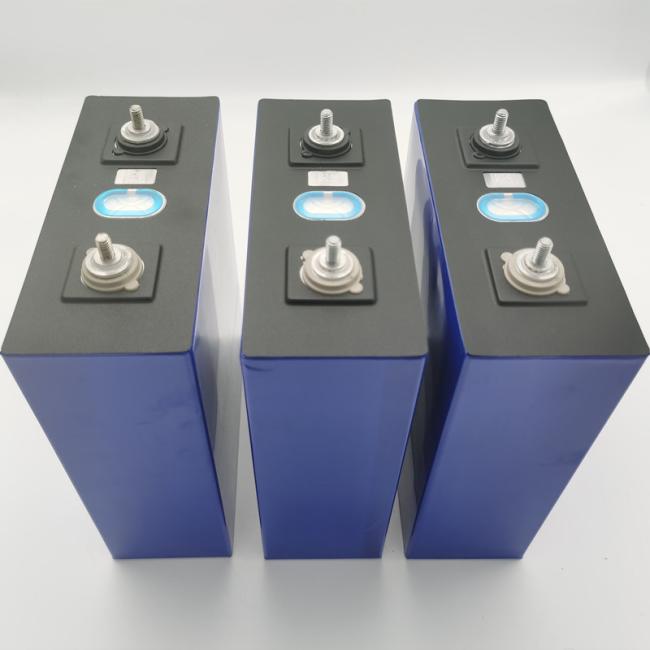

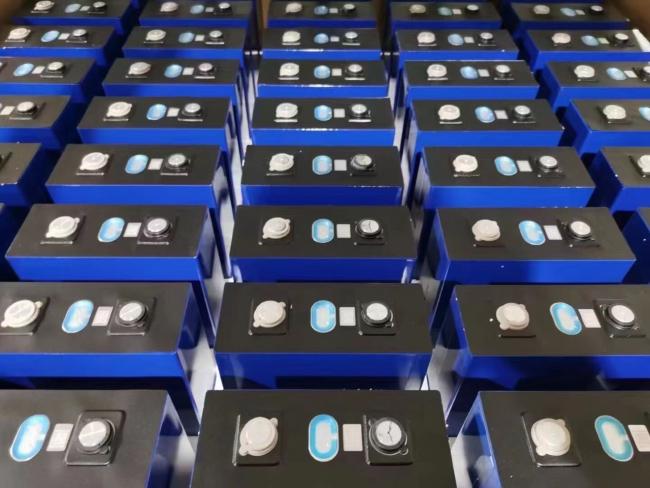

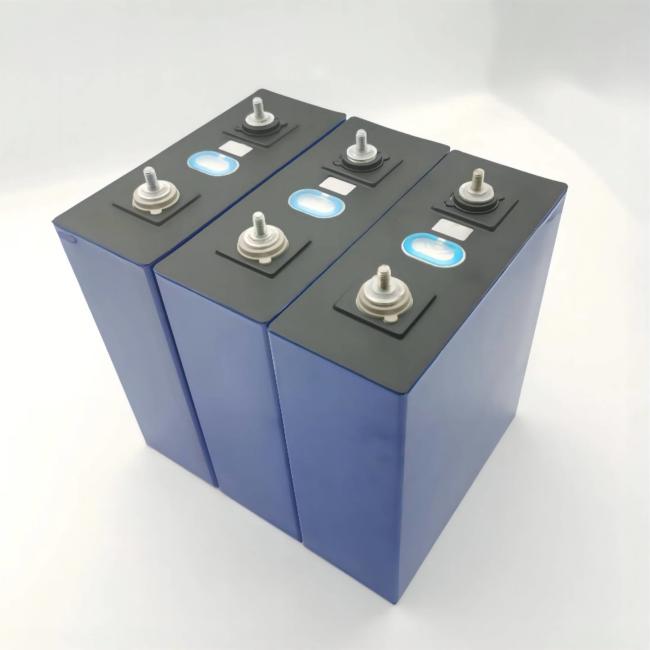

The Detail images of 3.2V 280Ah lithium phosphate battery cell

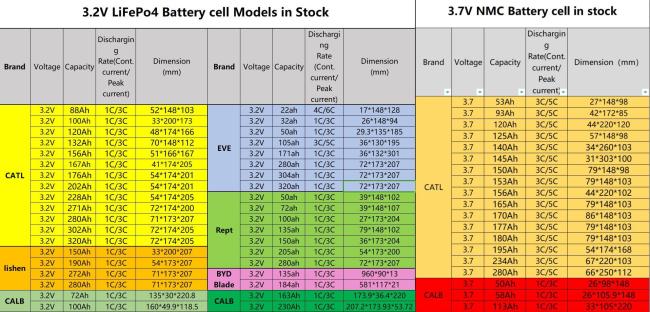

Below is the model list of CATL li iron phosphate battery lithium phosphate cell
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Application of CATL li iron phosphate battery lithium phosphate cell
solar energy storage, solar power system, UPS supply,engine starting , electric motorcycle scooter golf trolley/carts.

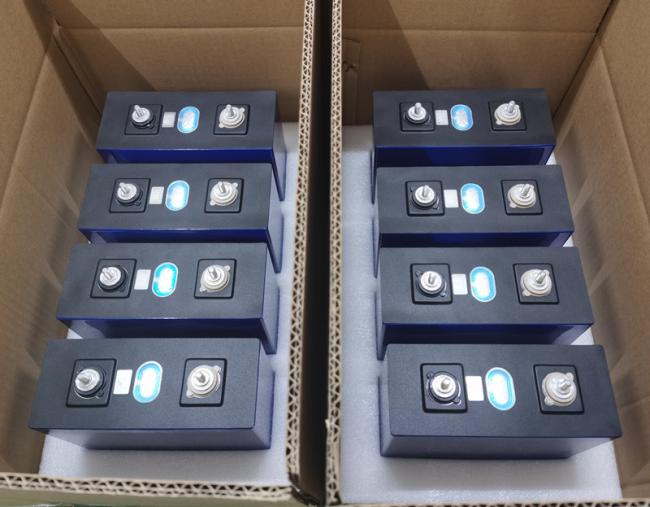

Packing & Shipping
Packing:
Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.
Delivery:
Any way of transportation are available.
For samples:delivery within 1-2 days.
For OEM: Within 100k pcs, 10-15 days; 100-500k pcs, 15-20 days; over 500k pcs, 25-30 days
Why choose us?
1. We are a supplier with 10 years' experiences. All our items come with high quality and good after-sale service.
3. Stable Quality – Come from superior material supplier and perfect quality control system.
4. Competitive price than any other suppliers.
5. 7/24 service for you, all the question will be dealed within 24 hours.
